Matrix mvBlueFOX3

EventFrameEndFrameID 0 INT64_MAX 1 -
Returns the
unique Identifier
of the Frame (or
image) that
generated the
Frame End Event.
21.2 mvBlueFOX3-1012d (1.2 Mpix [1280 x 960])
21.2.1 Introduction
The sensor features one acquisition mode:
rolling shutter.•
With the rolling shutter the lines are exposed for the same duration, but at a slightly different
point in time:

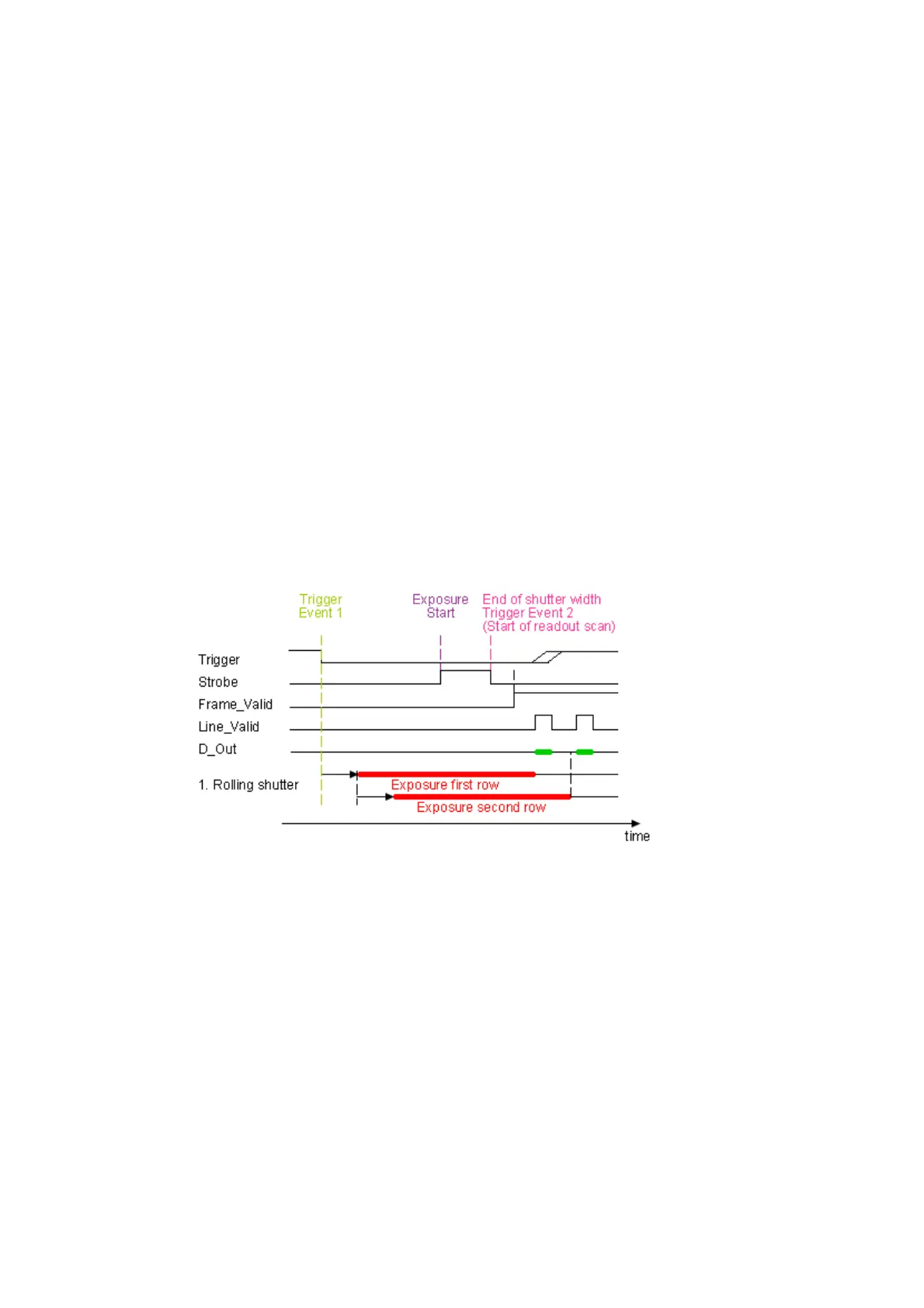

Figure 1: Rolling shutter
Note:
Moving objects together with a rolling shutter can cause a shear in moving objects.
Feature Description
Manufacturer Aptina
Sensor name MT9M034
Max. frames per
second
45
Device Structure CMOS image sensor
SNR 37.7 dB
21 Appendix A.2 CMOS specific camera / sensor data
1342
