Matrix mvBlueFOX3 User Manual

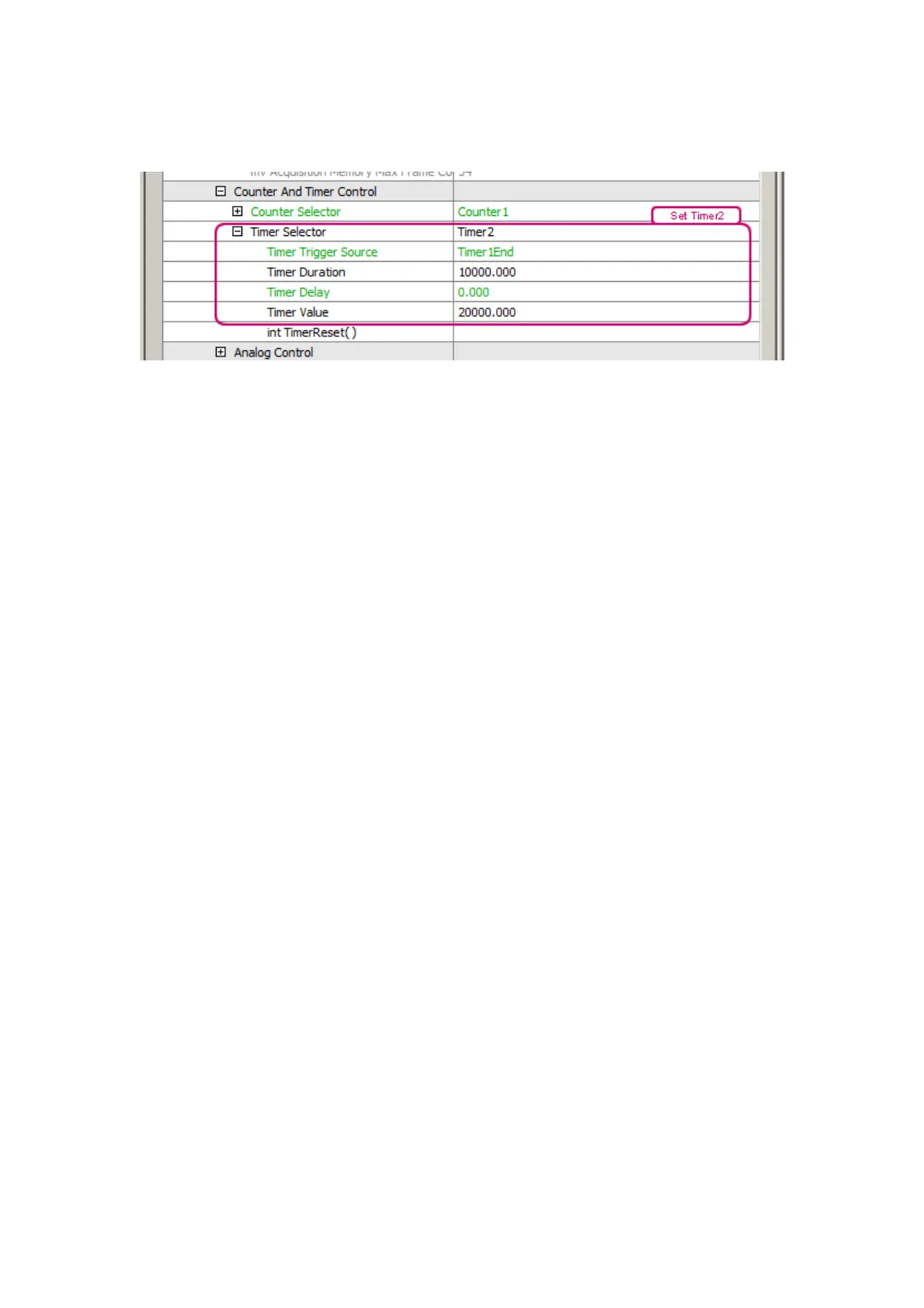

Setting of Timer2 (purple on the master camera):
Figure 3: wxPropView - Setting of Timer2
2.
Assigning timer to DigOut (orange box in Figure 2).3.
18.4.3 Outputting a pulse at every other external trigger
To do this, please follow these steps:
Switch "Trigger Mode" to "On" and1.
Select the "Trigger Source", e.g. "Line5".2.
Use "Counter1" and count the number of input trigger by setting the "Counter Duration" to
"2".
3.
Afterwards, start "Timer1" at the end of "Counter1":4.
18 Use cases
210
