8.2.2 Characteristics of the digital inputs
8.2.2.1 Electrical characteristics
Delay

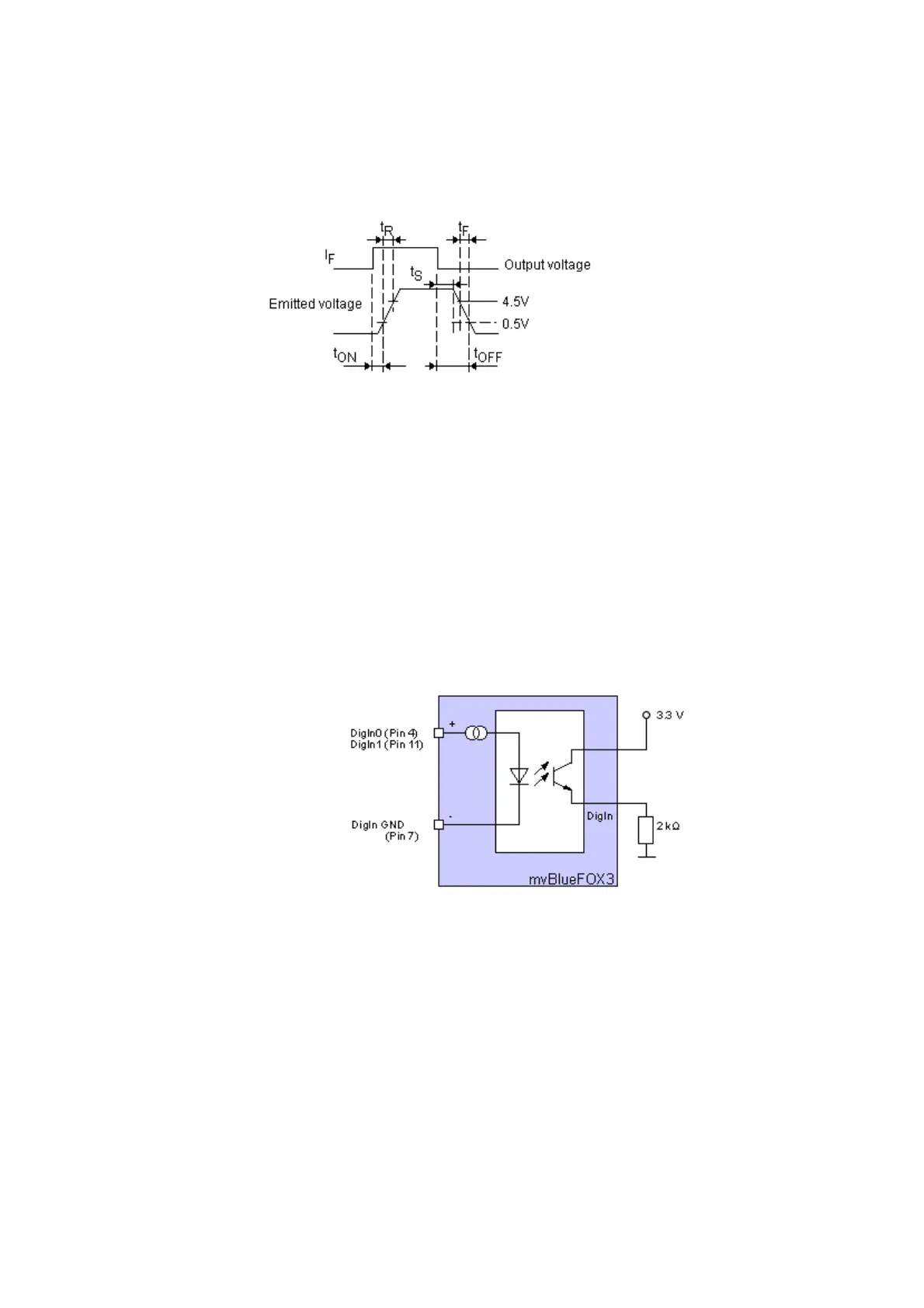

Figure 14: Input switching times
Standard
Notes
High level +3 to +24V (max. 30V)
Low level 0V (min. -30V) to +0.7V
Threshold
(Low --> High /
High --> Low)
2V +- 1V
I
max
5mA
Figure 15: DigIn mvBlueFOX3
8.2.2.2 Switching characteristics
Characteristics Symbol Test conditions Typ. Unit
Minimum trigger pulse width 5
us
Turn-On time t
ON
R
L
= 2 kOhm, V
CC
3V, I
C
= 2mA
3
Storage time t
S
12
Turn-Off time t
OFF
20
Rise time t
r
2
Fall time t
f
7
