Thickness 1.0 mm
Material Solaris S 306
Characteristics T
avg
> 80% > 780 nm
AOI = 0 degrees
Protective foil on both sides
Without antireflexion
Without bezel

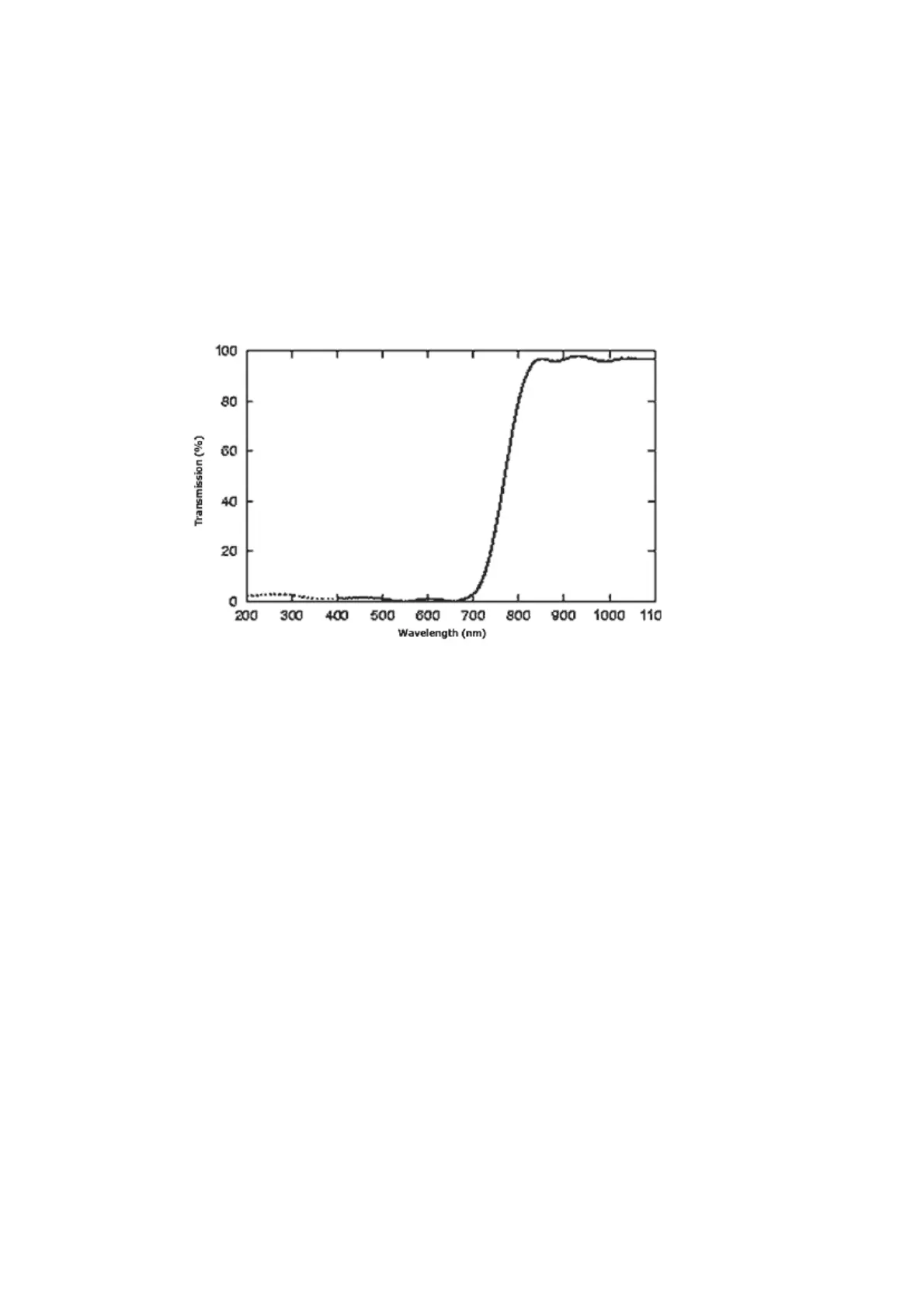

Figure 2: FILTER DL-CUT 28x1 wavelengths and transmission diagram
10.3 Glass filter
It is also possible to choose the glass filter Glass-28x1 with following characteristics:
Technical data
Glass thickness 1.0 mm
Material Borofloat without coating
ground with protection chamfer
Surface quality polished on both sides P4
Surface irregularity 5/3x0.06 on both sides
10.4 Lenses
MATRIX VISION offers a high-quality selection of lenses. If you have questions about our
accessories, please contact our sales team: info@matrix-vision.com.
10 Filters and Lenses
68
