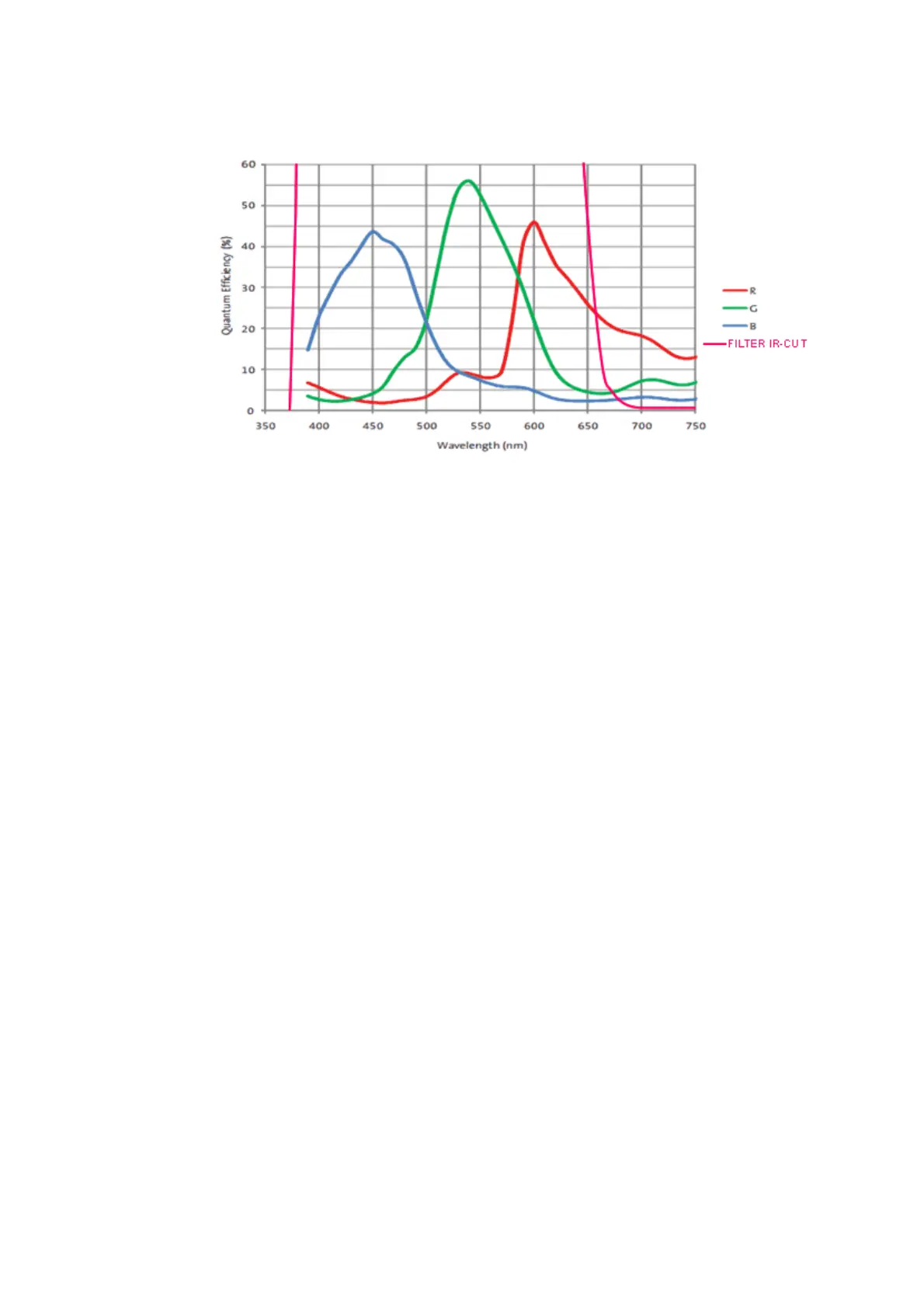

Figure 3: Spectral sensitivity mvBlueFOX3-1140C
21.8.3 Timings
Name Value
PixelClock 96.88
VerticalBlank 15
21.8.3.1 Free running mode
To calculate the maximum frames per second (FPS
max
) in free running mode you will need following
formula:
(ImageHeight * ( 4702 )) + (VerticalBlank * 4702 )
FrameTime = ------------ ------------
PixelClock PixelClock
1000000
FPS_max = ----------------
FrameTime
21.8.3.2 Snapshot mode
To calculate the maximum frames per second (FPS
max
) in snapshot mode you will need following
formula:
(ImageHeight * ( 4702 )) + (VerticalBlank * 4702 )
FrameTime = ------------ ------------
PixelClock PixelClock
1000000
FPS_max = ----------------
ExposureTime
