Matrix mvBlueFOX3

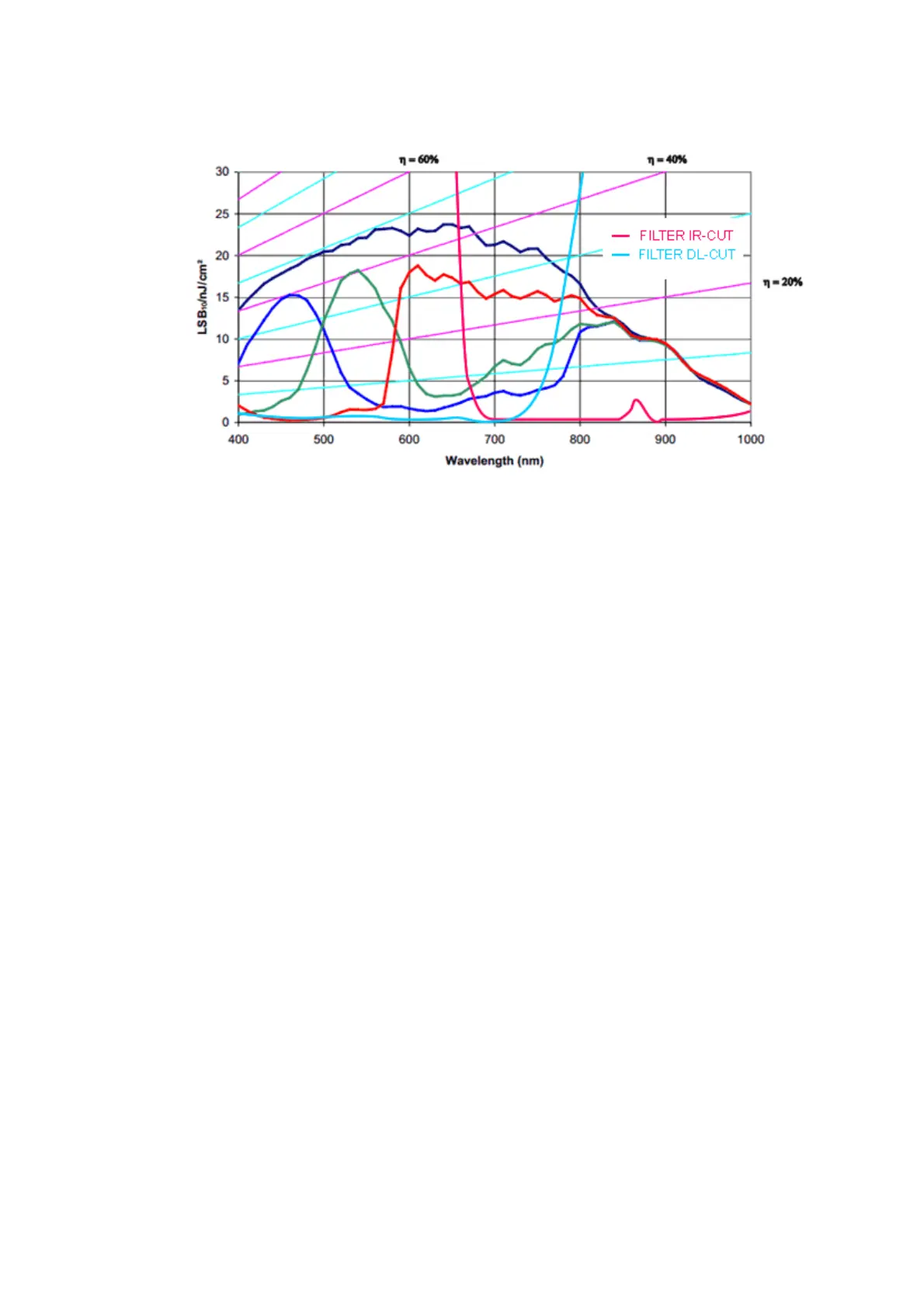

Figure 1: mvBlueFOX3-1020a
21.5.3 Timings
Name Value
InternalLineLength 984
InternalADCClock 143.75
21.5.3.1 Free running mode
To calculate the maximum frames per second (FPS
max
) in free running mode you will need following
formula:
2 ImageHeight + 10
ReadOutTime = InternalLineLength * ---------------- * (-----------------)
InternalADCClock 1000
If exposure time is lower than read out time:
1000
FPS_max = -------------
ReadOutTime
If exposure time is greater than read out time:
1000
FPS_max = --------------
ExposureTime
21.5.3.2 Snapshot mode
To calculate the maximum frames per second (FPS
max
) in snapshot mode you will need following
formula:
21 Appendix A.2 CMOS specific camera / sensor data
1671
