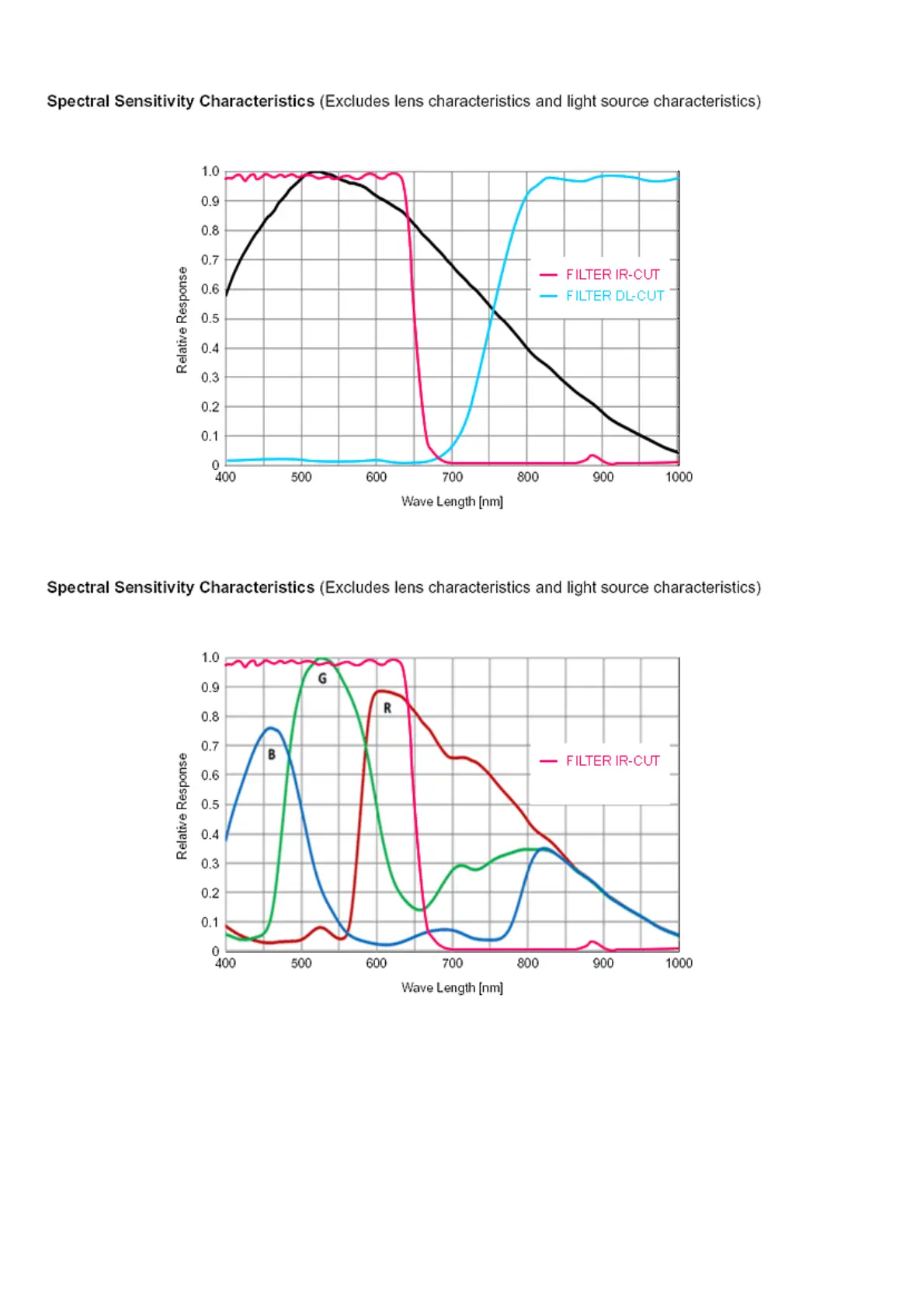

Figure 1: Spectral sensitivity mvBlueFOX3-2024G

Figure 2: Spectral sensitivity mvBlueFOX3-2024C

20.1.3 Timings

Name Value

InternalLineLength 462

VerticalBlankLines 37
