Matrix mvBlueFOX3 User Manual

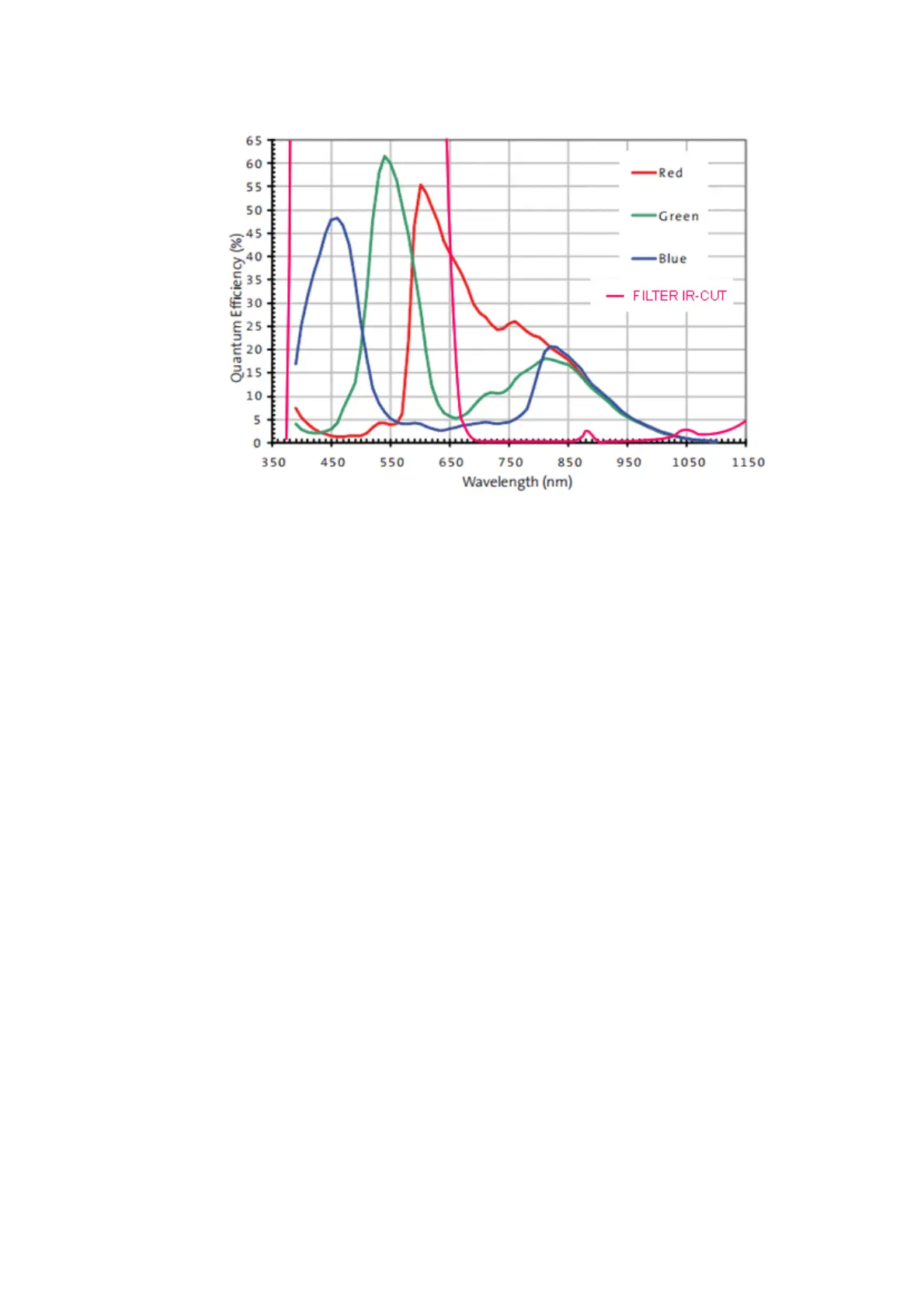

Figure 2: Spectral sensitivity mvBlueFOX3-1031C
21.6.3 Timings
Name Value
PixelClock 74.25
VerticalBlank 15
21.6.3.1 Free running mode
To calculate the maximum frames per second (FPS
max
) in free running mode you will need following
formula:
(ImageHeight * ( 2176 )) + (VerticalBlank * 2176 )
FrameTime = ------------ ------------
PixelClock PixelClock
1000000
FPS_max = ----------------
FrameTime
21.6.3.2 Snapshot mode
To calculate the maximum frames per second (FPS
max
) in snapshot mode you will need following
formula:
(ImageHeight * ( 2176 )) + (VerticalBlank * 2176 )
FrameTime = ------------ ------------
PixelClock PixelClock
1000000
FPS_max = ----------------
ExposureTime
