Matrix mvBlueFOX3

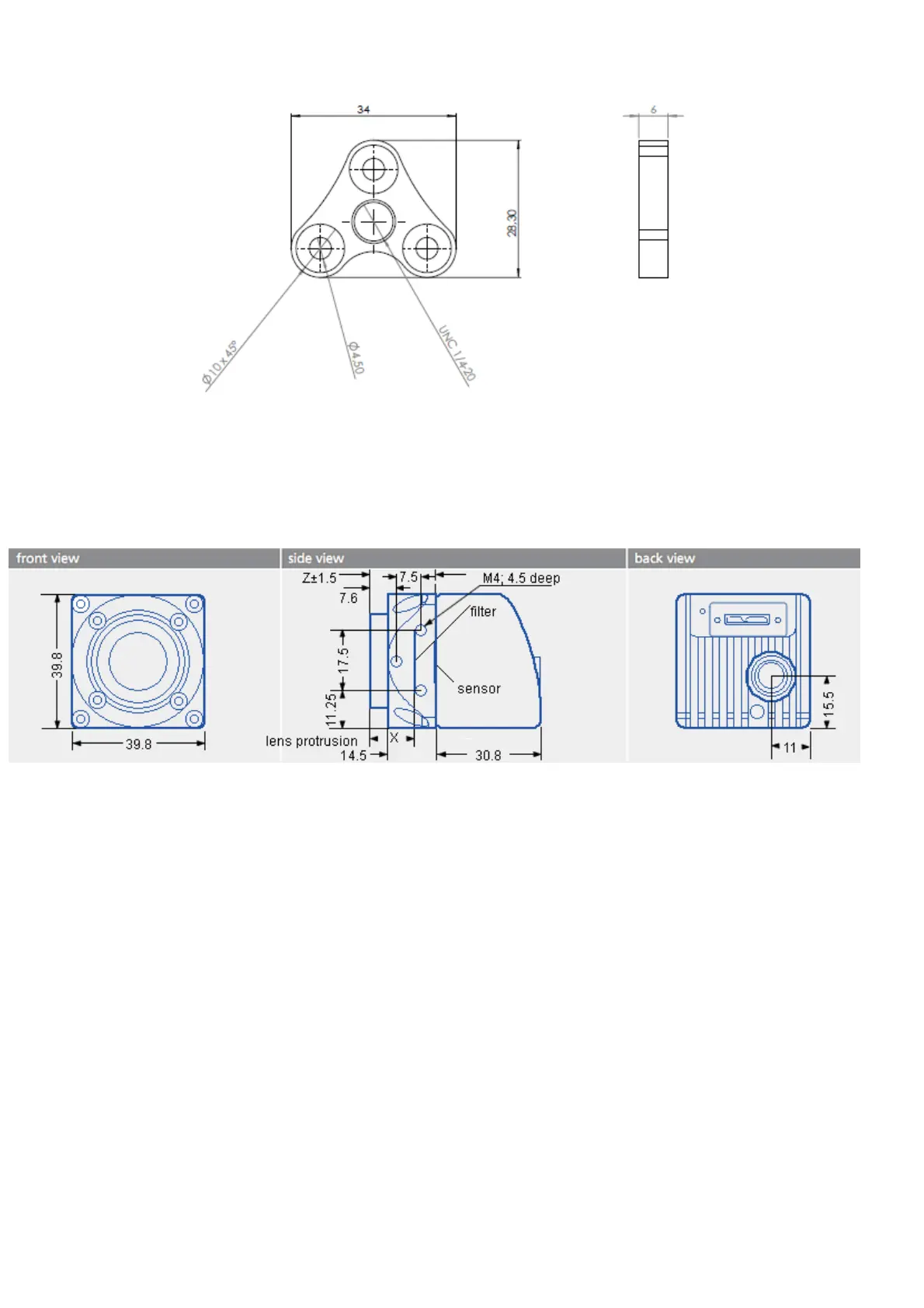

Figure 3: Dimensional drawing of tripod adapter
8.1.2 Standard model -2xxx
8.1.2.1 Option -1xxx (lensholder without back focus adjustment)
Figure 4: mvBlueFOX3-2xxx-1xxx dimensions and connectors
mvBlueFOX3-2xxx-1xxx
Size of body (w x h x
l)
39.8 x 39.8 x 50.9 mm
Lens protrusion
X
10.7
mm
with 1"
lenses
C-Mount CS-Mount
Z
17.526
mm (in
air)
12.5 mm
(in air)
Mounting holes
