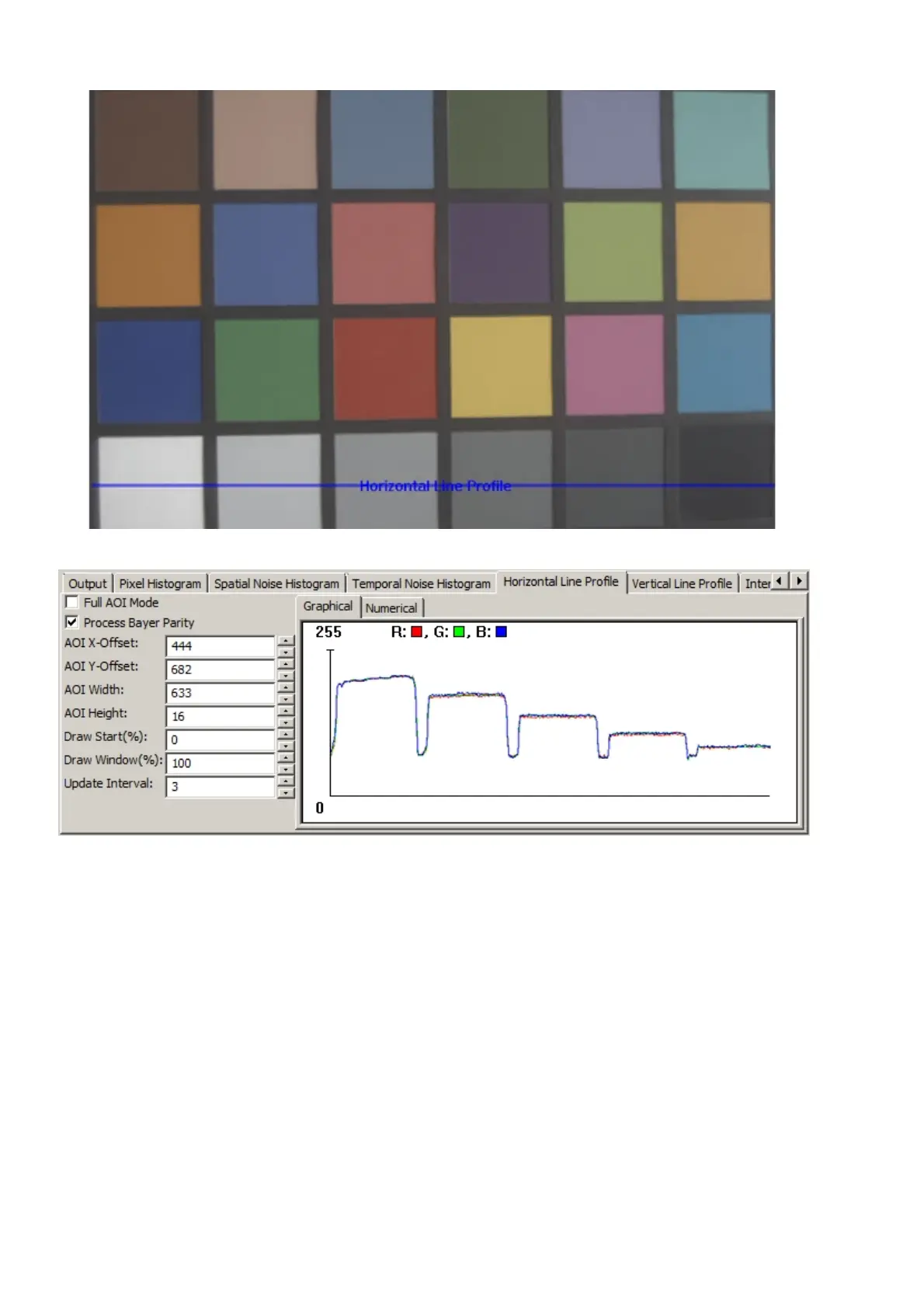

Figure 13: After white balance
Figure 14: Corresponding histogram after white balance
18.3.2.3 Step 3: Contrast
Still, black is more a darker gray. To optimize the contrast you can use
"Setting -> Base -> Camera
-> GenICam -> Analog Control -> Black Level Selector"
:
Select
"DigitalAll"
and
1.
adjust the
"Black Level"
value until black seems to be black.
2.
18 Use cases
186
193
