Matrix mvBlueFOX3 User Manual

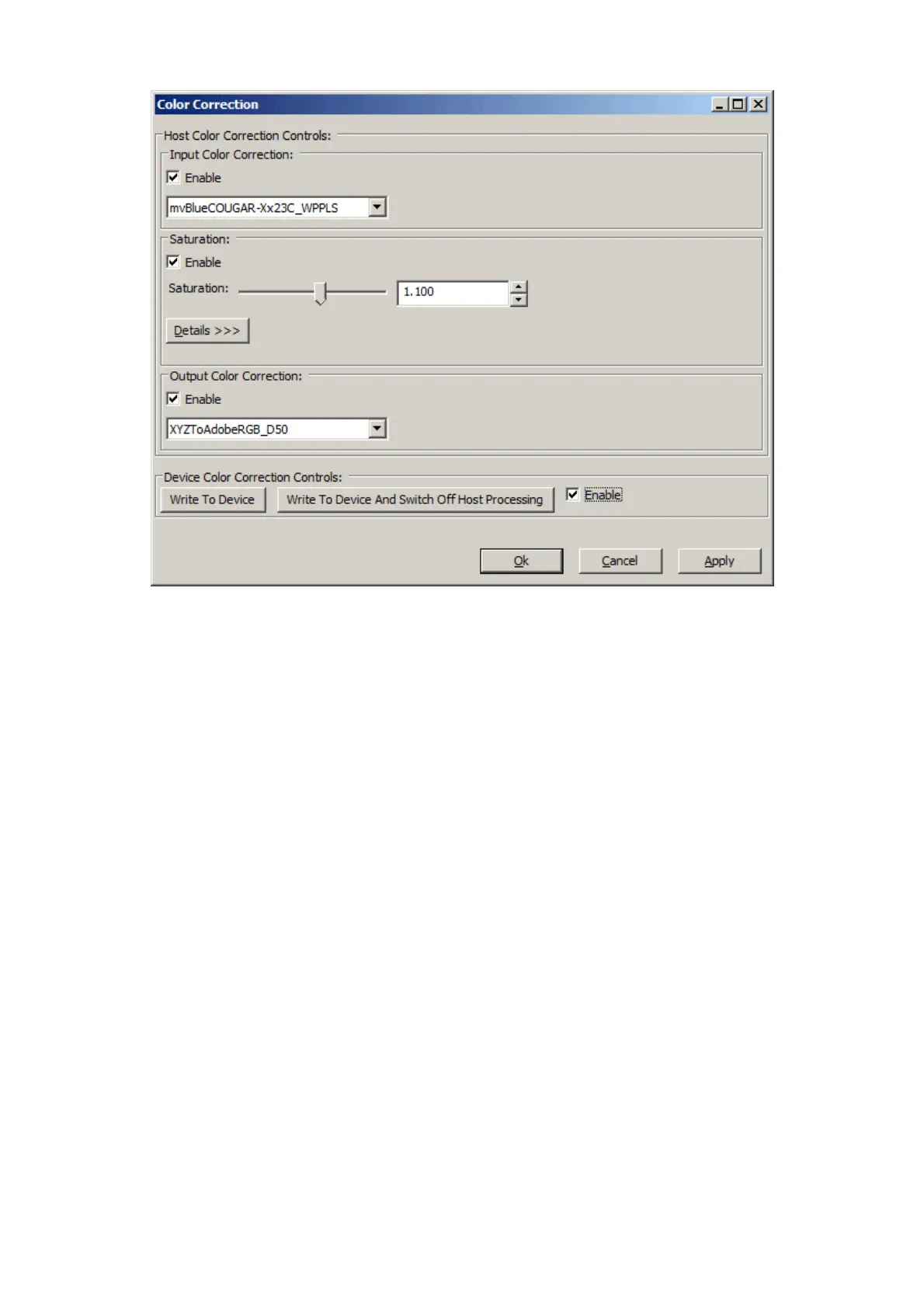

Figure 19: Saturation Via Color Transformation Control dialog
Afterwards, click on "Enable".4.
Since driver version 2.2.2, it is possible to set the special color correction matrices at
the input (sensor),1.
the output side (monitor) and2.
the saturation itself using this wizard.3.
5.
Select the specific input and output matrix and6.
click on "Enable".7.
As you can see, the correction is done by the host by default ("Host Color Correction
Controls"). However, you can decide, if the color correction is done by the device by clicking
on "Write To Device And Switch Off Host Processing". The wizard will take the settings
of the "Host Color Correction Controls" and will save it in the device.
8.
Finally, click on "Apply".9.
After the saturation, the image will look like this:
18 Use cases
