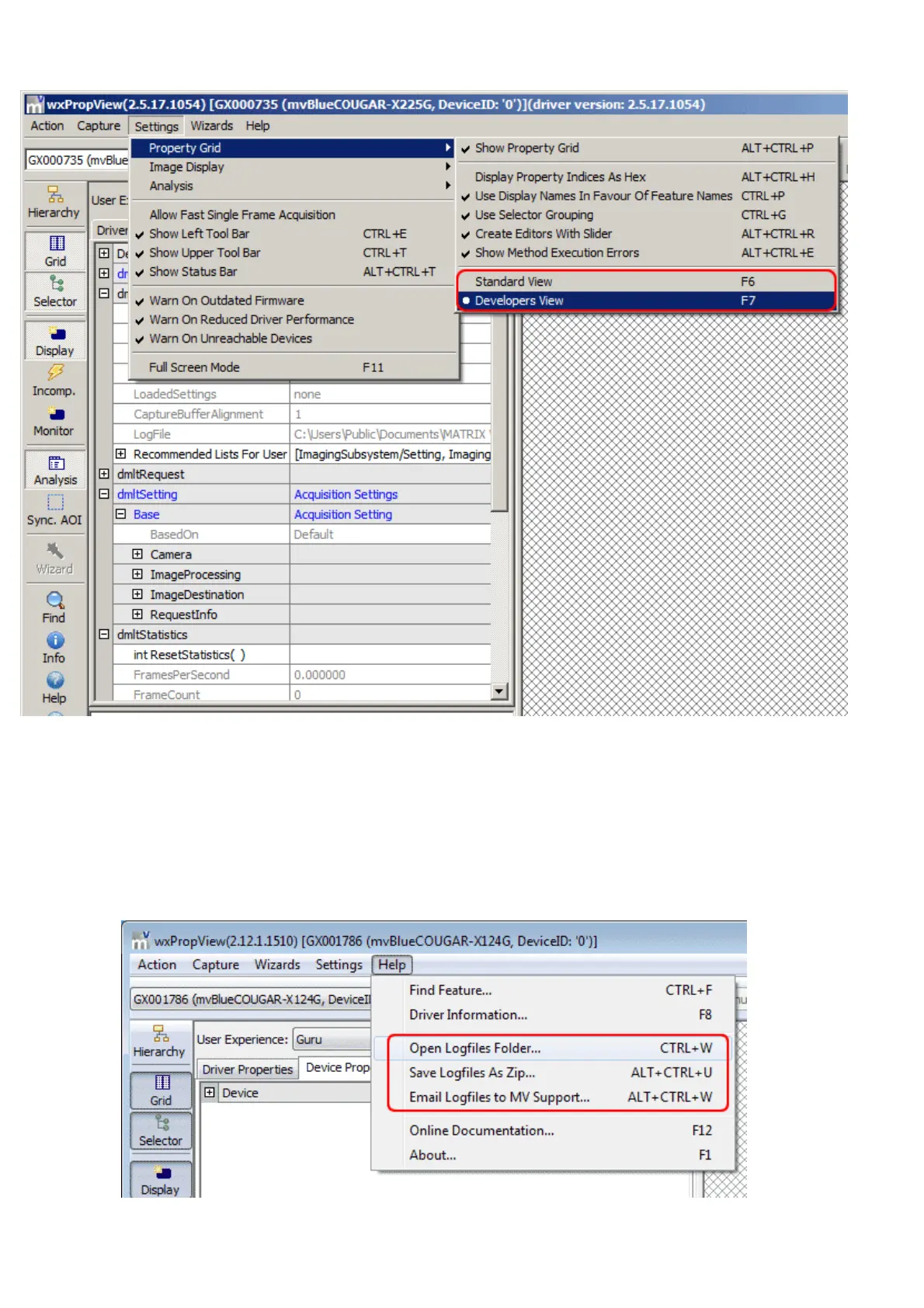

Figure 13: Developers View
11.1.1.10 Accessing log files
Since:
mvIMPACT Acquire 2.11.9
Using Windows, it is possible to access the log files generated by MATRIX VISION via the
Help
menu. Sending us the log files will speed up support cases.
11 GUI
84
91
93
