10. Check the tension again against the specifications for a “used” belt. See the following table:
Tension of USED belt
Position
X
Y
Displacement (mm)
7-10
10-14
“Used belt” refers to a belt that has been used with the engine running for 10 minutes or more.
If, during the inspection you notice that:

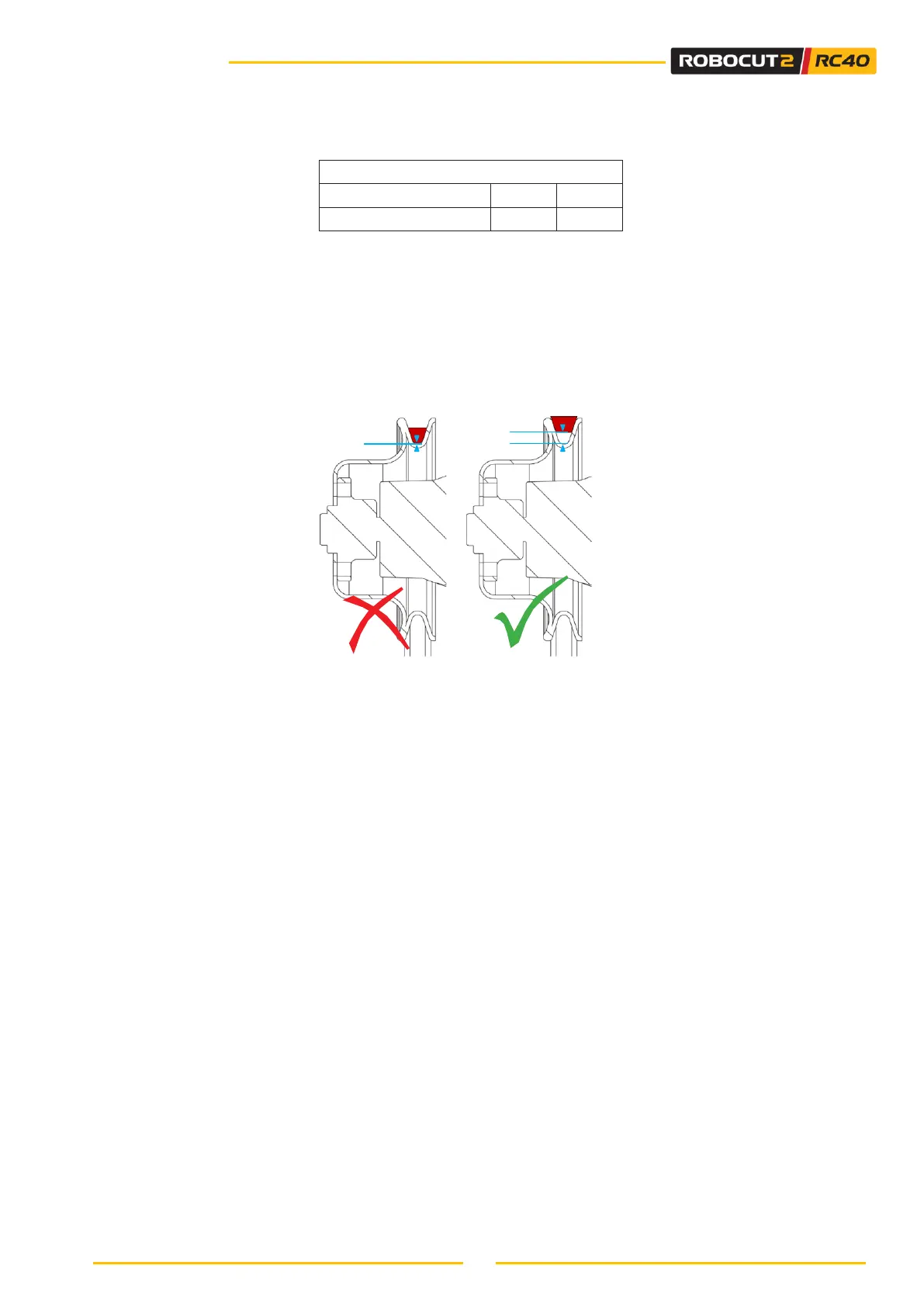

• there is not enough distance between the belt and the lower section of the pulley groove
(see diagrams below).
• the belt is cracked / split.
• the belt is oily.
If any of these conditions exist, replace the belt.
