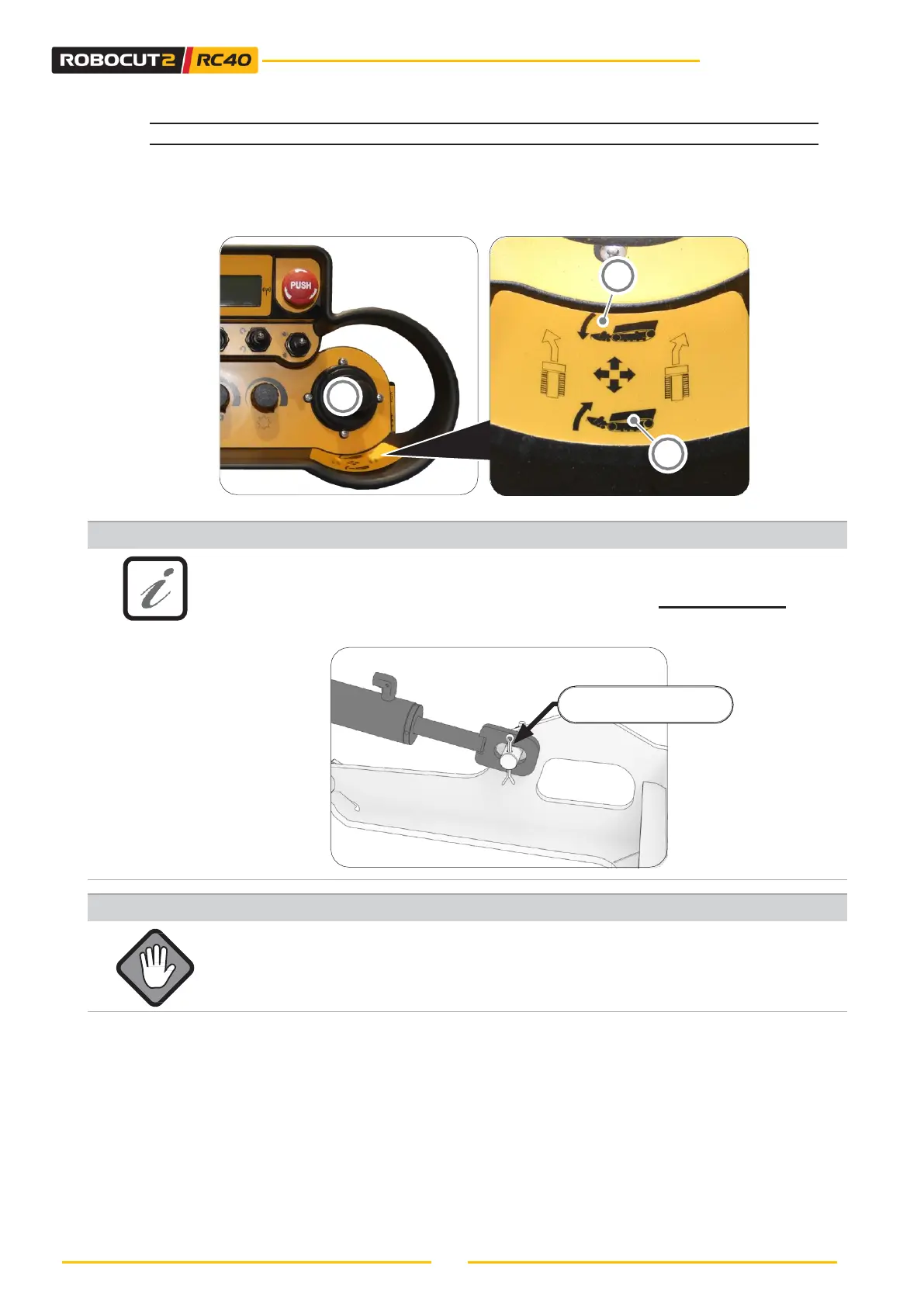

6.3.11 - LIFTING DEVICE
The lifting device is controlled by the right-hand proportional joystick (B).
• The lifting device is lowered by moving the right-hand proportional joystick (B) forwards.
• The lifting device is raised by moving the joystick (B2) backwards.
FLOATING FUNCTION
Lower the lifting device so that the tool is resting on the ground. Extend the
cylinder rod of the lifting device until the pin reaches the centre of the slot. In this
way, the tool will follow the contour of the ground more accurately.
CENTRE OF SLOT
• It is recommended not to adjust the lifting device when the equipment is in
operation to prevent cutting residues from being thrown long distances.
• It is recommended not to adjust the lifting device if you are on a slope with
the front of the machine facing uphill.
