6.3.12 - HOW TO HITCH UP A TOOL
• When coupling or uncoupling equipment, stand at the side of the machine
away from the equipment (at least one metre away).
• Before connecting the quick fit attachments, the equipment must be
connected to
the machine mechanically.
• The hydraulic connections must be carried out when the engine is switched off.
• Before making a hydraulic connection between machine and equipment,
clean the quick couplings of both parts with a cloth; this prevents the
hydraulic oil becoming contaminated with foreign matter.
• Firmly tighten the screw-on hydraulic couplings after hitching the equipment.
• Failure to tighten the quick couplings (even partially) can cause the hydraulic
motor of the tool to break and / or the oil seal to be ejected.
• Read and follow the instructions provided to ensure safety during the use of
the equipment moved by the PTO.
• Comply with the indications provided by the equipment manufacturer.
• Use the safety devices prescribed and make sure that they are in good
condition.
• Make sure that the equipment is correctly connected and that it does not hit
other parts of the machine when raised.
In some cases, the tool change causes the overall centre of gravity to shift which
could make the machine unstable. Contact McConnel about adding ballast to
correct the machine’s centre of gravity.

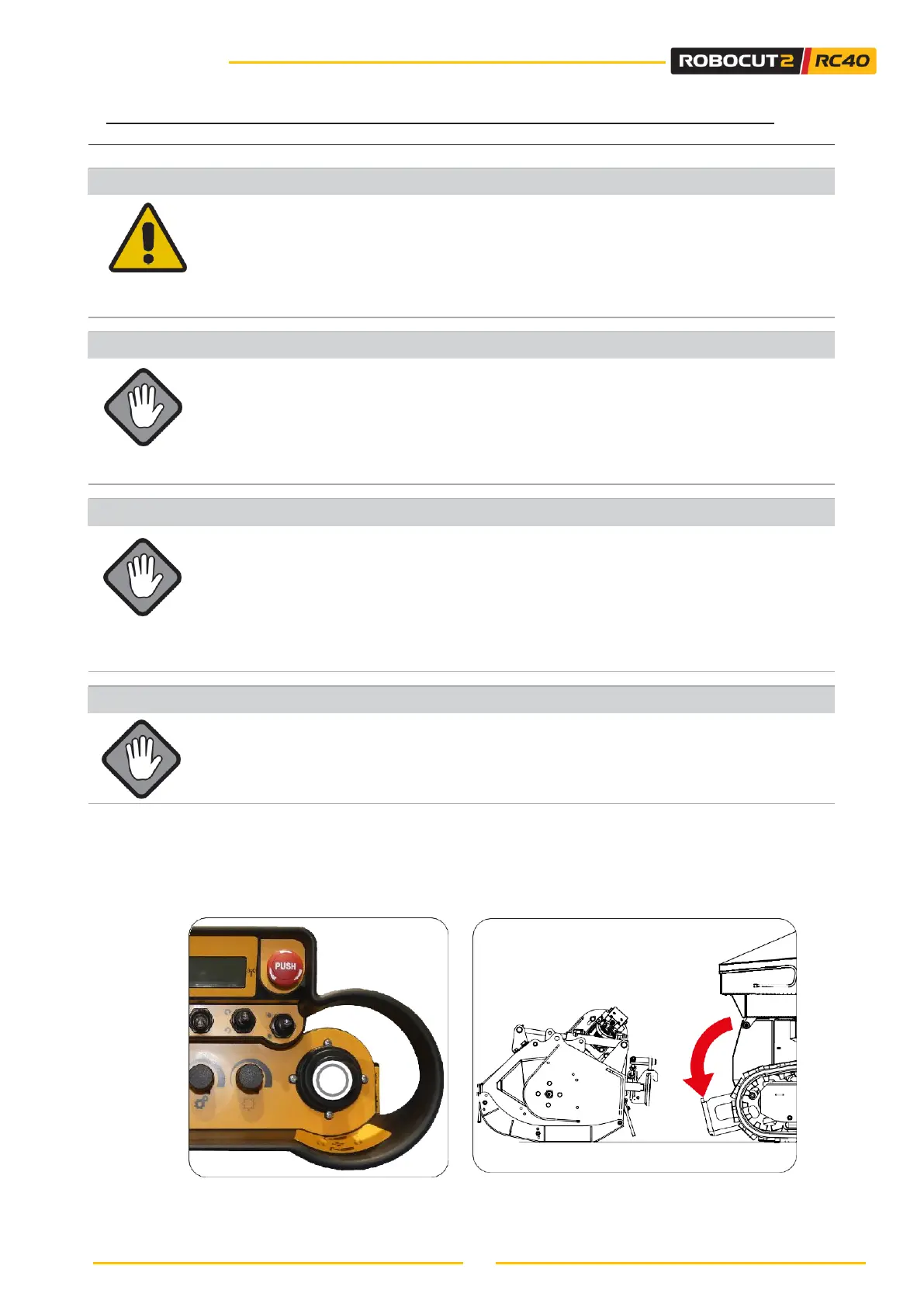

The machine is fitted with a lifting device on which the various approved tools can be attached.
To do this, follow the steps below:
1. Start the diesel engine and connect with the remote control (see section 6.3.2);
2. Lower the lifting device as far as possible using the right-hand joystick (B);
