McConnel ROBOCUT2 RC40 - 7.1.1 If the Machine Breaks Down

78
McCONNEL

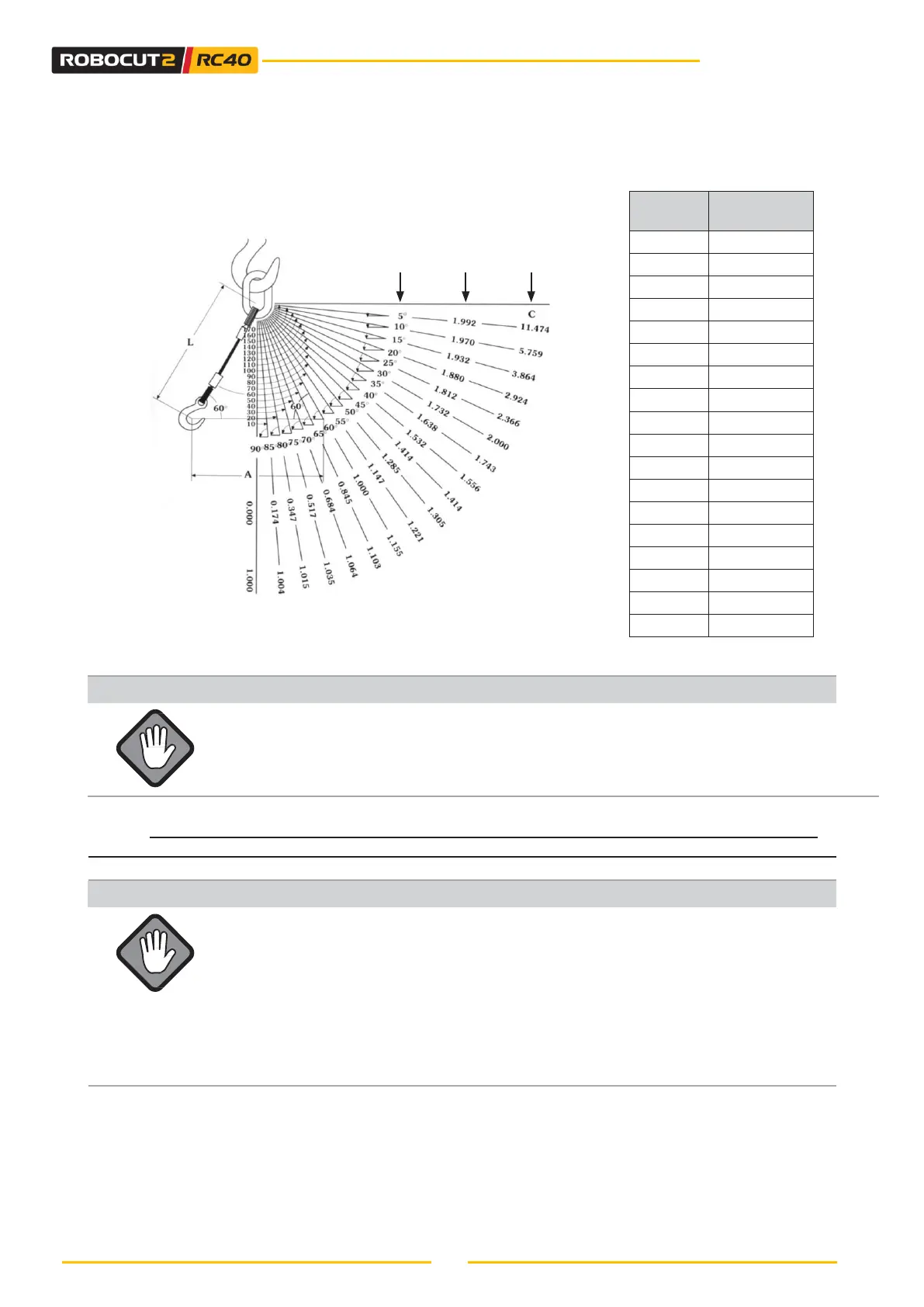

Note that when using ropes, slings, or chains to lift the machine, it is necessary to comply with
the diagram below, indicating the minimum pulling angles.
Rope
opening
angle
Rope angle
A/L
with horizon
Load
increase
factor
ATTENTION
Do not attach wire ropes or slings to the roll bar in order to lift the machine. This
element is not designed for lifting the machine.
7.1.1 - IF THE MACHINE BREAKS DOWN
ATTENTION
If the motor or the hydraulic system break down, do not tow the machine. Only lift
it:
• As seen in the previous section, lift the machine at the lifting points, using
suitable ropes or chains;
• Do not attach wire ropes or slings to the roll bar in order to lift the machine.
This element is not designed for lifting the machine.
• If equipment is attached to the machine, it must be disconnected and lifted at
a later stage (refer to the equipment manual for lifting instructions).
Angle at
the top
Load increase
factor
0°
1
10°
1.004
20°
1.015
30°
1.035
40°
1.064
50°
1.103
60°
1.155
70°
1.221
80°
1.305
90°
1.414
100°
1.556
110°
1.743
120°
2.000
130°
2.336
140°
2.924
150°
3.864
160°
5.759
170°
11.474
