McConnel ROBOCUT2 RC40 - Transmitter Operations; 6.2.3 Transmitter Description

36
McCONNEL
6.2.3 - TRANSMITTER DESCRIPTION

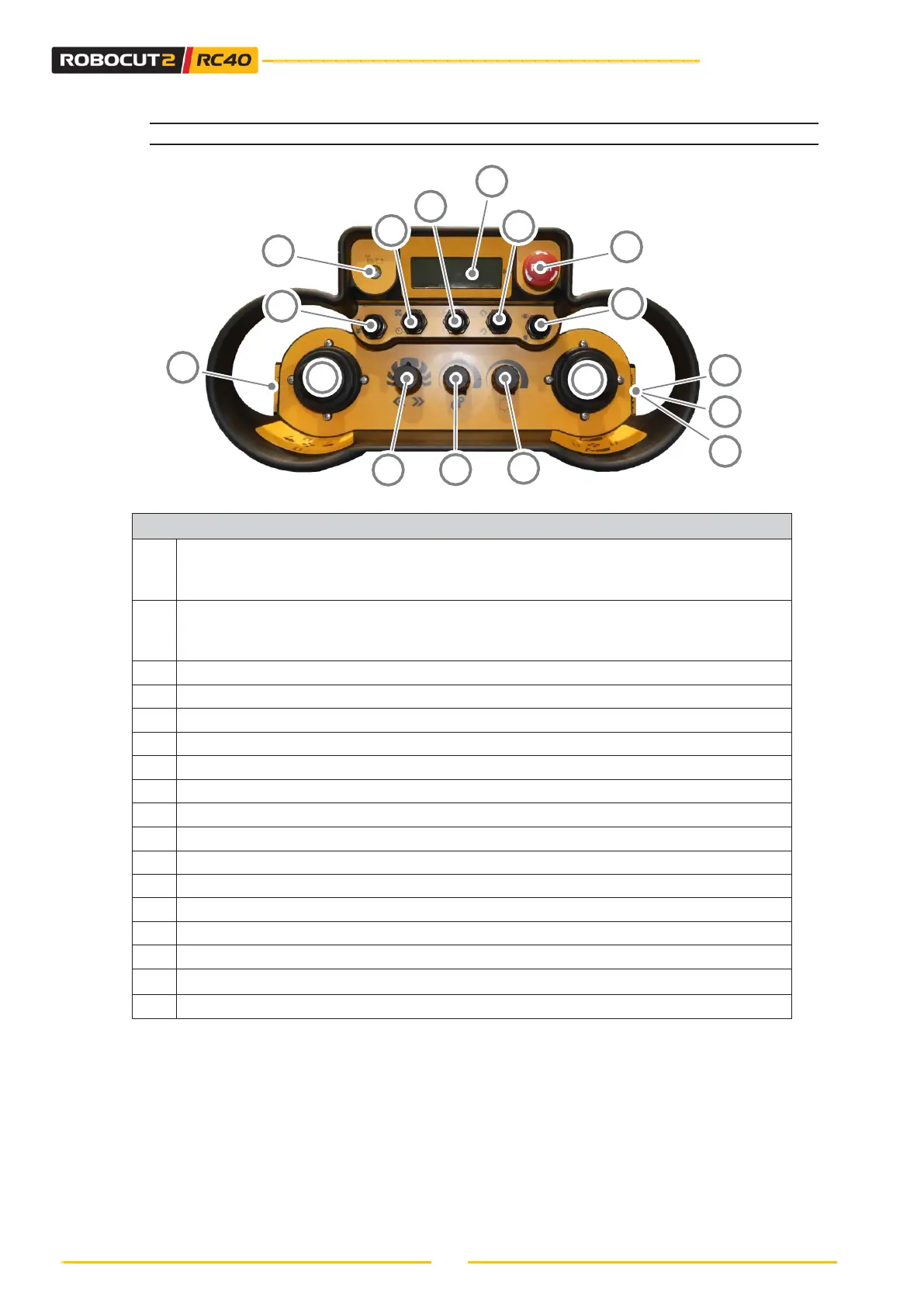

TRANSMITTER FUNCTIONS
A
Joystick:
• Forward/reverse gear
• AUX 1 auxiliary function
B
Joystick:
• Steering
• Raise/lower tool
1
Status LED: radio/battery connection
2
Fan activation switch: manual/timed auto-pilot
3
Travel change switch: slow/fast
4
LCD Display
5
Tool motor rev/activation switch
6
Emergency button
7
Engine on/off switch
8
Transmitter/receiver connection button / horn
9
AUX 3 auxiliary function button
10
Transmitter on/off key
11
Increase/decrease potentiometer of tool hydraulic motor revs
12
Forward travel speed adjustment potentiometer
13
Steering corrector potentiometer
14
Engine revs increase/decrease buttons
15
AUX 2 auxiliary function
4
3
1
2
5
6
15
7
14
A
B
8
9
13
12
11
10
