62

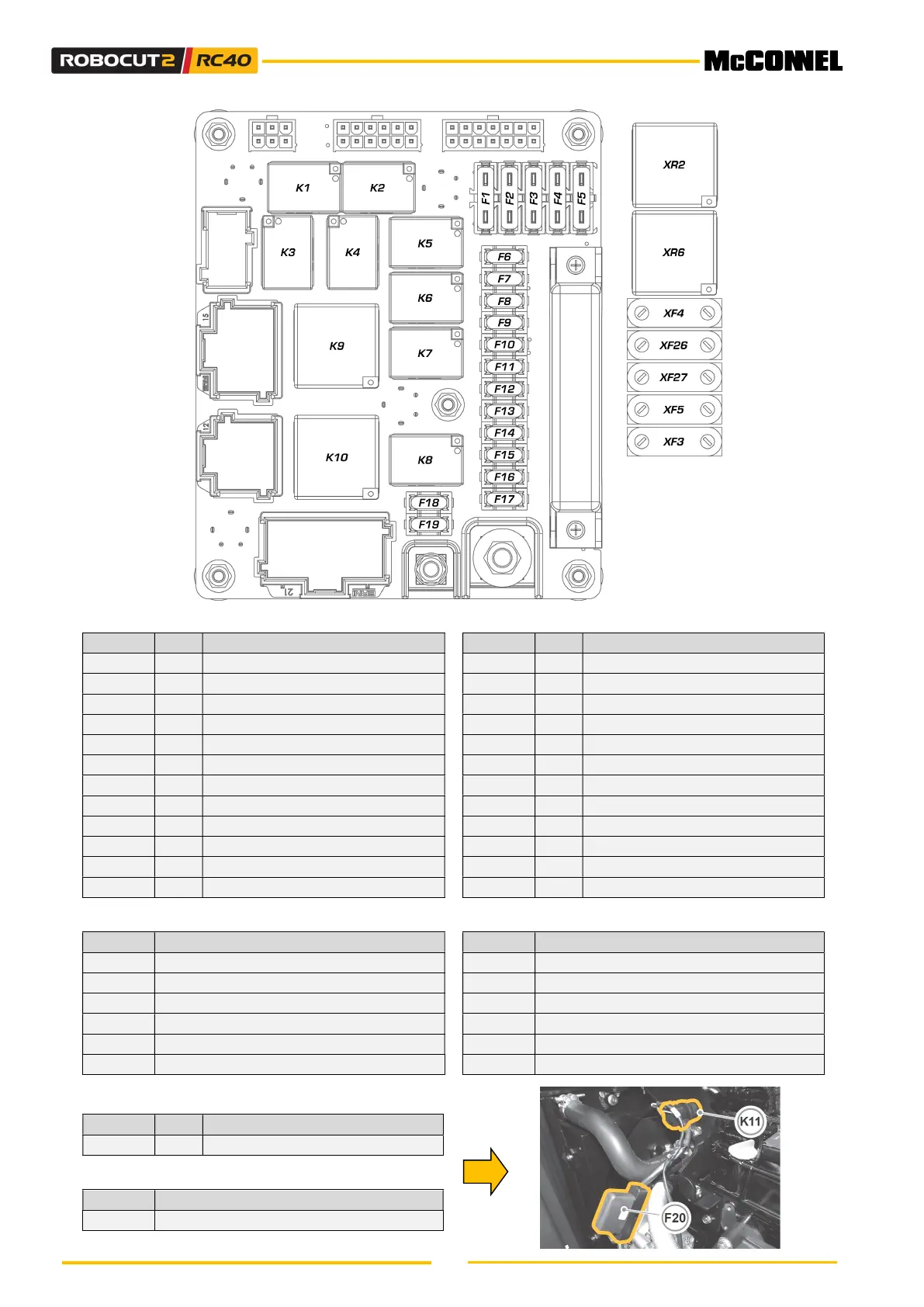

FUSES
Position
Amp
Function
Position
Amp
Function
F1
10
Radio control
F13
10
12V socket
F2
-
-
F14
7.5
Ignition panel
F3
15
Engine control unit
F15
5
Alternator
F4
-
-
F16
7.5
Automatic idler roller
F5
20
Work lights
F17
10
LE70
F6
-
-
F18
7.5
Fuel pump
F7
10
Horn
F19
7.5
Sensors
F8
-
-
XF3
40
Services
F9
-
-
XF4
20
LE70
F10
-
-
XF5
70
Start
-
up
F11
10
Telematics
XF26
20
ECU
F12
-
-
XF27
20
EGR
RELAYS
Position
Function
Position
Function
K1
-
K7
-
K2
-
K8
Interlock
K3
Low engine oil pressure
K9
Work lights
K4
Start controller
K10
EGR
K5
Radio / manual control
XR2
Power supply
K6
Horn
XR6
Start
-
up
GLOW PLUG FUSE
Position
Amp
Function
F20
40
Glow plugs pre
-
heating
GLOW PLUG RELAY
Position
Function
K11
Glow plugs pre
-
heating
