ENGINE OUT
WARNING HORN
HOOD
INSTRUMENT PANEL
STRUCTURE
TB700
REMOVE AVIONICS EQUIPMENT
FOR ACCESS (3 PLACES)
3 PLACES
ENGINE POWER OUT
WARNING UNIT
(DS10)
HORIZONTAL ELECTRICAL
CONTROLS CONSOLE
3 PLACES
PANEL LIGHTS DIMMER
(DS11)
LOWER SUPPORT
STRUCTURE
G95-0025

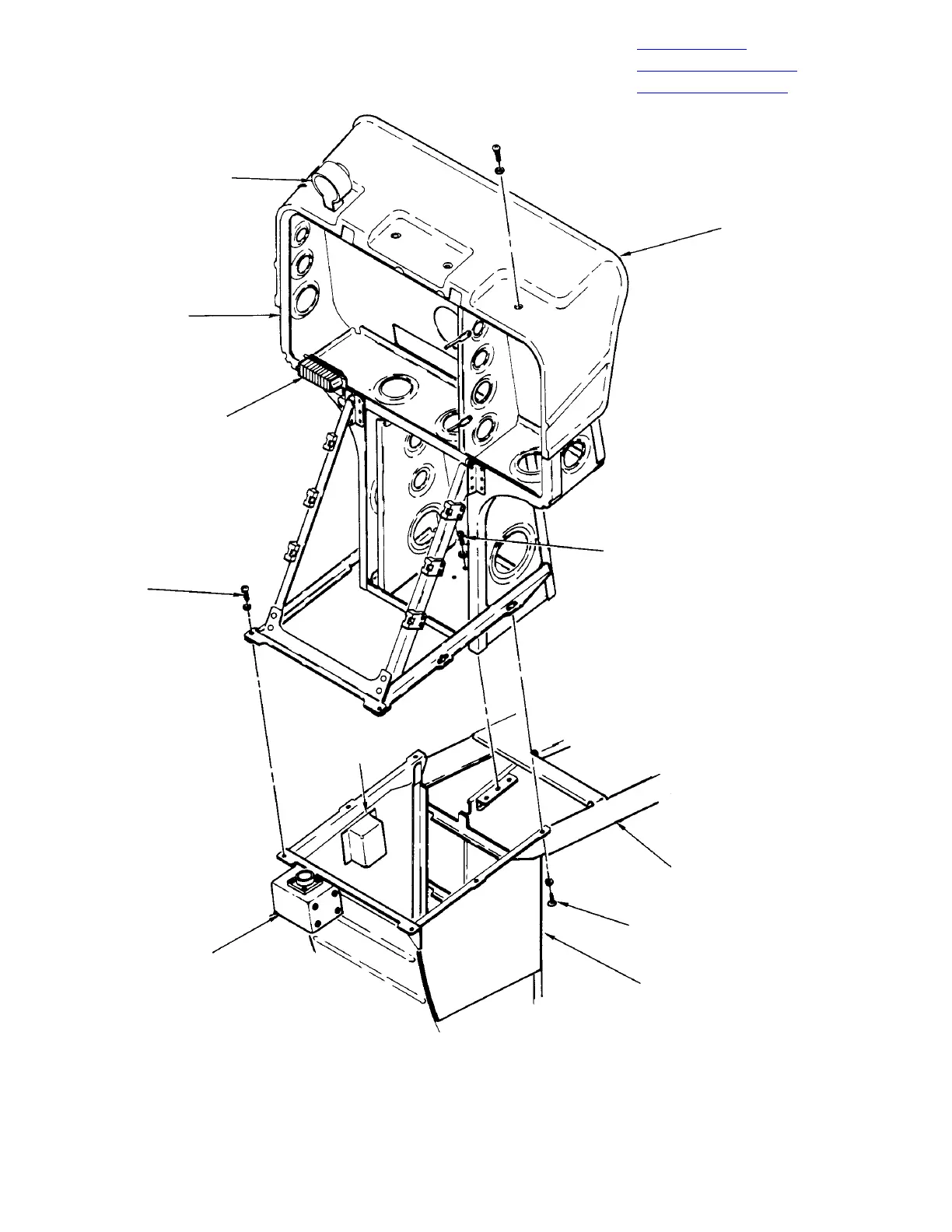

Figure 203. R/H Command T−Panel − Component Locations
