Page 202
Revision 11
96-00-00
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G96-0000
MINILOK MODULE
TERMINAL BLOCK
(TB7)
UTILITY RECEPTACLE
(103)
PILOT'S COMPARTMENT
FLOOR
ARMAMENT RECEPTACLE (J200)
POWER DISTRIBUTION CENTER (NOTE 3)
GENERATOR CONTROL UNIT (NOTE 3)
VOLTAGE REGULATOR (NOTE 1)
BATTERY RELAY (NOTES 1)
BATTERY COMPARTMENT VENT
BATTERY
TB1, TB5
TB3, TB10
LOCATED ON SIDE OF
BATTERY COMPARTMENT
RESISTOR BOARD
(TB8) (R1, R2)
(NOTE 1)
RESISTORS
(TYP)
TYP (2 PLCS)
POLARITY PIN
(NOT USED)
(+) POSITIVE
TERMINAL PIN
J100 APU RECEPTACLE
EXTERNAL RECEPTACLE (J100)
(NOTE 2)
(-) NEGATIVE
TERMINAL PIN
K309 APU RELAY
EXTERNAL RECEPTACLE (J100)
(NOTE 1)
NOTES:
1. EFFECTIVITY: 369D; 724 & SUBS, 369E; 001 - 383, 369FF; 001 - 075.
2. EFFECTIVITY: 369D; 003 - 723.
3. EFFECTIVE: 369E; 384 & SUBS, 369FF; 076 & SUBS.
(-) NEGATIVE
TERMINAL PIN

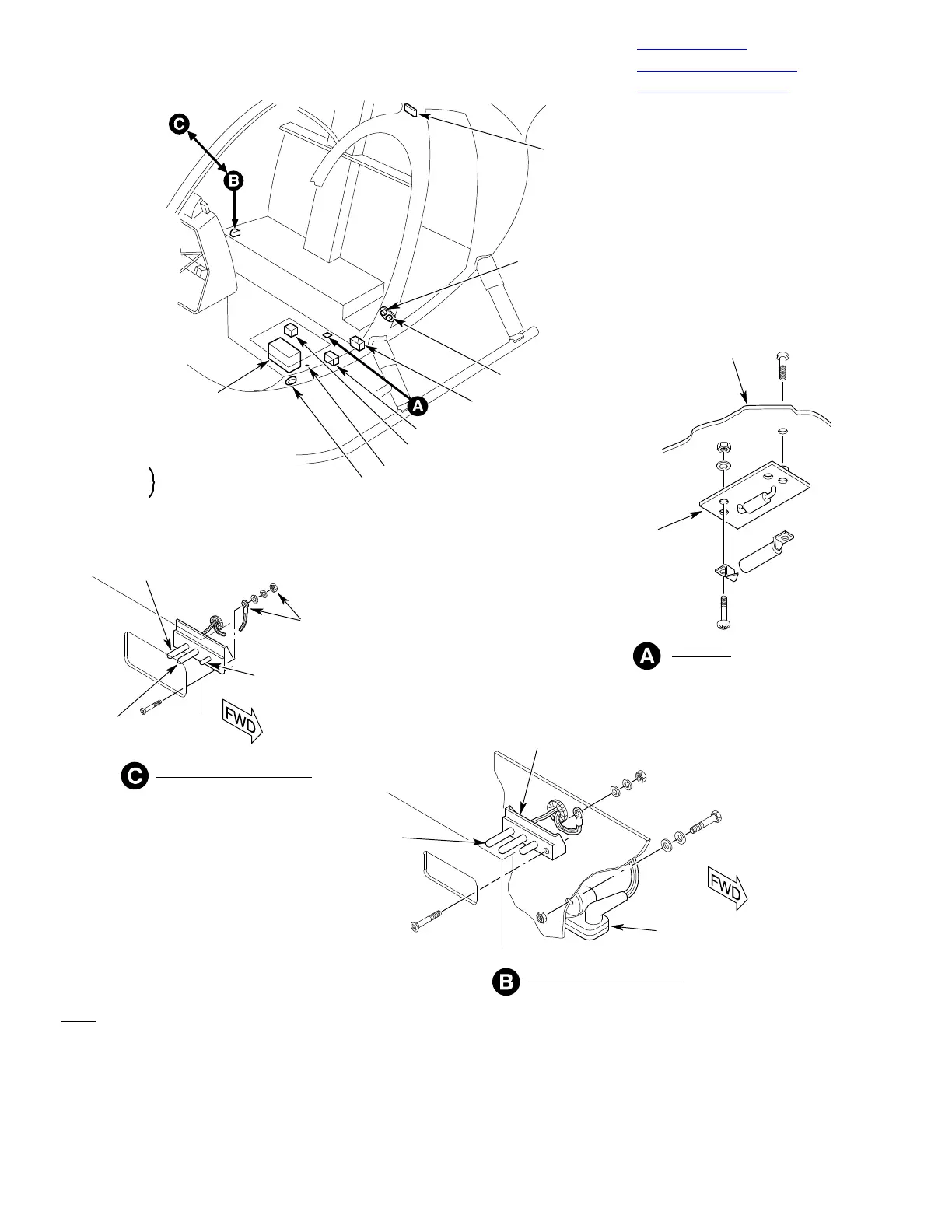

Figure 201. Electrical Equipment − Cabin Location
