95-00-10
Page 207
Revision 7
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G95-0020-2
MOUNTING SLEEVE
RED 160° WARNING
LIGHT/SWITCH
AMBER 140° CAUTION
LIGHT/SWITCH
SWITCH HOUSING
PANEL
WIRE HARNESS
(NOTE 2)
ENGINE OUT AUDIBLE
WARNING HORN
LAMP
(4 PLACES)
LIGHT-SWITCH AND
HORN HOUSING
LOCKING CAM
SWITCH ACTUATOR
INSTRUMENT PANEL
CENTER FAIRING
LEGEND FACE
INDICATOR MODULE
CAUTION WARNING LIGHT
ASSEMBLY (TYPICAL)
LIGHT/SWITCH AND HORN HOUSING
MOUNTED ON HOOD

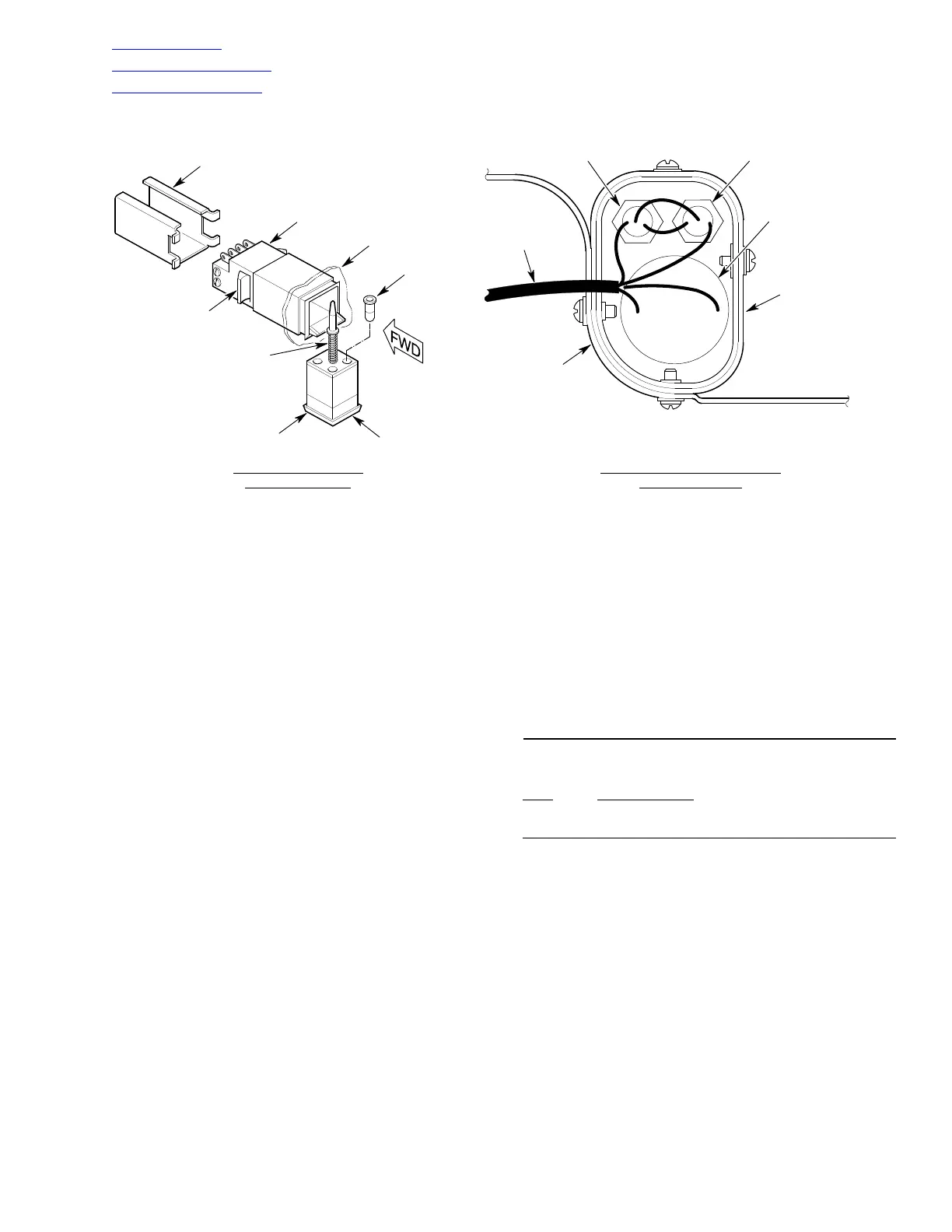

Figure 203. Slim−Line Instrument Panel − Component Locations
(369D S/N 3 − 1149 and 1151 − 1184) (Sheet 2 of 2)
4. Hood Replacement
A. Hood Removal
(1). Remove attaching hardware at sides of
hood (Ref. Figure 203 or Figure 204),
and at front of hood (Ref. Figure 201 or
Figure 202).
(2). Pull hood from panel enough to discon
nect two panel light wiring splices.
B. Hood Installation
(1). Connect two panel light wiring splices.
(2). Install hood to panel with attaching
hardware at front (Ref. Figure 201 or
Figure 202) and at sides (Ref.
Figure 203 or Figure 204).
5. Hood Repair
Consumable Materials
(Ref. Section 91−00−00)
Item
Nomenclature
CM435 Tetrahydrofuran
Use tetrahydrofuran (CM435) or equivalent to
bond and repair cracks and tears in hood.
