CSP-HMI-3 MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 95 TOC ]
Page 208
Revision 7
95-00-10
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G95-0021
DIMMER CONTROL
PANEL LIGHTS
WIRE SPLICES
TB503
TB106
TB502
TB501
K103
K104
K304
ENGINE POWER OUT
CONTROL UNIT
TB6
TB101
ACCESS PANEL
5 PLACES
LOWER SUPPORT
STRUCTURE

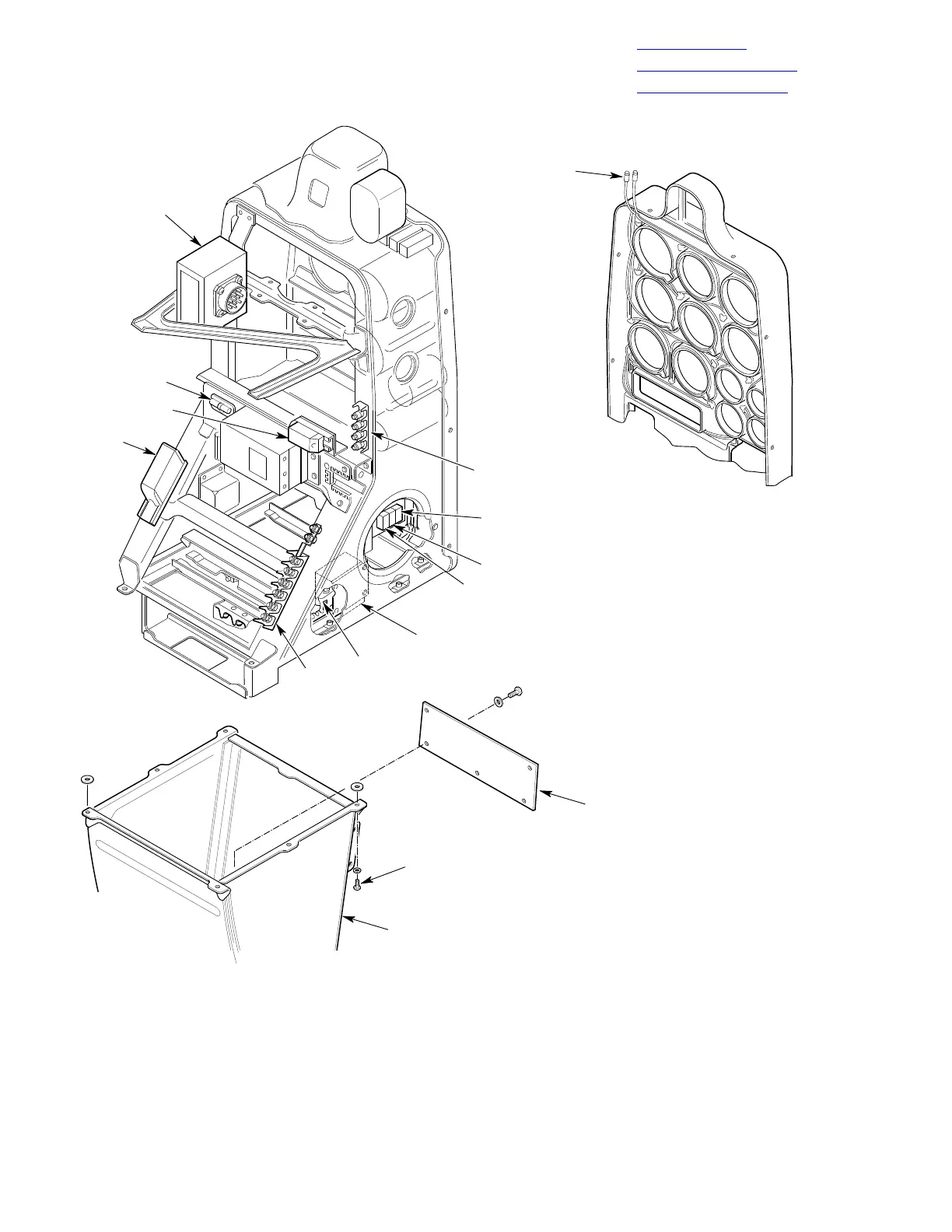

Figure 204. Slim−Line Instrument Panel − Component Locations
(369D S/N 1150 and 1185 and Sub)
