G95-0013
CONNECTOR PLUG
RC07GF511J
RESISTOR
NOTES 1, 4
FLOAT ARM
RESISTOR LEAD
RED WIRE AND
TRANSISTOR LEAD
(NOTE 2)
TOP VIEW
RESISTOR
PRINTED CIRCUIT
TRACE
NOTE 3
RESISTOR LEAD
NOTES:
1. CUT AND PEEL AWAY ENOUGH POTTING COMPOUND TO
EXPOSE TERMINALS AND PRINTED CIRCUIT BOARD.
2. SOLDER RESISTOR LEAD, TRANSISTOR LEAD AND
RED WIRE TOGETHER USING TIN ALLOY SOLDER.
3. SOLDER APPROXIMATELY 1/4 INCH (6.35 MM) OF RESISTOR
LEAD TO PRINTED CIRCUIT TRACE.
4. UPON COMPLETING INSTALLATION, FILL AREA WHERE
POTTING COMPOUND WAS REMOVED WITH RTV11

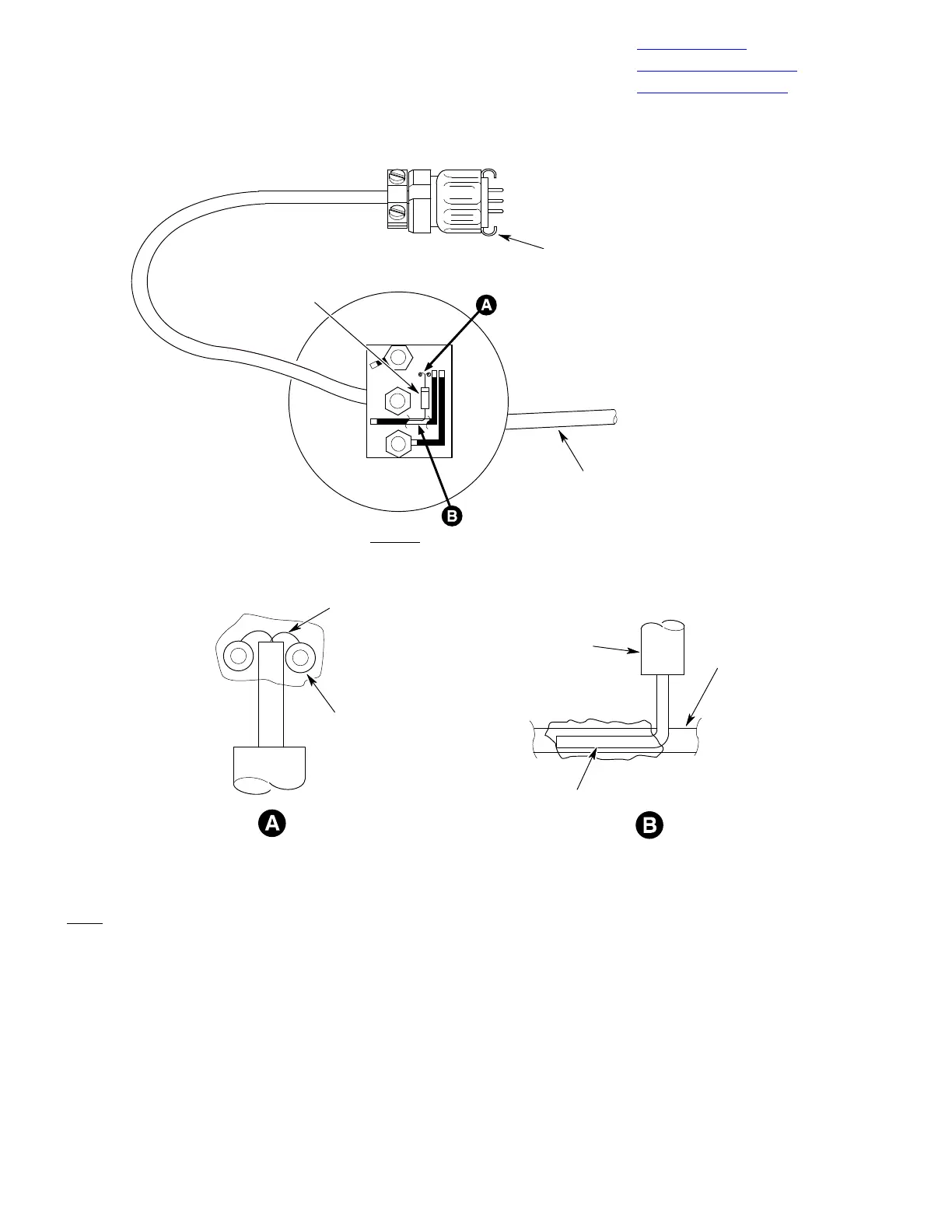

Figure 803. Fuel Quantity Sender Modification − P/N 369D296303−BSC, −701 Units
(369D S/N 0001 − 1116)
