AN960JD10L washers and MS21043-3
locknut.
(8). Attach other end of jumper to ground
stud (E56) on pitot tube support
bracket.
(9). Attach black wire (unmarked) from
pitot tube heating element to ground
stud (E56) on pitot tube support
bracket and install AN980JD10L
washer and MS21043-3 locknut.
(10). Locate wire F504B16 in wiring harness
in lower instrument panel support,
unsheath SP140 knife splice terminal,
and solvent-wash terminal as neces
sary.
(11). Attach red wire (unmarked) from pitot
tube heating element to F504B16 wire
at SP140 splice.
(12). Reinstall right side panel to lower
section of instrument panel.
(13). Attach WARNING decal 2-2.25 inches
(5.08-5.715 cm) above landing light
(Ref. Figure 904).
H. Weight and Balance Data
(Ref. Table 901) Weight and balance data
changes that result from installation of the
heated pitot tube are listed. After installation,
incorporate changes to helicopter weight and
balance records as instructed (Ref. Sec.
08-10-00).
Table 901. Weight and Balance Data
Configuration
Weight
Pounds (kg)
Arm
inches (cm)
Moment
in−lb (kg cm)
369H90034−BSC +0.5 (+0.2268) +37.7 (+95.758) +18.85 (+217.17)
369H90034−503 +0.3 (+0.1361) +36.7 (+93.218) +11.01 (+126.85)
369H90034−507 +0.3 (+0.1361) +28.6 (+72.644) +8.58 (+98.85)
2.00-2.25 IN.
(50.80-57.15 MM)
MDHC
DECAL
FRONT VIEW OF HELICOPTER
WARNING
PITOT MAY BE HOT DO NOT TOUCH
G95-1013A

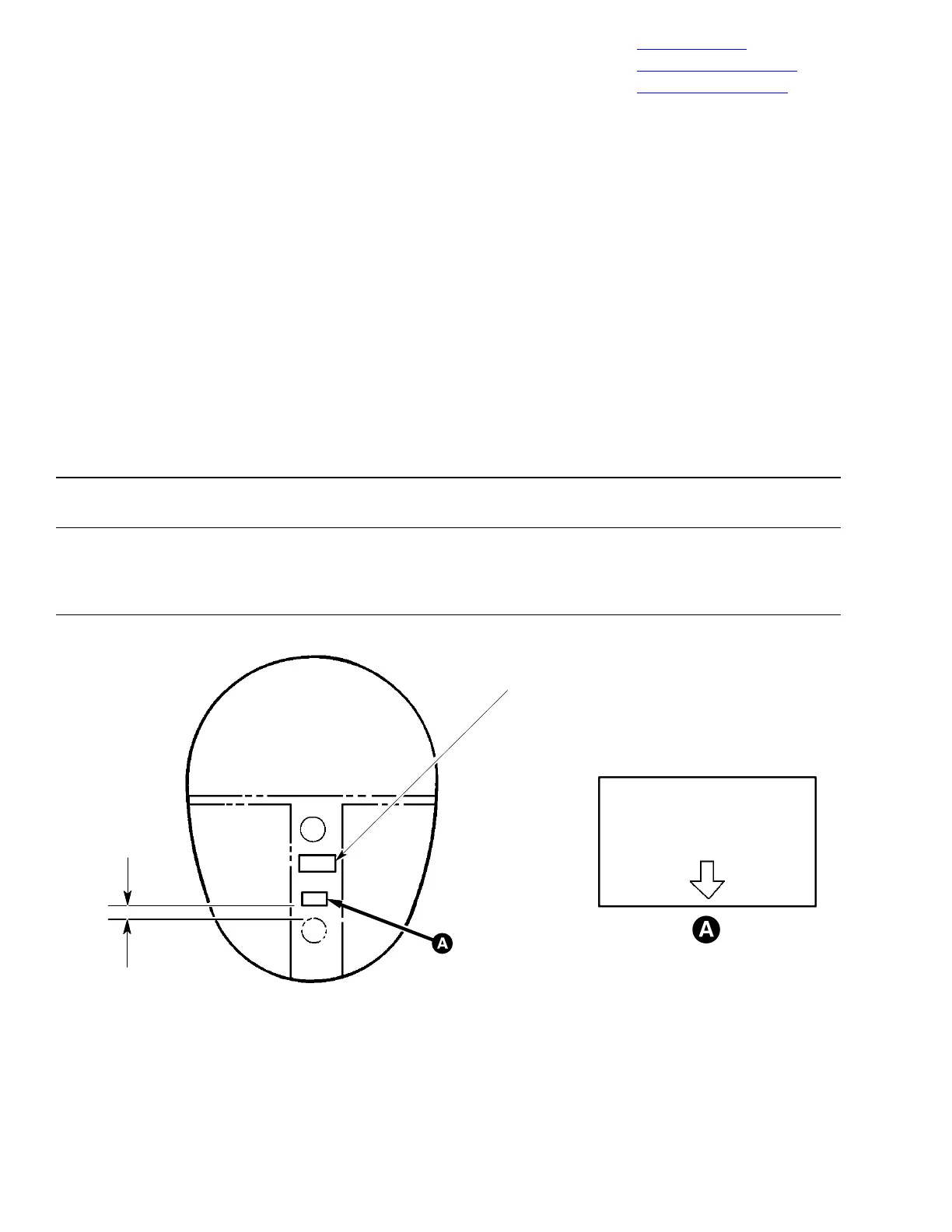

Figure 904. Warning Decal Location
