G96-0033-5
N
OTES:
. MINOR BLEMISH, SCRATCH OR POROSITY IN CONTACT CAVITY
ENTRY AREA.
2
. MINOR SCRAPES AND SCRATCHES IN HARD DIELECTRIC FACE.
3 CHIP THAT DOES NOT EXTEND FROM CAVITY TO CAVITY
ACCEPTABLE DEFECTS
(HARD DIELECTRIC, PHENOLIC INSERTS)
NOTE 1
NOTE 2
NOTE 3

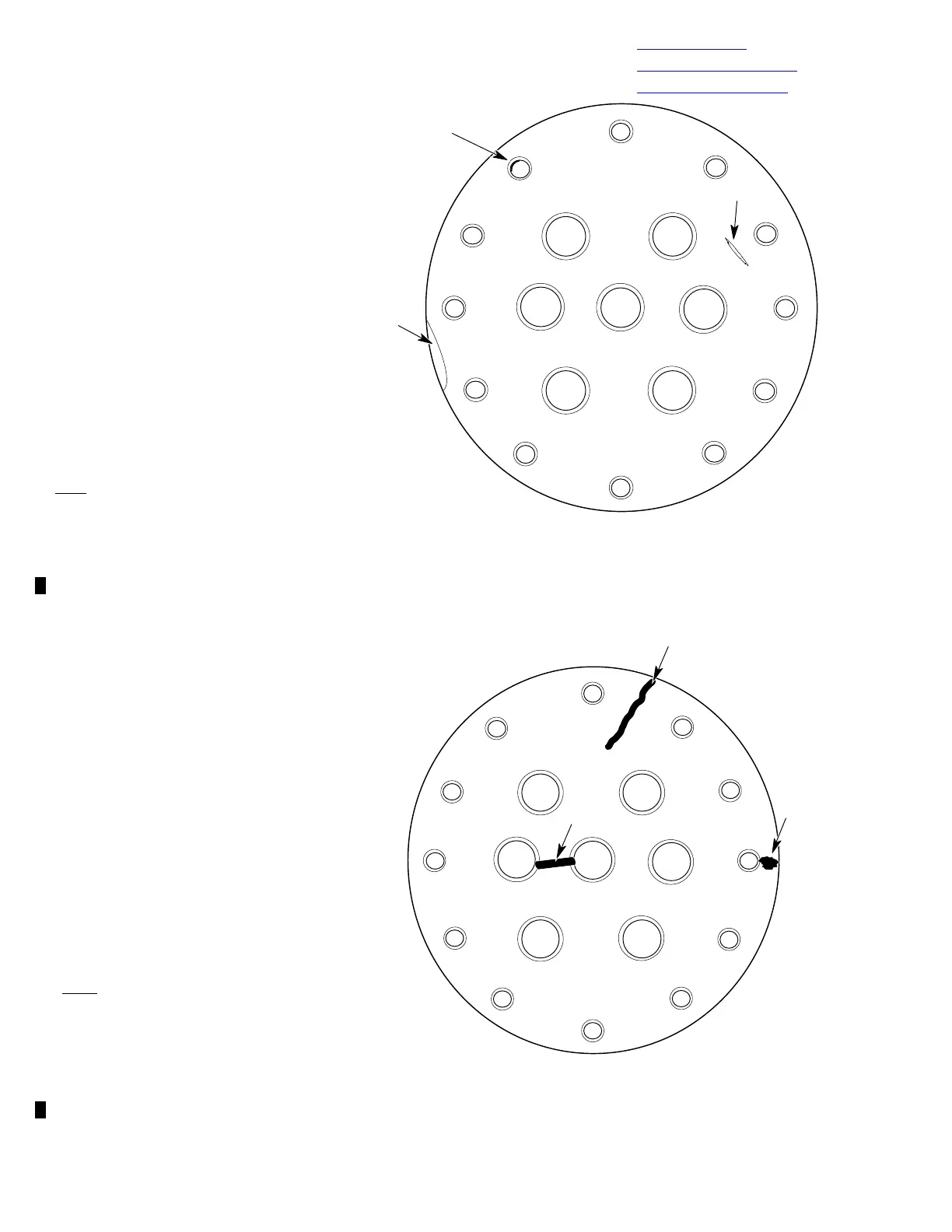

Figure 602. Accept/Reject Criteria for Connector Defects (Sheet 5 of 6)
G96-0033-6
UNACCEPTABLE DEFECTS
(HARD DIELECTRIC, PHENOLIC INSERTS)
NOTE 1
NOTES:
1. CHIP, POROSITY, OR MOLD IMPERFECTIONS WHICH EXTEND FROM
ONE CONTACT CAVITY TO ANOTHER CONTACT CAVITY.
2. CRACKS IN HARD DIELECTRIC FACE.
3. CHIP OR POROSITY WHICH EXTENDS FROM A CONTACT CAVITY TO
OUTER EDGE OF INSERT OR INTO HARD DIELECTRIC FACE.
NOTE 2
NOTE 3
Figure 602. Accept/Reject Criteria for Connector Defects (Sheet 6 of 6)
