NOTE 1
NOTES:
1. MOLD FLASH OR OTHER MOLD IMPERFECTIONS WHICH DO NOT
CAUSE VOIDS BETWEEN GROMMET AND WIRE AFTER CONTACT IS
INSTALLED.
2. SLIGHT IMPERFECTIONS, MINOR SCUFFS, SCRATCHES, GOUGES,
CUTS, AND TEARS IN CAVITY SEPARATOR.
3. A GOUGE, CUT, TEAR, CRACK, OR CHIP ON INNER OR OUTER
PERIMETER OF PIN BARRIER CONE THAT DOES NOT EXCEED 50%
OO CO
ACCEPTABLE DEFECTS
MATING FACE, PIN INSERT)
NOTE 2
NOTE 3

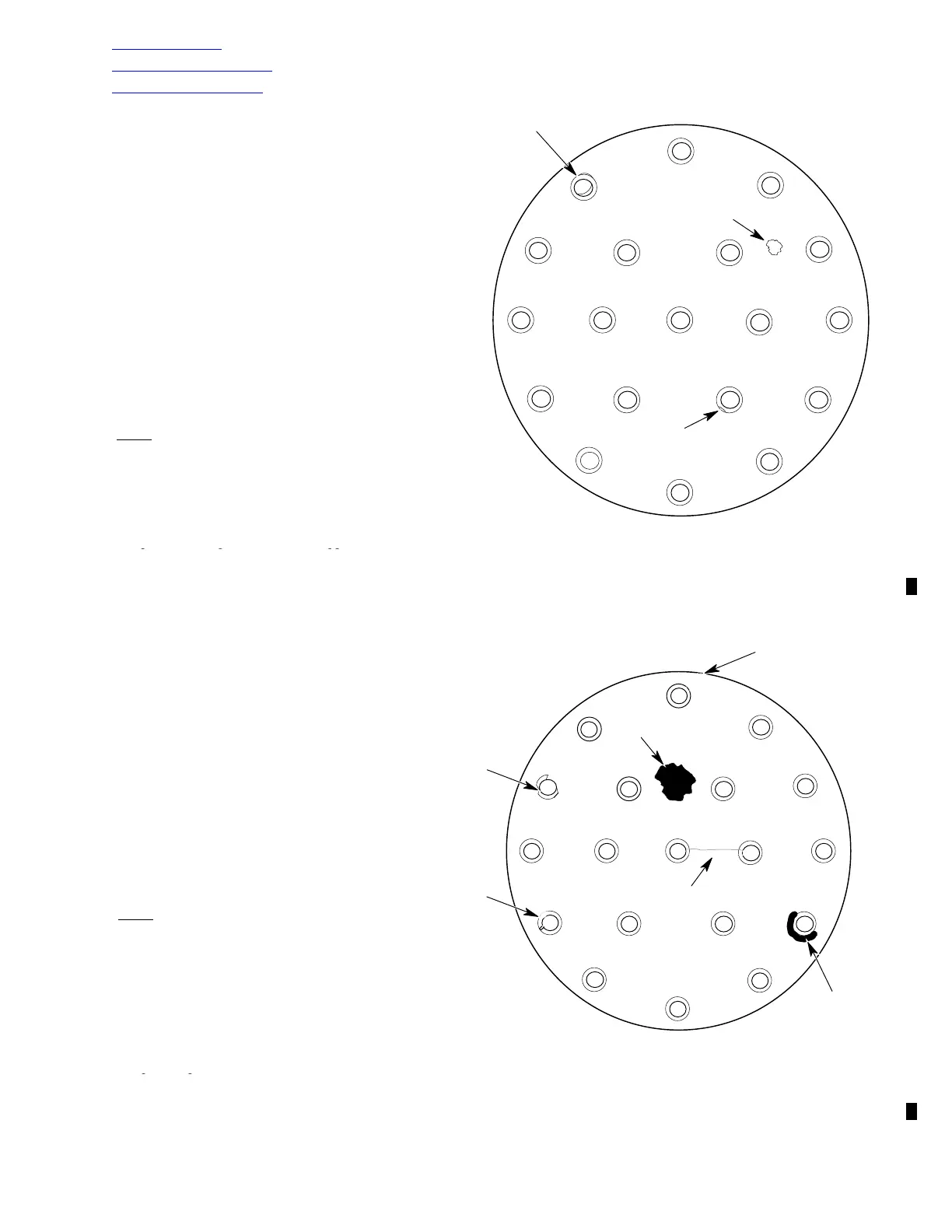

Figure 602. Accept/Reject Criteria for Connector Defects (Sheet 3 of 6)
G96-0033-4
UNACCEPTABLE DEFECTS
MATING FACE, PIN INSERT)
NOTE 1
NOTES:
1. A GOUGE, CUT, TEAR, CRACK, OR CHIP WHICH ENTERS INNER
PERIMETER OF PIN BARRIER CONE, OR EXCEEDS 50% OF WALL
WIDTH.
2. A GOUGE, CUT, TEAR, CRACK, OR CHIP WHICH EXTENDS FROM
OUTER EDGE OF GROMMET FACE TO A PIN BARRIER CONE.
3. A GOUGE, SPLIT, OR CRACK ALONG CIRCUMFERENCE AT BASE
OF PIN BARRIER CONE.
4. A GOUGE, CUT, TEAR, CRACK, OR CHIP WHICH EXTENDS FROM
PIN BARRIER CONE TO ANOTHER PIN BARRIER CONE.
5. SEVERE GOUGE, CUT, TEAR, CRACK, OR CHIP IN CAVITY
SO
NOTE 2
NOTE 3
NOTE 4
NOTE 5
NOTE 6
Figure 602. Accept/Reject Criteria for Connector Defects (Sheet 4 of 6)
