MD Helicopters 369D - Helicopters with T-Panel and Center Console; (Sheet 1 of 3)

CSP-HMI-3 MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 96 TOC ]
Page 214
Revision 7
96-30-00
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.

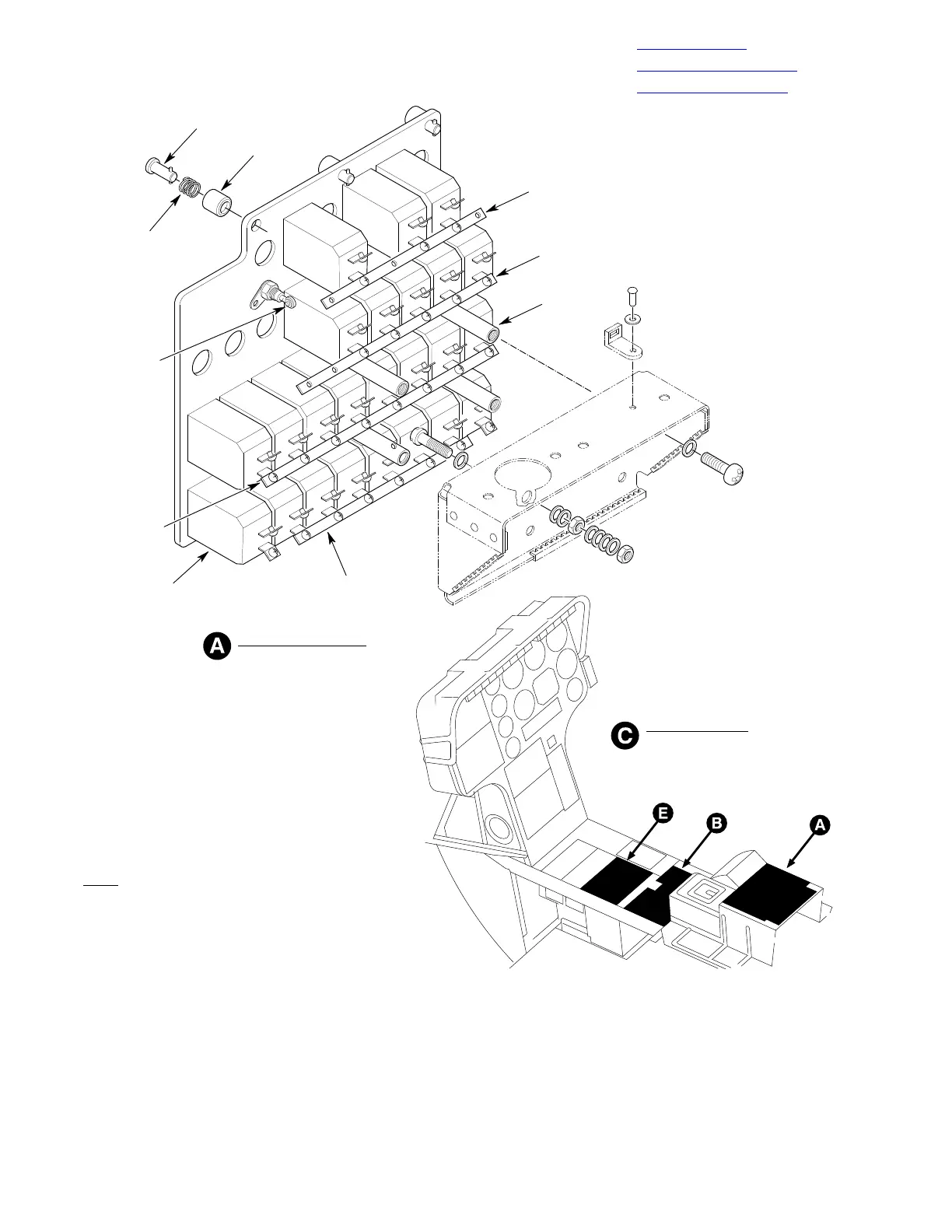

STUD
(6 PLCS)
CUP
(6 PLCS)
SPRING
(6 PLCS)
CONNECTOR
(J28)
BUS
(W4)
BUS
(W3)
STANDOFF
(4 PLCS)
BUS
(W2)
BUS
(W1)
CIRCUIT BREAKERS
(24 SHOWN) (NOTE 1)
CIRCUIT BREAKER PANEL
REAR VIEW (NOTE 1)
INSTRUMENT PANEL
T-PANEL WITH CENTER CONSOLE
(NOTE 2)
NOTES
:
1. NUMBER, SIZE (AMPS), LOCATION AND FUNCTION
OF CIRCUIT BREAKERS VARIES BASED ON
EQUIPMENT INSTALLED.
2. PANELS AND SWITCHES VARY WITH OPTIONAL
EQUIPMENT INSTALLED.
G96-3005-1
Figure 208. Electrical Distribution Switches and Circuit Breakers,
369D Helicopters with T−Panel and Center Console
(Sheet 1 of 3)
