CSP-HMI-3 MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 95 TOC ]
Page 206
Revision 13
95-00-10
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G95-0020-1A
PANEL LIGHTS
WIRE SPLICES
LIGHT/SWITCH AND
HORN HOUSING
HOOD
(NOTE 1)
2 PLACES
ALTERNATE LOCATION FOR
ENGINE POWER OUT
WARNING UNIT
UPPER SUPPORT
RESISTOR-DIODE
BOARD TB106
9 PLACES
ENGINE POWER OUT
WARNING UNIT
2 PLACES
K304
K104
SWITCH AND CIRCUI
T
BREAKER PANEL
(REF)
8 PLACES
5 PLACES
SPECIAL SHIM
WASHER
ACCESS PANEL
5 PLACES
PANEL LIGHTS
DIMMER
LOWER SUPPORT
STRUCTURE
NOTES
:
1. REMOVE 9 SPEED CLINCH FASTENERS
TO REMOVE HOOD FROM PANEL.
2. ROUTED WITH EXISTING WIRING.
TB502
SPECIAL SHIM
WASHER
K103

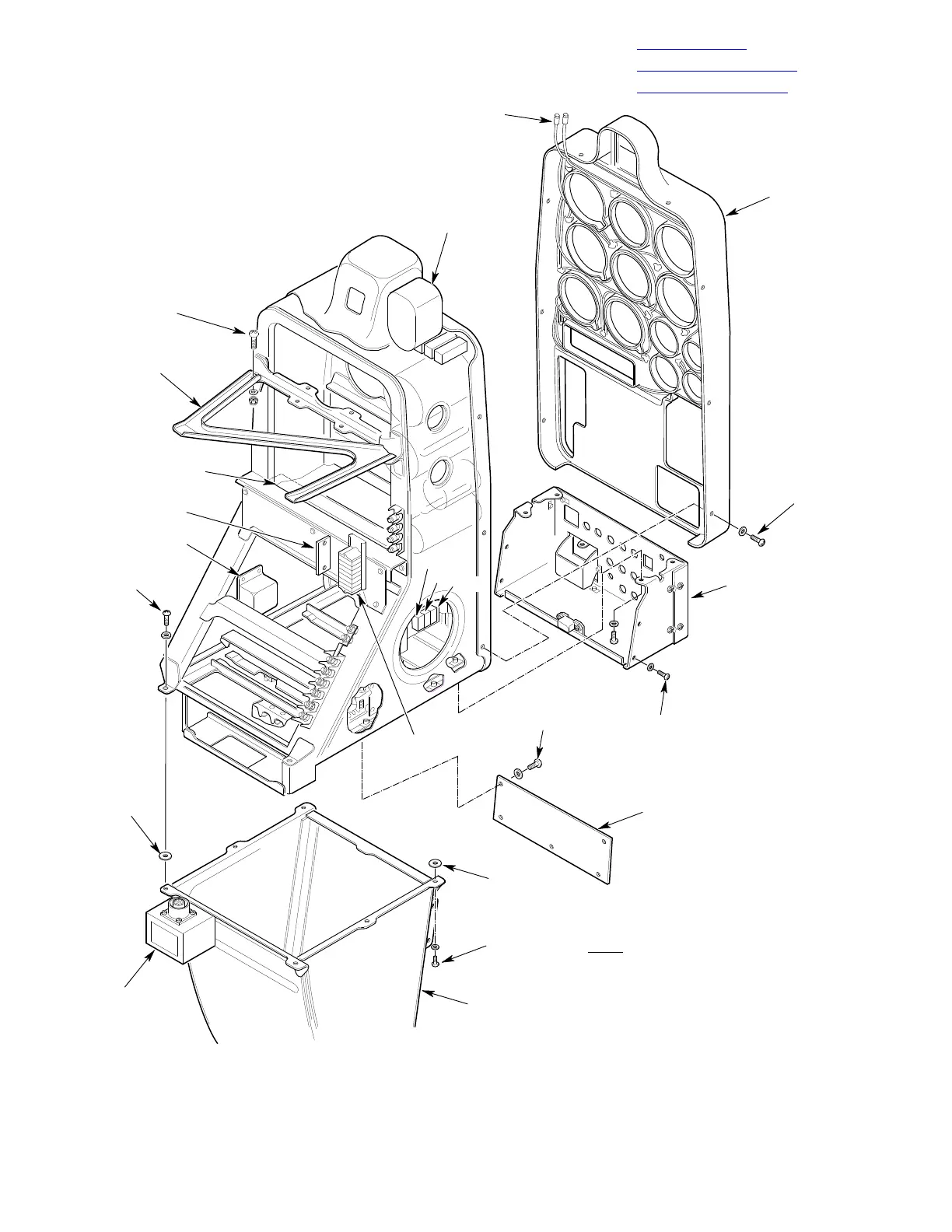

Figure 203. Slim−Line Instrument Panel − Component Locations
(369D S/N 3 − 1149 and 1151 − 1184) (Sheet 1 of 2)
