COVER PANEL
NY400-1-0R
CONNECTOR
-3
PLUG
0.250-0.310 IN.
(6.35-7.874 MM)
ALTIMETER
AIRSPEED INDICATOR
369H6610-11 OR
369H6610-21
UNION ASSEMBLY
DETAIL -11 UNION ASSY
DETAIL -21 UNION ASSY
0.019-0.022 IN.
(0.483-0.559 MM)
DIA HOLE
NY400-1-2
CONNECTOR
-3 PLUG
NYLON CROSSOVER TUBE
TEE
0.310 IN.
(7.874 MM)
-23 PLUG
FLUSH THIS SIDE
G95-1003A
0.250-0.310 IN.
(6.35-7.874 MM)
DRAIN VALVE
INSTRUMENT PANEL
(TYPICAL)
PITOT PRESSURE
NYLON TUBE
PITOT TUBE ASSEMBLY

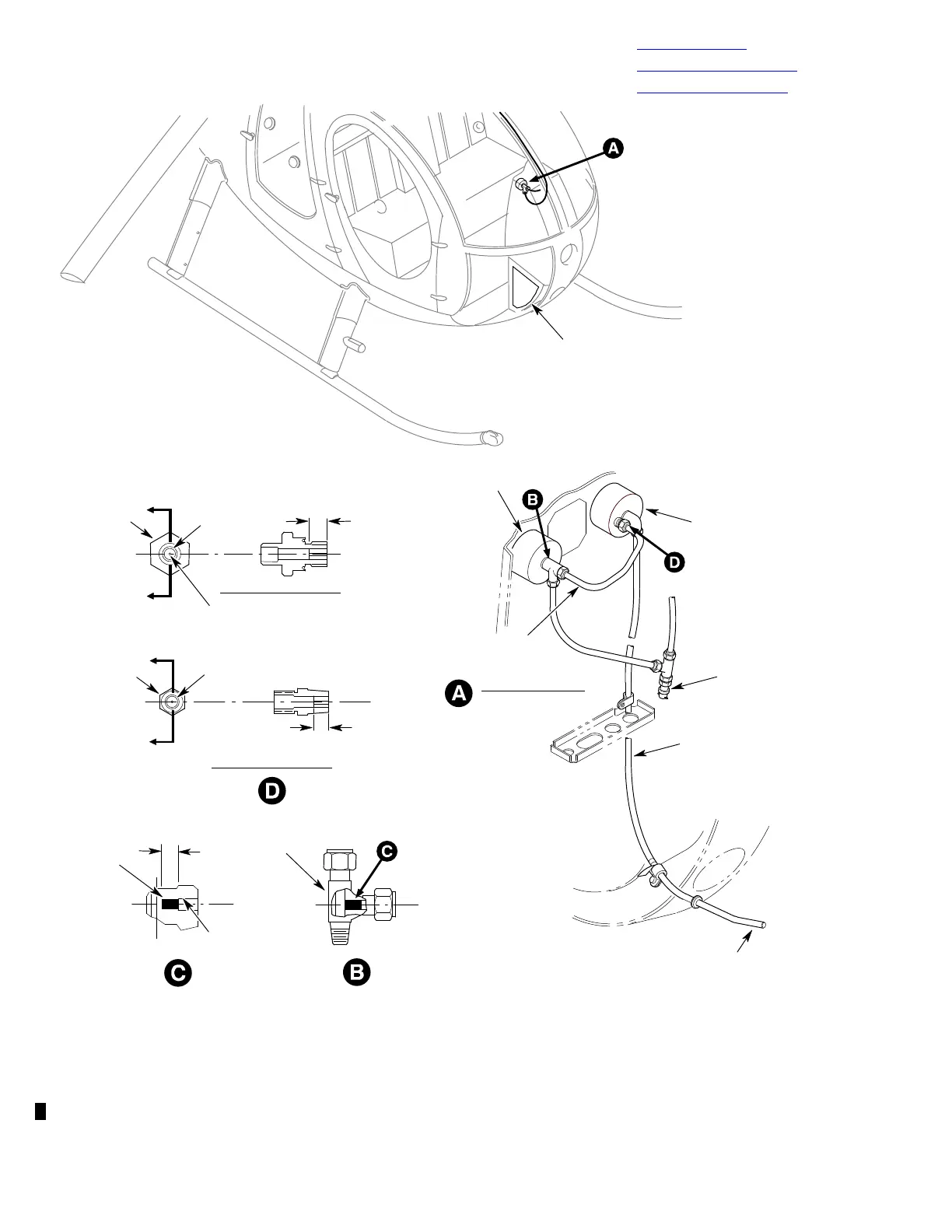

Figure 204. Rework of Static Pressure Tube Installation to Minimize
Altimeter Needle Oscillation
