-21 BRACKET
-31 CLAMP
IVSI
IVSI
TEE
TUBE
O-RING
REDUCER
ADAPTER
UNION
ELBOW
TUBE
TUBE
TUBE
TEE
CONNECTOR

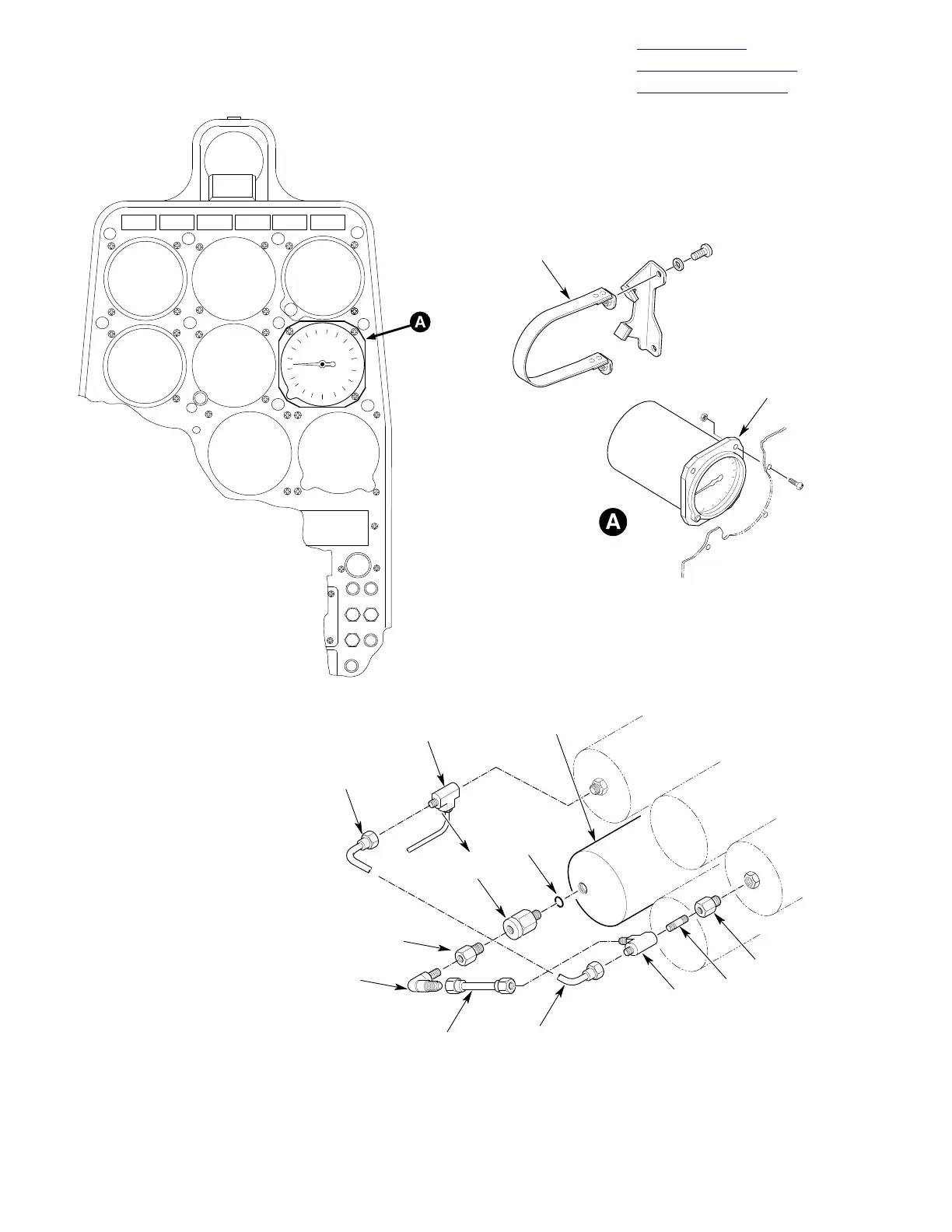

Figure 201. Installations IVSI (SLZ9066 and UI7130) (Slim−Line Panel)
