G95-5001
INDICATOR
OUTER MOUNTING
RUBBER WASHER
INNER MOUNTING
RUBBER WASHER
SPACER
DISHED WASHER
SEAL
SPACER
SUNSHIELD

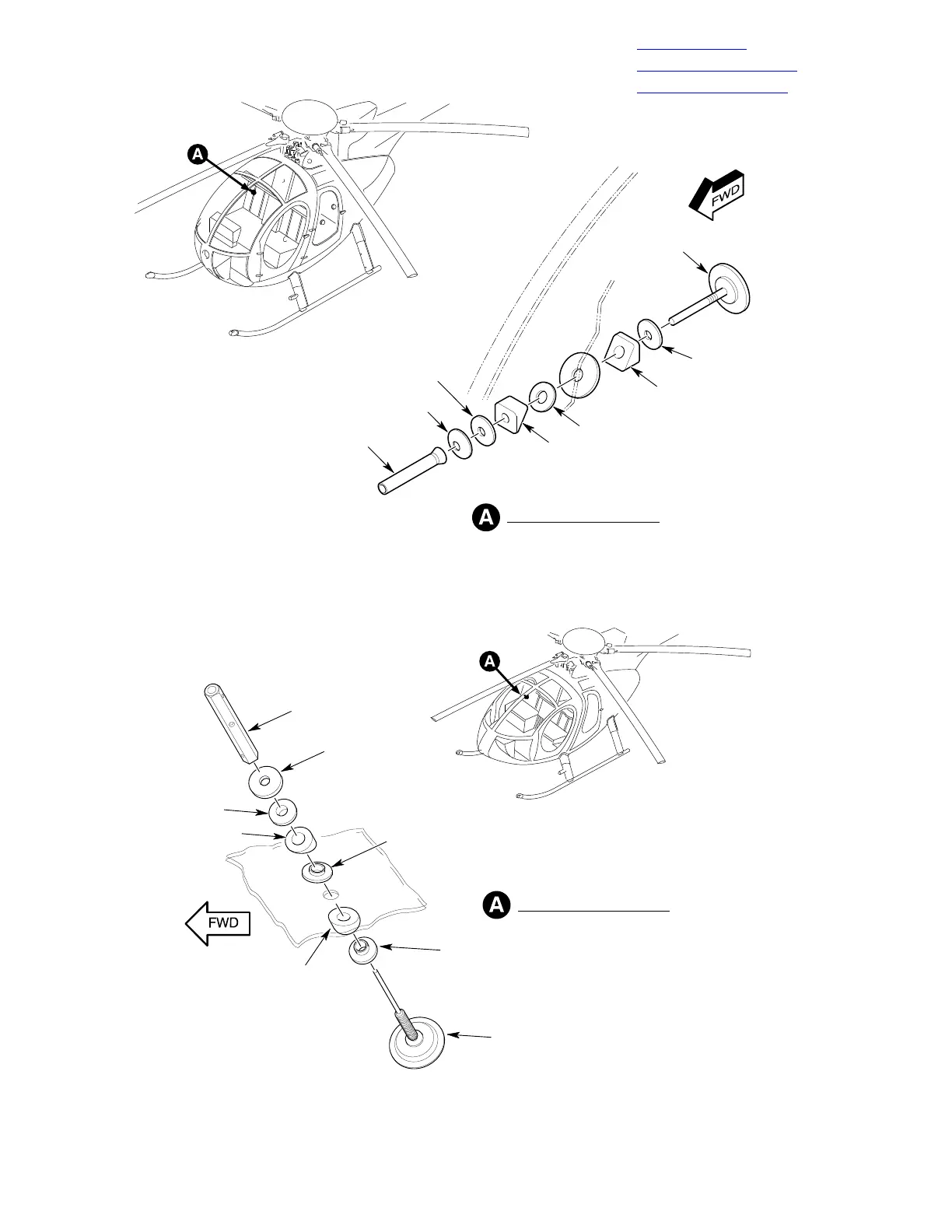

OAT INDICATOR INSTALLATION
Figure 201. OAT Indicator (369D)
G95-5002
SUNSHIELD
DISHED WASHER
SEAL
SPACER
OUTER MOUNTING
RUBBER WASHER
INNER MOUNTING
RUBBER WASHER
SPACER
INDICATOR
OAT INDICATOR INSTALLATION
Figure 202. OAT Indicator (369E/FF − 500/600N)
