MD Helicopters 369D - Page 314

CSP-HMI-3
MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 96 TOC ]
Page 234
Revision 12
96-01-00
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
2
2
2
1
2
1
2
10A
7.5A
7.5A
CB115 (ANTI-COLL LTS)
1
1
1
CB120 (PITOT HEAT)
CB119 (POS LTS)
1
2
3
45
6
7
R110 (PNL LT DIM POT)
L532B22 (P12-J)
S4 (GEN SW)
1
2
3
4
5
6
P513A20 (K103-6)
SWITCH/BREAKER PANEL
1
2
5A
5A
1
2
12
12
1
2
1
2
5A
5A
12
1
2
CB110 (LANDING LT)
CB112 (GEN)
CB104 (PNL LTS)
CB103 (N2 GOV)
CB101 (INST)
CB102 (TRIM ACT)
CB106 (ENG OUT)
15A
15A
5A
2A
CIRCUIT BREAKER PANEL
P516V16
L511A16 (J9-c)
1
2
K510A20 (J9-B)
S3 (KEY SW)
P515A16 (J9-Z)
CB117 (UTIL PWR)
CB118 (START PUMP)
7.5A
7.5A
(TB101-3) P506AX10
21
XDS7
START PUMP
“ON” LT
E560B22
E561B22
B A
SP23
B A
SP24
E560A22N (TB6-6)
J16
PNL
LTS
L533C22 (TB503-1D)
(J9-n) P506A16
D508A22 (J9-X)
1
2
7.5A
1
2
3A
1
2
5A
CB107 (ADF)
CB105 (GYRO)
CB108 (NAV/COM)
CB126 (XPDR)
J15
PNL
LTS
L533A22 (TB502-1E)
M501A20 (J9-G)
Q501C20 (P12-N)
Q501A20 (J9-b)
L520A20 (J9-R)
F504A16 (J9-a)
L532A22 (CB104-2)L532A22 (CB104-2)
L551A22 (P12-X)
L504B22N (TB6-4)
K510F16 (CB128-1)
K501A20 (CB125-2)
P508C20 (J9-M)
E520B20 (TB104-1)
E521A20 (TB6-6)
E561A22 (P12-L)
L501A16 (J9-s)
E501A22 (J9-d)
CR10A
C506A22 (J9-P)
L531A22 (J9-S)
K504A20 (J9-h)
K504A20 (J9-h)
E518A22 (P12-T)
L532A22 (R110-3)
E567A22 (P19-B)
J501A20 (S11-1)
RV522A16 (TB501-1)
RV520A16 (TB501-2)
(TB101-2) P506W10
(TB101-2) P506AN16
(TB101-2) P506AM16
(TB101-2) TR611-1A20
G96-0019-8A

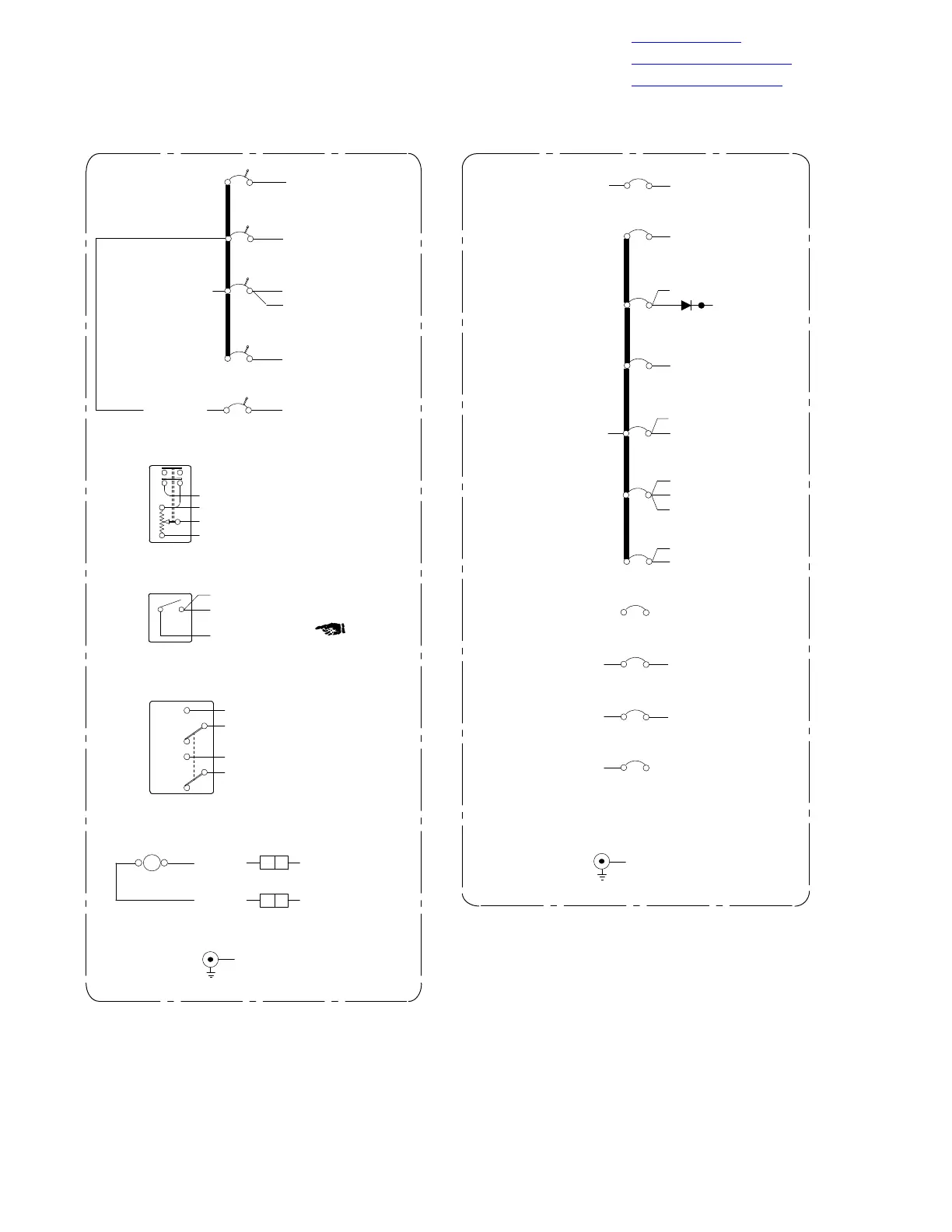

Figure 206. Console Wiring Diagram (369D; 724 − 1149, 1151 − 1184)
(Sheet 2 of 6)
