G96-0024-5B
369D24274
TB502-1 (RADIO PWR)
(CB202-2) R1238A22
P536A22 (P509-A)
TB502-2 (LIGHTING)
(TB503-3M) L121A22
TB502-4 (AUDIO COMMON)
TB502-3 (AUX SWITCHING)
(S13-3) RV543A22
RV541A22 (S13-6)
CNS13B22 (P509-T)
TB502-5
(P509-S) CNS10B22
CNS11B22 (P509-K)
TB502-6 (PHONE HI)
(P1201-39) W1085B22
W1086B22 (P1201-40)
TB502
NOTE: TB502-7, -8, -9, -10, -11, -12 AND -13 (NOT USED)
TB503
TB503-2
(XDS21-S) W1040B22
W1041A22 (TB505-3/4)
TB503-1
(CB104-2) L1039A22
TB503-3
(DS117) L101A22
L102A22 (DS136)
TB503-4
(DS140) L113A22
L111A22 (DS124)
(CB203-2) R1245A22
(CB204-2) R1244A22
(CB205-2) R1243A22
(CB206-2) R1242A22
AB
CD
EF
GH
J
K
L
M
N
PRS
T
WYZ
P536A22 (P509-A)
AB
CD
EF
GH
J
K
L
M
N
PRS
T
WYZ
R1241A22 (CB207-2)
(TB503-4C) L121B22
AB
CD
EF
GH
J
K
L
M
N
PRS
T
WYZ
(P509-P) CNS16B22
CNS34A22 (P509-L)
CNS56A22 (P509-M)
CNS33A22 (P509-N)
CNS18A22 (P509-R)
(TB106-1) SV514Q22
(P1201-41) W1099B22
(P10-F) RV514B22
(TB106-2) RV514S22
AB
CD
EF
GH
J
K
L
M
N
PRS
T
WYZ
CNS22A22 (P509-U)
AB
CD
EF
GH
J
K
L
M
N
PRS
T
WYZ
22 AWG JMPR (SHLD)
RV514F22 (P10-B)
RV511A22 (P509-J)(SHLD)
CNS56A22 (P509-V)
RV514T22 (TB106-3)
AB
CD
EF
GH
J
K
L
M
N
PRS
T
WYZ
RV540A22 (S13-5)
CNS14B22 (P509-D)
RV542A22 (S13-4)
RV545A22 (S13-2)
CNS12B22 (P509-dd)
RV544A22 (S13-1)
AB
CD
EF
GH
J
K
L
M
N
PRS
T
WYZ
(CB101-2) E1002A22
(P12-V) W1040B22
(P1201-9) L1145A22
(XDS21-S) W1040A22
(TB505-1/2J) E1002B22
(P12-T) W1040DD22
(M34-IGN) E1191A22
(R110-3) W1040K22
(M35-IGN) E1176A22
W1237A22 (TB505-1/2F)
Q506E22 (DS31-C)
JUMPER (TB503-5R)
Q1170A22 (P1201-27)
W1088AA22 (P1201-42)
AB
CD
EF
GH
J
K
L
M
N
PRS
T
WYZ
(P12-A) W1040L22
(XDS21-S2-NO) W1237B22
(P12-B) W1237C22
(DS141-C) W1040E22
(P12-D) W1040F22
(CB118-2) Q1169A22
(P12-N) Q1235C22
(P12-S) W1091A22
A
BC
D
EF
G
HJ
K
LM
(DS129) L112A22
(DS112) L119A22
(DS147) L115A22
(DS134) L117A22
(DS145) L116A22
L121B22 (TB502-2E)
L114A22 (DS146)
L120A22 (DS115)
L118A22 (DS119)
L117D22 (PS122-RED)
C
D
E
A
F
B
G
HJ
K
LM
(DS129) L112A22
(DS112) L119A22
(DS147) L115A22
(DS134) L117A22
(DS145) L116A22
L121B22 (TB502-2E)
L114A22 (DS146)
L120A22 (DS115)
L118A22 (DS119)
L117D22 (PS122-RED)
(P12-d) L1183K22
(DS129) L104A22
(DS137) L103A22
(DS138) L106A22
(DS142) L109A22
L105A22 (DS132)
L107A22 (DS143)
L108A22 (DS144)
L110A22 (DS131)
L121A22 (TB502-2A)

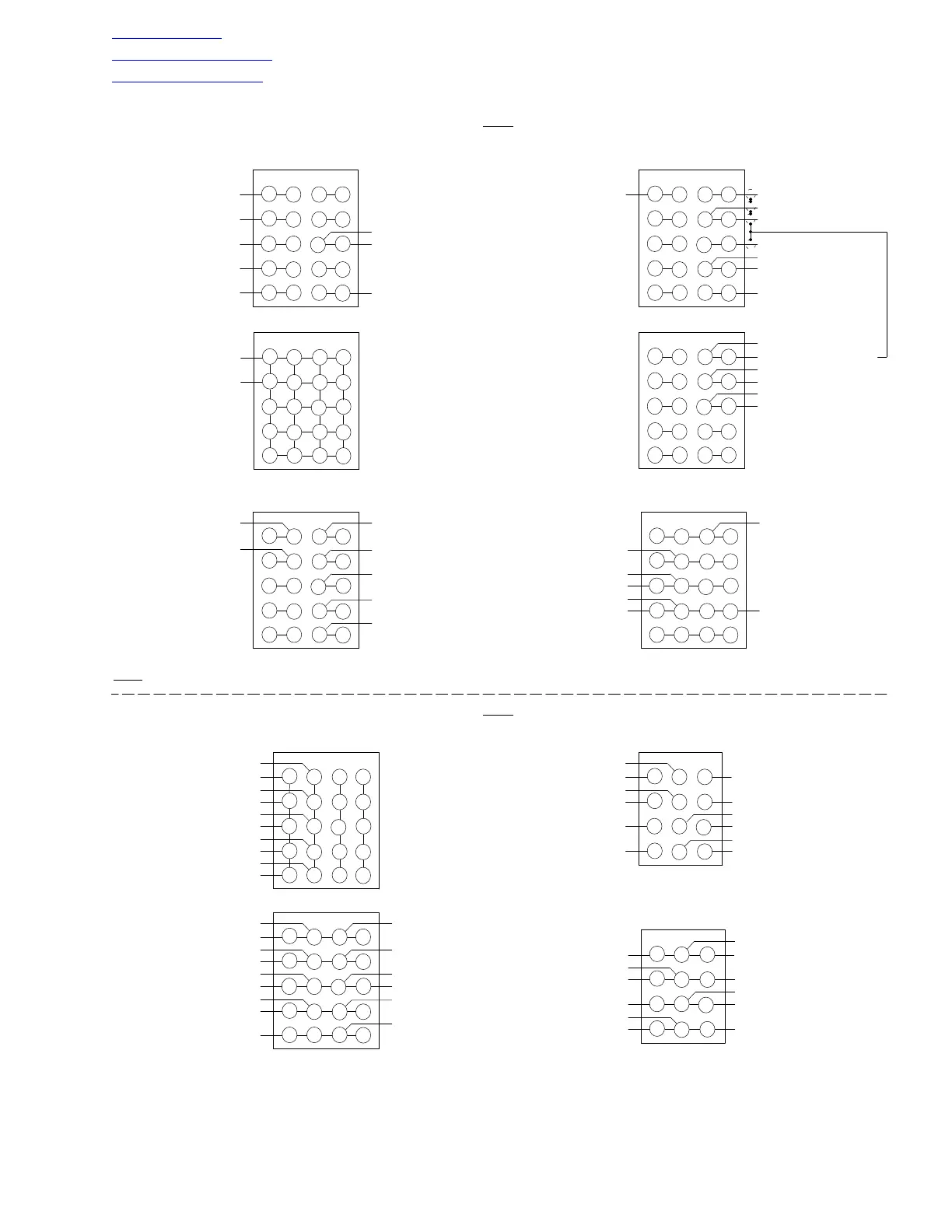

Figure 206. Console Wiring Diagram (369E; 384 − 508, 369FF; 076 − 095
500N; 001 − 044) (Sheet 5 of 7)
