CSP-HMI-3 MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 96 TOC ]
Page 906
Revision 8
96-05-10
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G96-0014A
AN960PD8
WASHER
MS51957-44
SCREW
TERMINAL BOARD
SUPPORT BRACKET
MS21075L08
NUTPLATE
0.38 IN. (9.652 MM)
369A2515-49
CLIP
1.62 IN.
(4.1148 CM)
3.25 IN.
(8.255 CM)
MS20426AD3
RIVET
369A2515-66
BRACKET

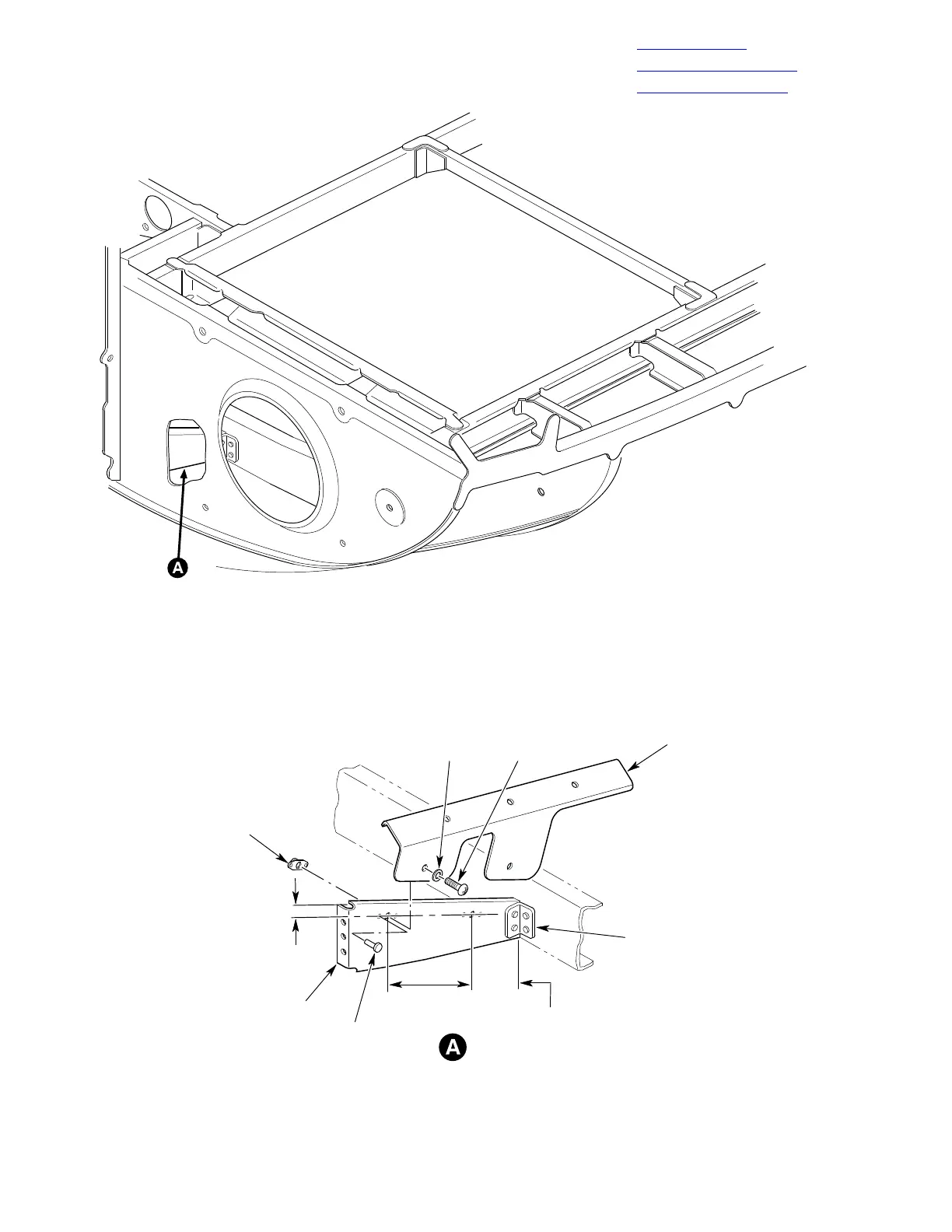

Figure 903. Terminal Board Support Bracket Installation
