6G96-084
GENERATOR
SWITCH
INTERPOLE COMP.
ARMATURE
SERIES
C+ B+ A+ D
E-
STARTER
GENERATOR
B
C
A
D
E
RF1 FILTER
SHUNT
BUS
EXT. PWR
J100
+
-
APU
LC
FWD
LC
GCU
BATT
LC
START
LC
ACFT
LC
MASTER
SWITCH
APU
OFF
BATT
BATTERY
START
SWITCH
KEY
SWITCH
BUS WIRING DIAGRAM
MARATHON CA1700 BATTERY
TEMPERATURE: 75°F (24°C)
INITIAL CHARGE CONDITION:
50% (DISCHARGE AT
17A. FOR 30 MIN.)
0%
CURRENT (AMPS)
240
CHARGE TIME (MINUTES)
0
BATTERY CHARGING DATA
INTERNAL WIRING DIAGRAM
STARTER/GENERATOR
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
0
10 20 30 40 50 60

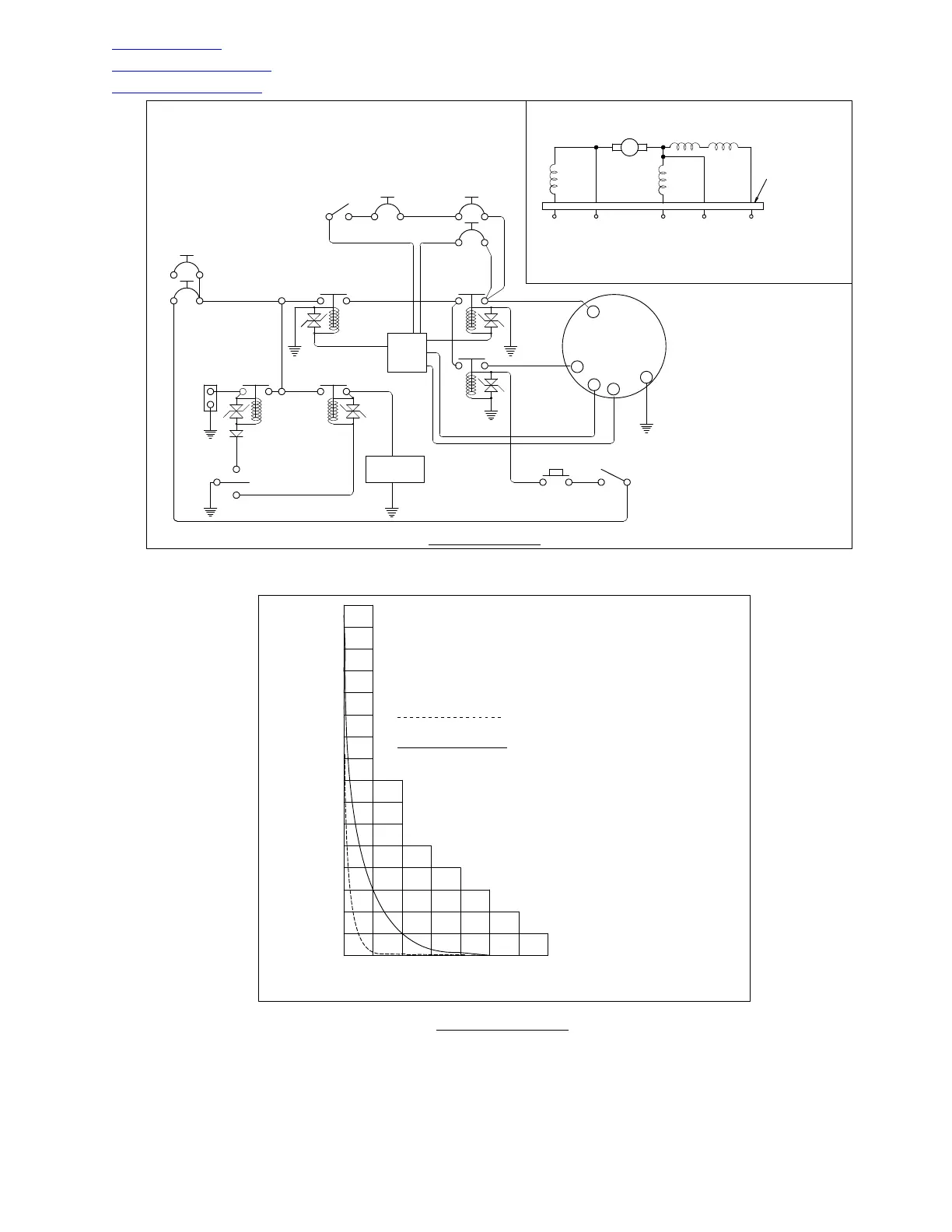

Figure 212. Bus Wiring Diagram and Battery Charging Data, 600N Helicopters
