LENS
(NOTE 1)
MOUNTING CLAMP
SCREWS
FLASHTUBE AND LAMP
BASE ASSEMBLY
MOUNTING BRACKET
FLASHTUBE AND LAMP
BASE ASSEMBLY
(NOTE 1)
MOUNTING CLAMP
WASHERS
SCREW
SCREW
LENS
(NOTE 2)
TAPE
(NOTE 3)
INDEX HOLE
LENS
CLAMP
LOWER STROBE LIGHT
LAMP BASE
LAMP CONNECTOR
LAMP
SPACER
LENS
RETAINER
SCREW
TAIL POSITION LIGHT
500N EXTERIOR LIGHTING SYSTEM
G96-4019B
NOTES:
1. FILL UNUSED HOLES WITH RTV 732 SEALANT (CM430).
2. DRILL 0.063 IN. (1.6002 MM) HOLE IN BOTTOM OF LENS
FOR FLUID DRAIN.
3. INSTALL TAPE (CM721).
UPPER STROBE LIGHT

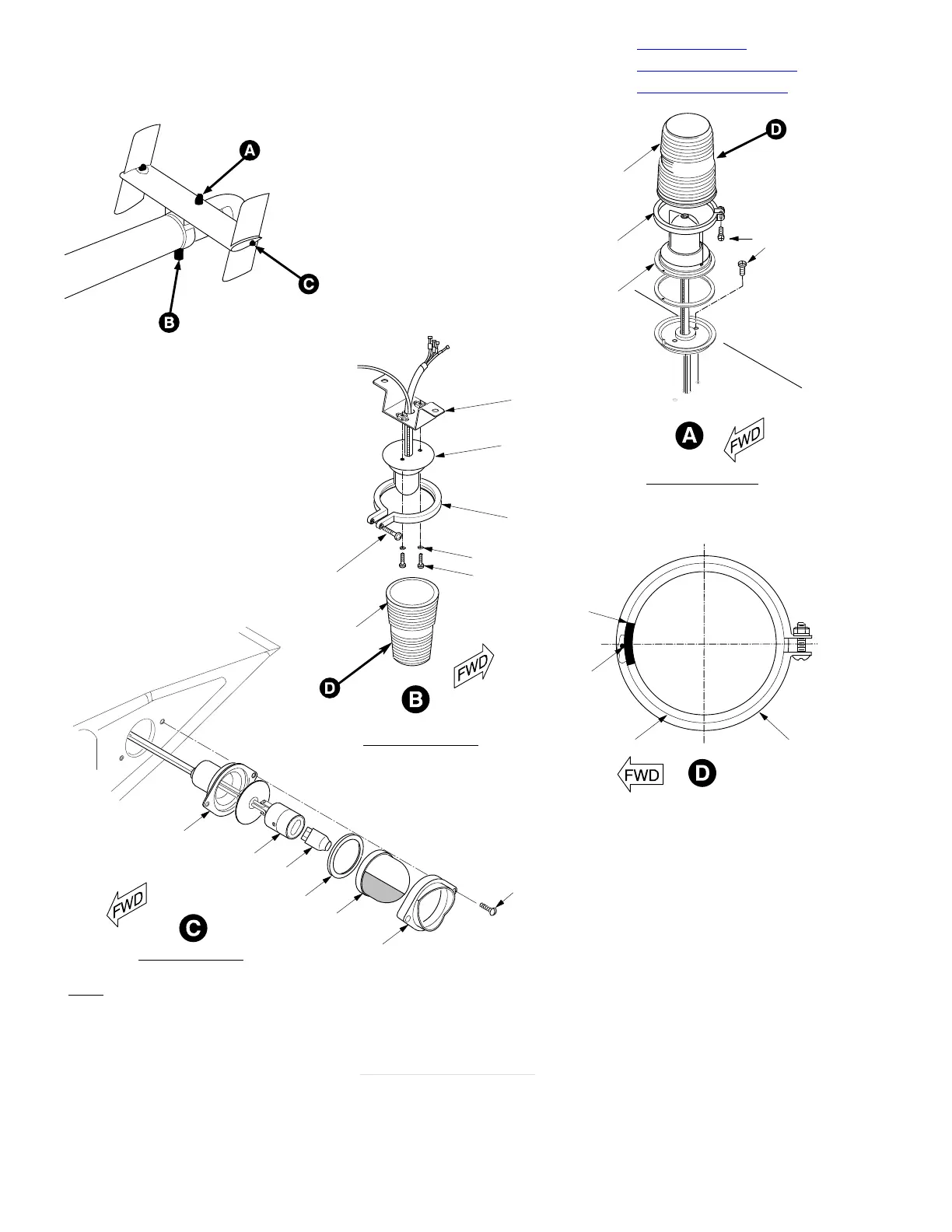

Figure 205. Anticollision Lights (Sheet 3 of 3)
