RELAY K307
VARISTOR
FLOAT LDG LT
SWITCH
PILOT'S SEAT-FRONT PANEL
STA. 137.50
FLOAT LDG LT
CIRCUIT BREAKER
DECAL
DOUBLER
C HELICOPTER
L
PANEL
COLLECTIVE STICK
GROMMET
INSTRUMENT PANEL LOWER LEFT SIDE
(NOTE 1)
DECAL
PLATE
FLOAT LDG LT
CIRCUIT BREAKER
PANEL
LAMP HOUSING
LAMP HOUSING
LAMP ASSEMBLY
(ENGINE BAY - LOWER FUSELAGE)
INSTRUMENT PANEL LOWER RIGHT SIDE
(NOTE 1)
PLATE

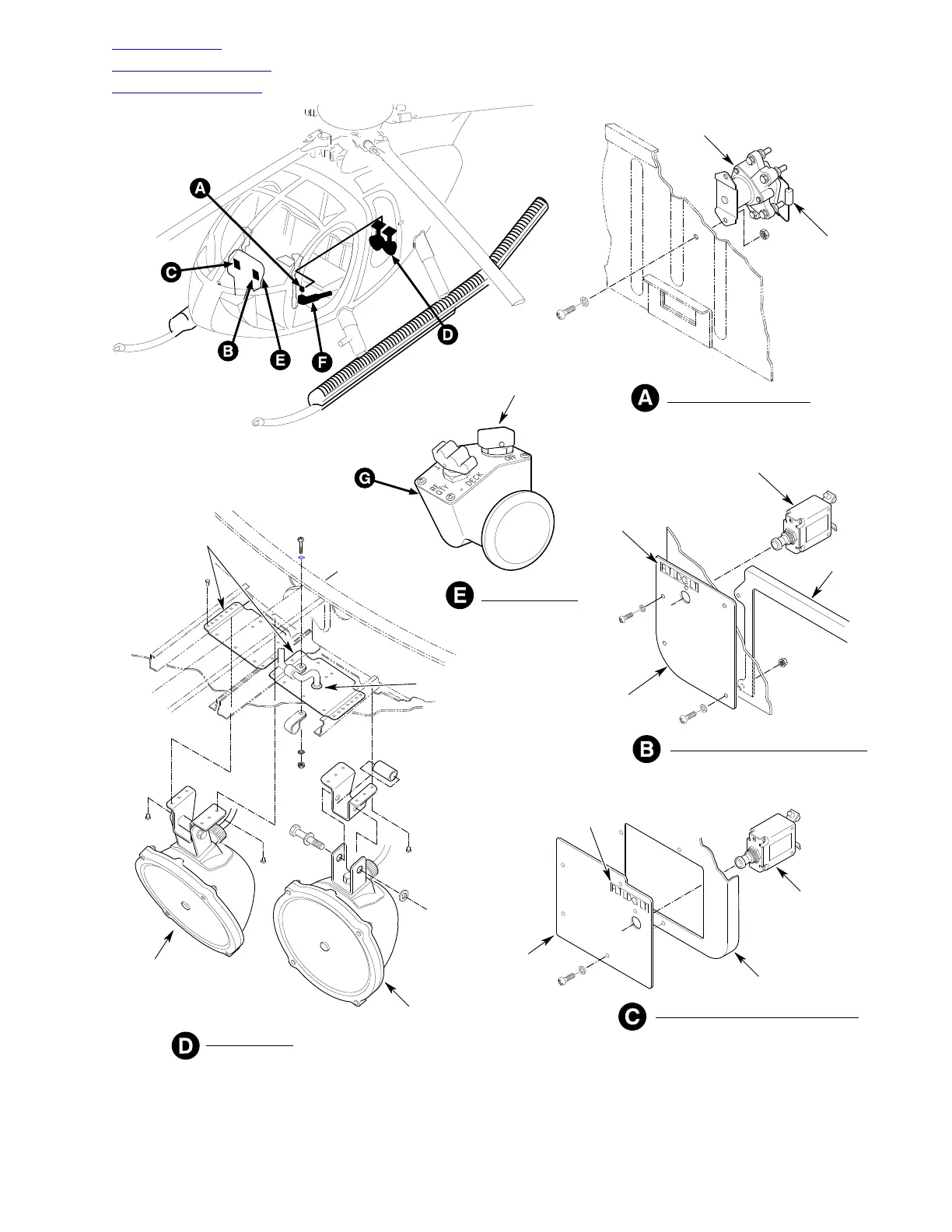

Figure 201. Float Lamp Assembly − Component Location (Sheet 1 of 2)
