MD Helicopters 369D - Page 636

CSP-HMI-3 MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 97 TOC ]
Page 104
Revision 12
97-02-00
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
2ICS−7A22
+27.5 VDC
POWER RETURN
PANEL LAMPS
LAMP GND
CHASSIS GND
MIC SHIELD RTN
MIC AUDIO
MIC AUDIO RTN
HEADSET AUDIO (LO) RTN
HEADSET AUDIO (HI)
SPARE
ICS TALK SWITCH
RADIO TALK SWITCH
TALK SWITCH COMMON
SPARE
SPARE
SPARE
SPARE
AUX RCVR AUDIO IN
DIR 2 RCVR AUDIO IN
DIR VOL CONT 2 AUDIO IN
NO. 5 XMIT AUDIO OUT
NO. 4 XMIT AUDIO OUT
NO. 3 XMIT AUDIO OUT
NO. 2 XMIT AUDIO OUT
NO. 5 XMIT CONTROL
NO. 4 XMIT CONTROL
NO. 3 XMIT CONTROL
NO. 2 XMIT CONTROL
AUDIO COMMON
DIR VOL CONT 1 AUDIO IN
INTERCOM AUDIO
NAV. 2 RCVR AUDIO IN
NAV. 1 RCVR AUDIO IN
NO. 2 RCVR AUDIO IN
NO. 1 RCVR AUDIO IN
NO. 3 RCVR AUDIO IN
NO. 4 RCVR AUDIO IN
NO. 5 RCVR AUDIO IN
NO. 1 XMIT AUDIO OUT
NO. 1 XMIT CONTROL
DIR 1 RCVR AUDIO IN
S
M
U
Y
H
D
C
A
XX
TT
W
E
B
K
AA
CC
JJ
NN
UU
FF
HH
P
F
L
R
BB
J
N
T
Z
RR
DD
WW
UU
SS
KK
PP
MM
EE
V
X
LL
CB533/ARC ”A” PILOT
5P1
E77−A
C D
TB7−10
2ICS−25A22
2ICS−102A22
2ICS−13A22
2ICS−15A22
2ICS−101A22
2ICS−17A22
2ICS−19A22
2ICS−6A22
2ICS−99A22N
2ICS−100A22
2ICS−24A22
2ICS−22A22
2ICS−21A22
2ICS−23A22
2ICS−103A22
2ICS−12A22
2ICS−16A22
2ICS−26B22
TBM300−3D
TBM300−3E
TBM300−2C
TBM300−2H
TBM300−1F
TBM300−1C
TBM300−1H
TBM300−3C
TBM300−2F
TBM300−8D
TBM300−8C
TBM300−8B
TBM300−8A
TBM300−3F
TBM300−2E
TBM300−1E
TBM300−7N
E77−C
E77−M
E77−J
E77−F
G97-0202-1
REF SHT
5
7.5A
CB112
ICS #1
2ICS−1A20
2ICS−2A20N
2ICS−3A22
2ICS−4A22N
2ICS−5A22N
2ICS−M1A22
2ICS−5H1A22
2ICS−27A22
+28 VDC BUS
WHT
BLU
BLU
WHT
C D
TB7−4
C D
TB7−2
A B
TB7−7
C
RED
GRN
BLK
WHT
(NOTE 1)
W
T
P109J
P
A B
TB5−1
2ICS−022D22
2ICS−032A22N
2ICS−020D22
R
TB5−2
E37
C
B
E77
VIO
ORN
BRN
ICS
XMIT
PILOT
CYCLIC
STICK
2ICS−020C22
2ICS−022C22
1
NOTES:
1. REFER TO SECTION 97-01-00 FOR APPLICABLE HEADSET ADAPTER CONNECTION.
2. QUANTITY OF COMMUNICATION CONTROLLERS INSTALLED ARE A CUSTOMER
OPTION, TERMINATIONS MAY DIFFER.
3. OPTIONAL AVIONICS EQUIPMENT NOT PART OF BASIC SHIP WIRING. ACTUAL
TERMINATIONS MAY DIFFER, REFER TO APPROPRIATE SECTION OF MANUAL FOR
ELECTRICAL WIRING INFORMATION.

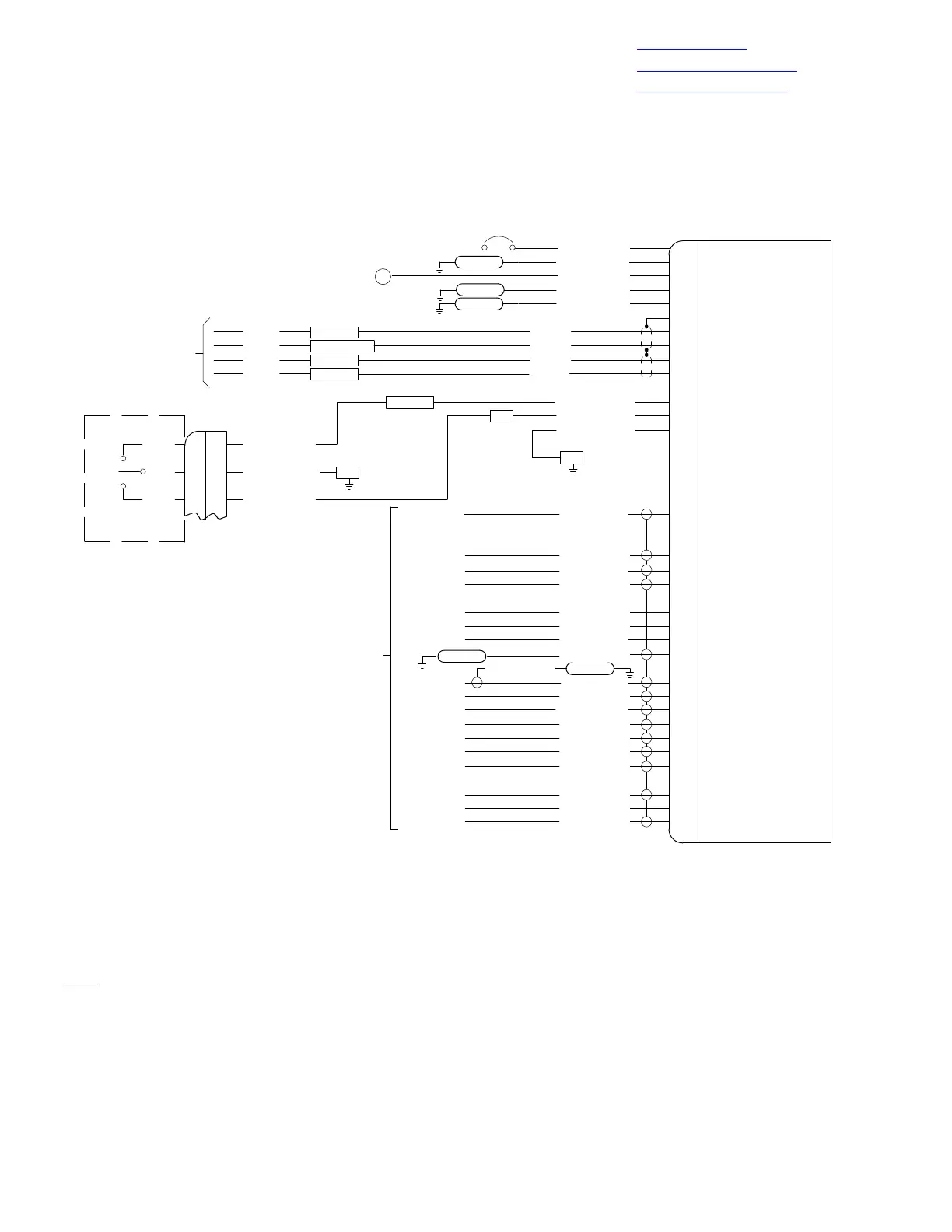

Figure 101. Wiring Diagram − Intercommunications System (Sheet 1 of 5)
