97-06-00
Page 205
Revision 12
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G97-0605
COMM 1 ADJUSTMENT
CONTROL (NOTE 3)
COMM
1
COMM
2
ICS
COMM 2 ADJUSTMENT
CONTROL (NOTE 3)
ICS ADJUSTMENT
CONTROL (NOTE 2)
SCREWS, WASHERS
(4 PLCS)
NOTE 1
INSTRUMENT CONSOLE
STRUCTURE
LOOKING INBOARD
TB501
(NOTE 4)
CE 500 HT-3G ICS AMPLIFIER
(CONTROL UNIT)
1
2
3
4
TB502
(NOTE 4)
TB6
(NOTE 4)
P509
LOOKING AFT
CONSOLE
HORIZONTAL
SUPPORT
NOTES:
1. STRUCTURAL ELECTRICAL BOND TO CASE OF UNIT IS REQUIRED (REF. CHAP 96).
2. AT REPLACEMENT OF CONTROL UNIT, ADJUSTMENT OF INTERPHONE MICROPHONE
AUDIO LEVEL IS REQUIRED.
3. AT REPLACEMENT OF CONTROL UNIT, ADJUSTMENT OF SIDETONE AUDIO LEVEL
FOR ASSOCIATED VHF COMM RADIO IS REQUIRED.

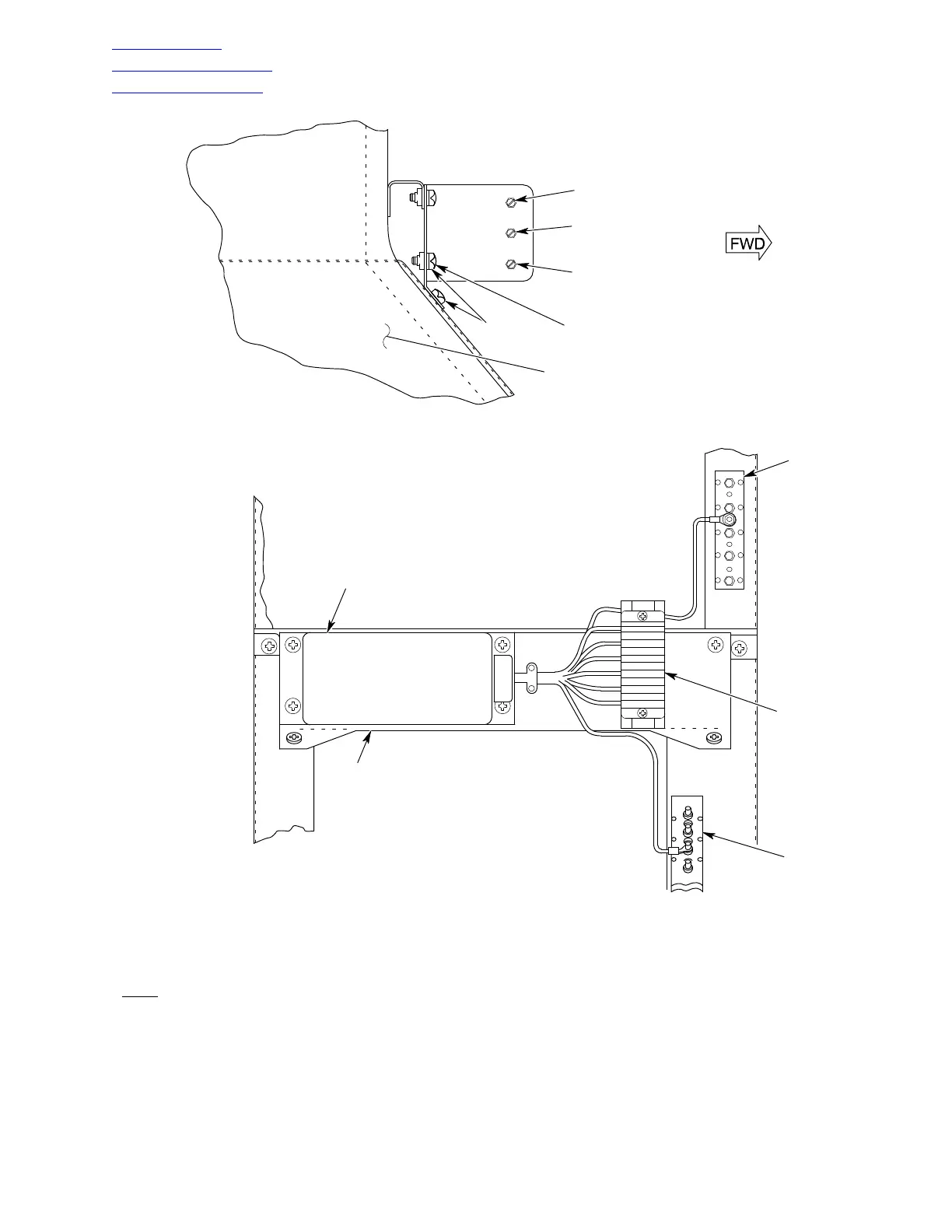

Figure 202. Adjustable Components − CE 500 HT−3G ICS Control Unit
