G95-0014
TO PIN D OF CONNECTOR
SENDING UNIT BASE
RC07GF511J RESISTOR
RNF100 SLEEVE
M22759/34-22-9
WIRE
CUT EXISTING SLEEVE TO
PASS RESISTOR THOUGH
DRILL 0.125 IN.
(3.175 MM) HOLE
(NOTE 3)
369A4245-3 BRACKET
SOLDER JOINT
369A4245-3 BRACKET
AND RESISTOR LEAD
(NOTES 1, 2)
NOTES:
1. USE ACID CORE SOLDER, WASH THOROUGHLY WITH BICARBONATE OF
SODA AND DISTILLED WATER AFTER SOLDERING.
2. SEAL INTERFACE OF BARE WIRE TO INSULATION WITH PR1221 SEALANT.
3. SEAL HOLE AT BOTH SIDES OF BASE USING PR1221 SEALANT AFTER
RESISTOR LEADS ARE SOLDERED TO BRACKET AND PIN D OF CONNECTOR.

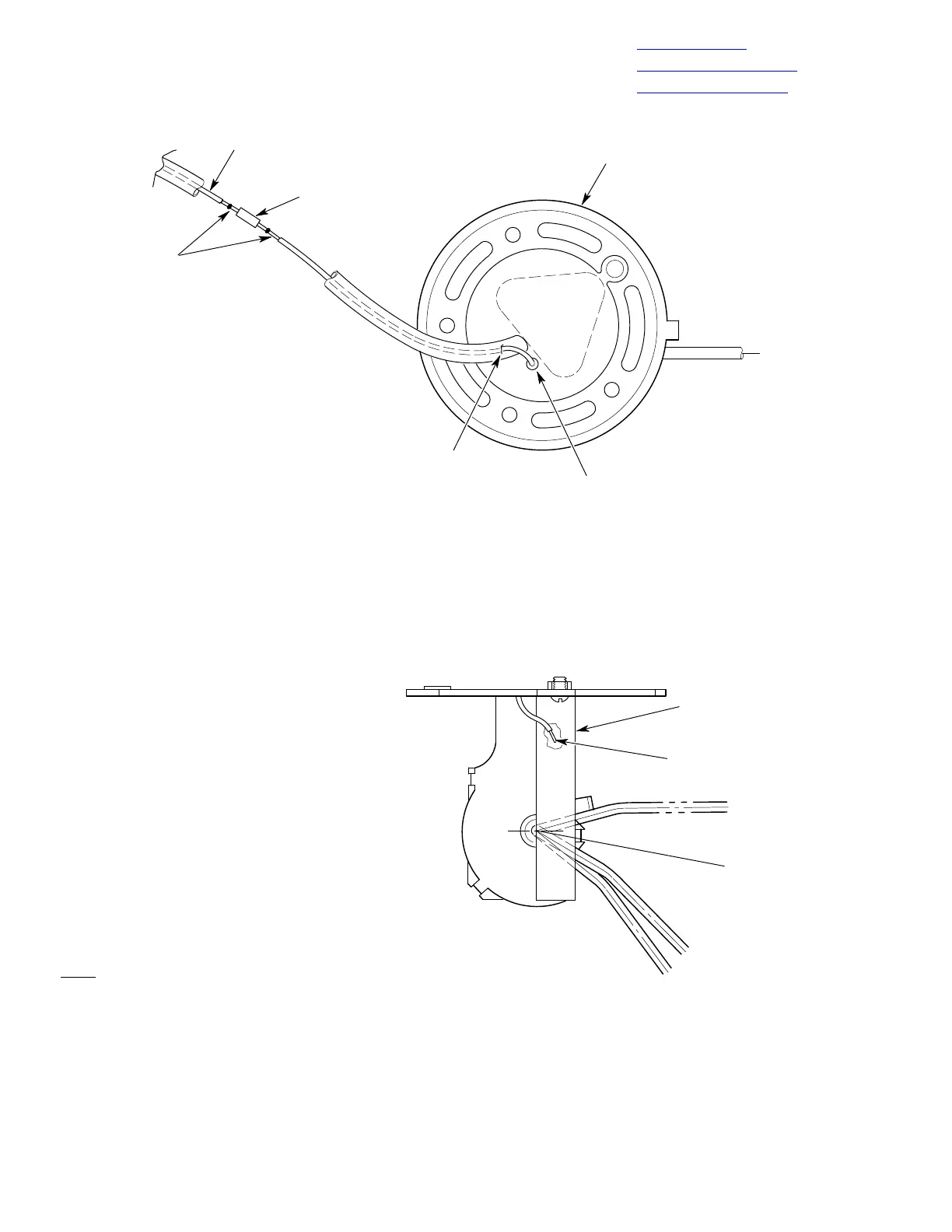

Figure 804. Fuel Quantity Sender Modification − 369A4245 Series Units (369D S/N 0001 − 1116)
