9. Maintenance
9.22 Axle Breathers
The axle breathers, Figure 9.27 should be checked regularly; refer to the Servicing Schedule. If
blocked the breather should be cleaned or replaced.

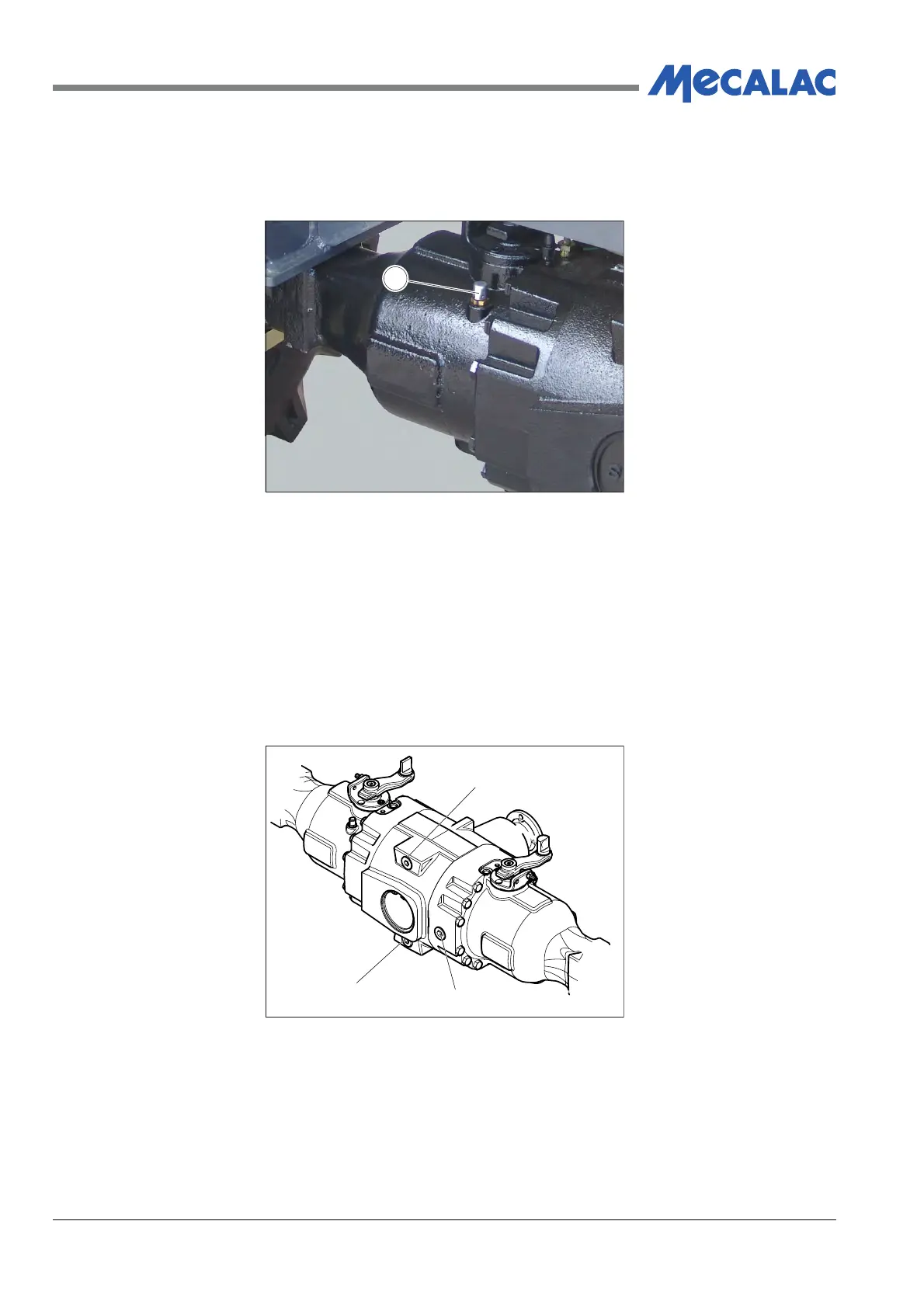

Figure 9.27
1. Axle Breather
9.23 Front Axle
For servicing intervals refer to the Servicing Schedule in this book.
(1) To Check the Oil Level
Figure 9.28 illustrates the position of the level, fill and drain plugs.
Figure 9.28. - Front Axle
1. Fill Plug
2. Level Plug
3. Drain Plug
