Page 5 - 4 TA3H, TA3SH & TA3.5SH
5. Transportation

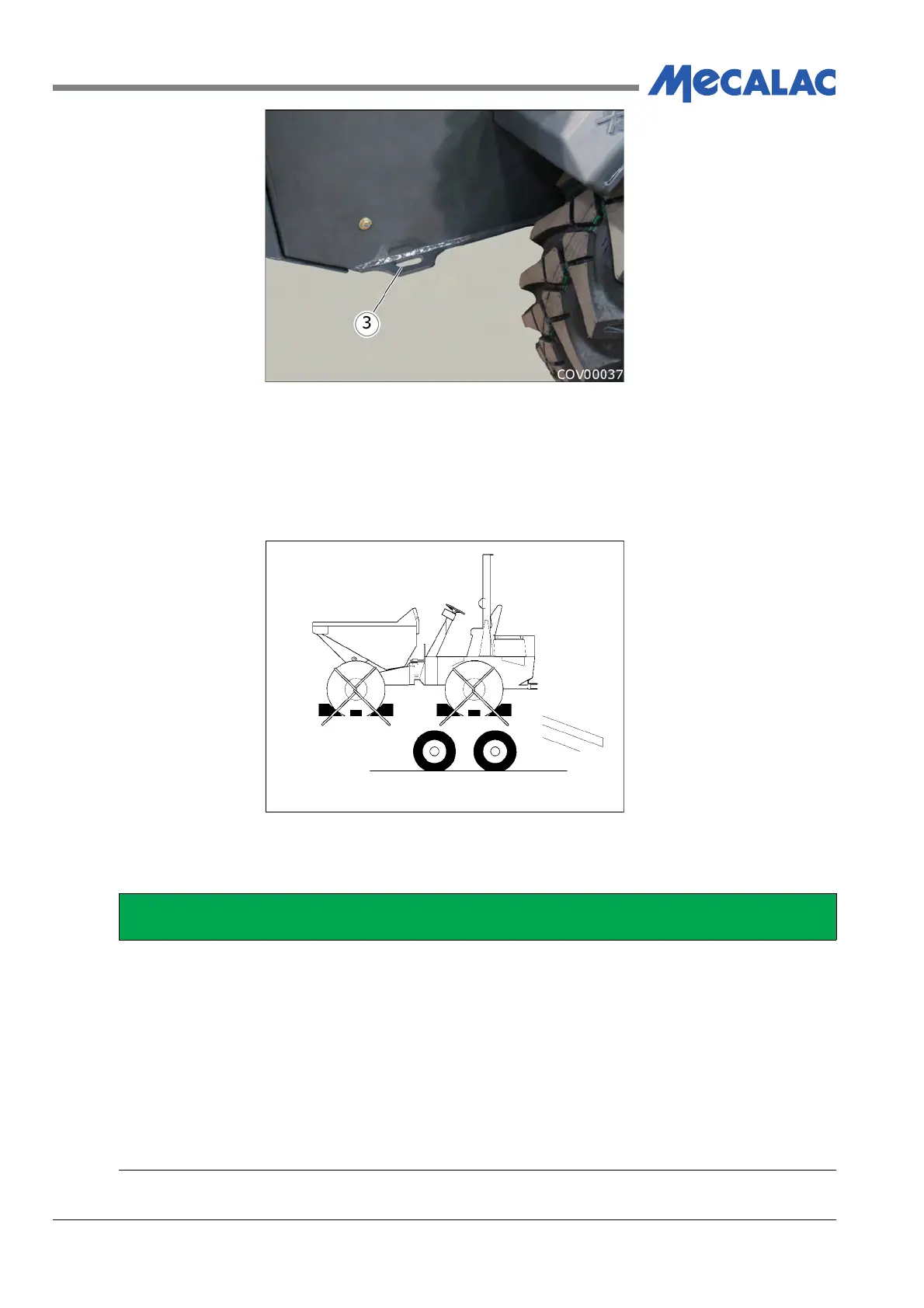

Figure 5.5. - Rear Tie Down Point (3)
5.6 Tie Down
When the machine has been put in an acceptable position on the lorry or trailer it must be
secured in place.
Figure 5.6 - Alternative Tie Down Method
PROCEDURE
1 Place the machine in a suitable position.
2 Apply the parking brake.
3 Fit the articulation lock.
4 Lower ROPS to transport position.
5 Nail blocks/chocks at the front, rear and outside of each wheel.
6 Tie down using tie down points provided with suitable chains straps or ropes. Ropes may
also be placed over wheels as shown in Figure 5.6.
7 Loose ends of chains, straps or ropes must be secured to the lorry/trailer bed.
COV00050
