Page 4 - 12 TA3H, TA3SH & TA3.5SH
4. Description
4.11 Control Panel and Switch Functions

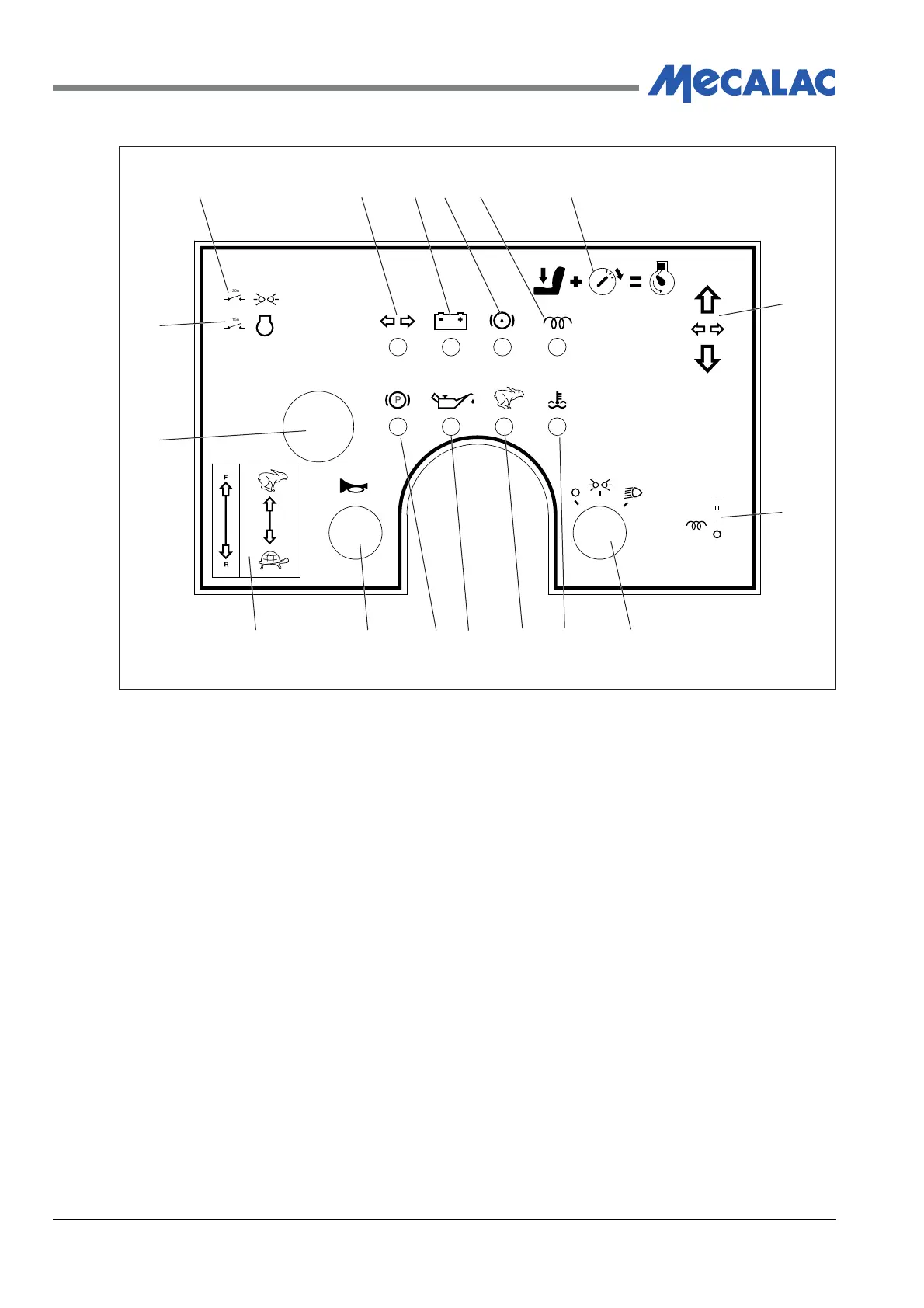

Figure 4.9 - Control Panel
1. 30A Circuit Breaker - Lighting (When Fitted)
2. Warning Light - Direction Indicators (When Fitted)
3. Warning Light - Battery Charge
4. Warning Light - Brake Fluid Level LOW
5. Warning Light - Engine Cold Start
6. Instruction - Start Inhibitors
7. Instruction - Direction Indicators (When Fitted)
8. Instruction - Engine Start Switch
9. Switch - Lighting -(When Fitted)
10. Warning Light - Engine Coolant Temperature HIGH
11. Warning Light - High Speed Selected
12. Warning Light - Engine Oil Pressure LOW
13. Warning Light - Parking Brake ON
14. Horn Button
15. Instruction - Forward/Reverse and Low/High Speed
16. Switch - Hazard Warning Lights
17 15A Circuit Breaker - Engine Electrical System
15A
30A
P
123456
7
8
9101112131415
16
17
COV00034
