TA3H, TA3SH & TA3.5SH Page 9 - 3
9. Maintenance

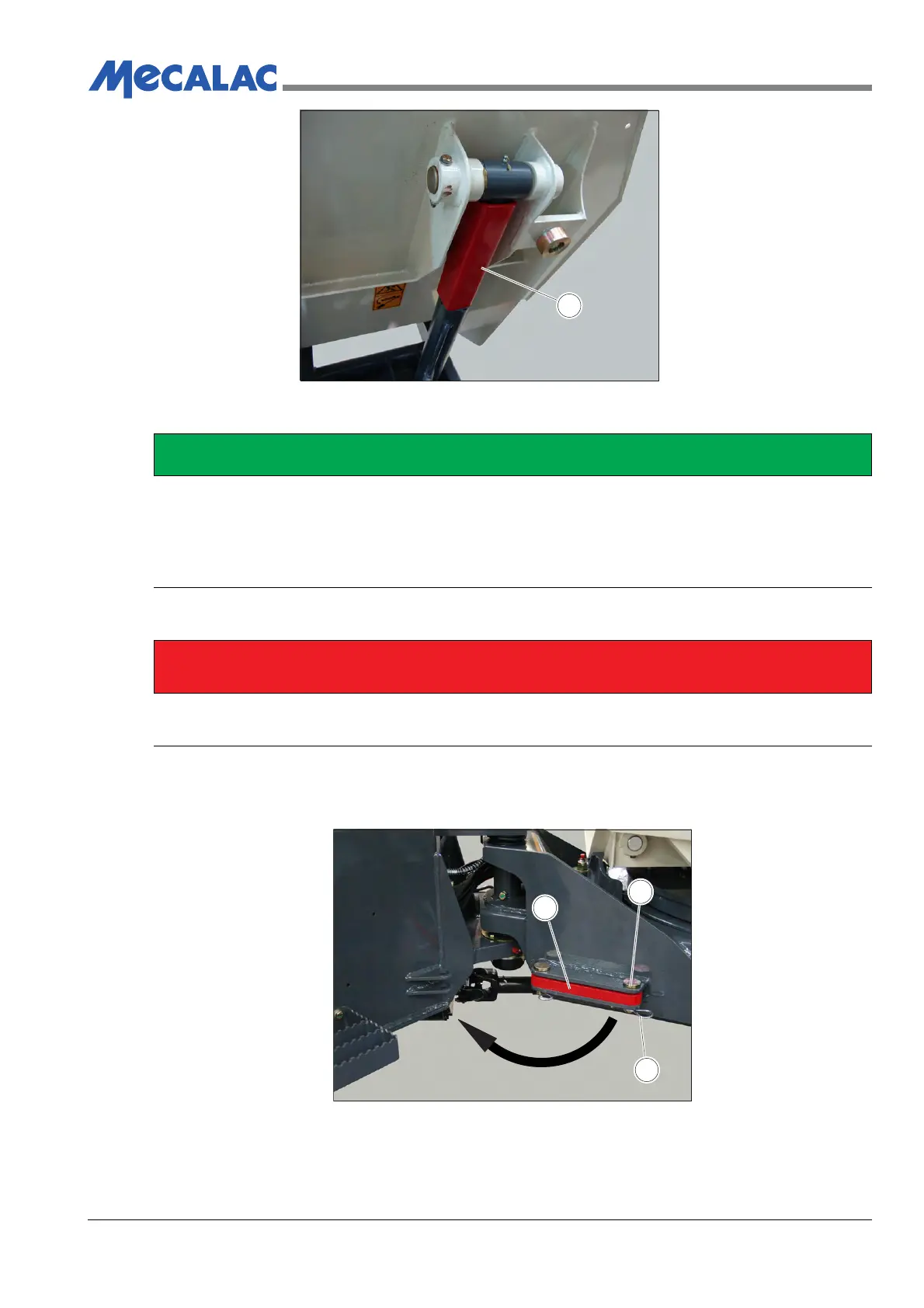

Figure 9.1 - Skip Support
9.7 Articulation Lock
(1) To Fit the Articulation Lock
Refer to Figure 9.2
Figure 9.2 - Articulation Lock
1. Lock Bar
2. Pin
3. Grip Clip
PROCEDURE
1. Fully raise the skip.
2. Remove the support (1) from its storage position and place over the piston rod of the ram.
3. Fit the pin to the support and secure with the grip clip.
4. Carefully lower the skip until the weight is resting on the support.
bDANGER
The articulation lock must be fitted before working in the area of the centre pivot, failure to fit the
lock could cause a pinch point or trap that will result in death or serious injury.
1
1
2
3
COV0004
