9. Maintenance
9.10 Battery Removal
Set battery isolator to OFF position. It will be necessary to remove the floor plate to gain access
to the battery - refer to para. 9-4.

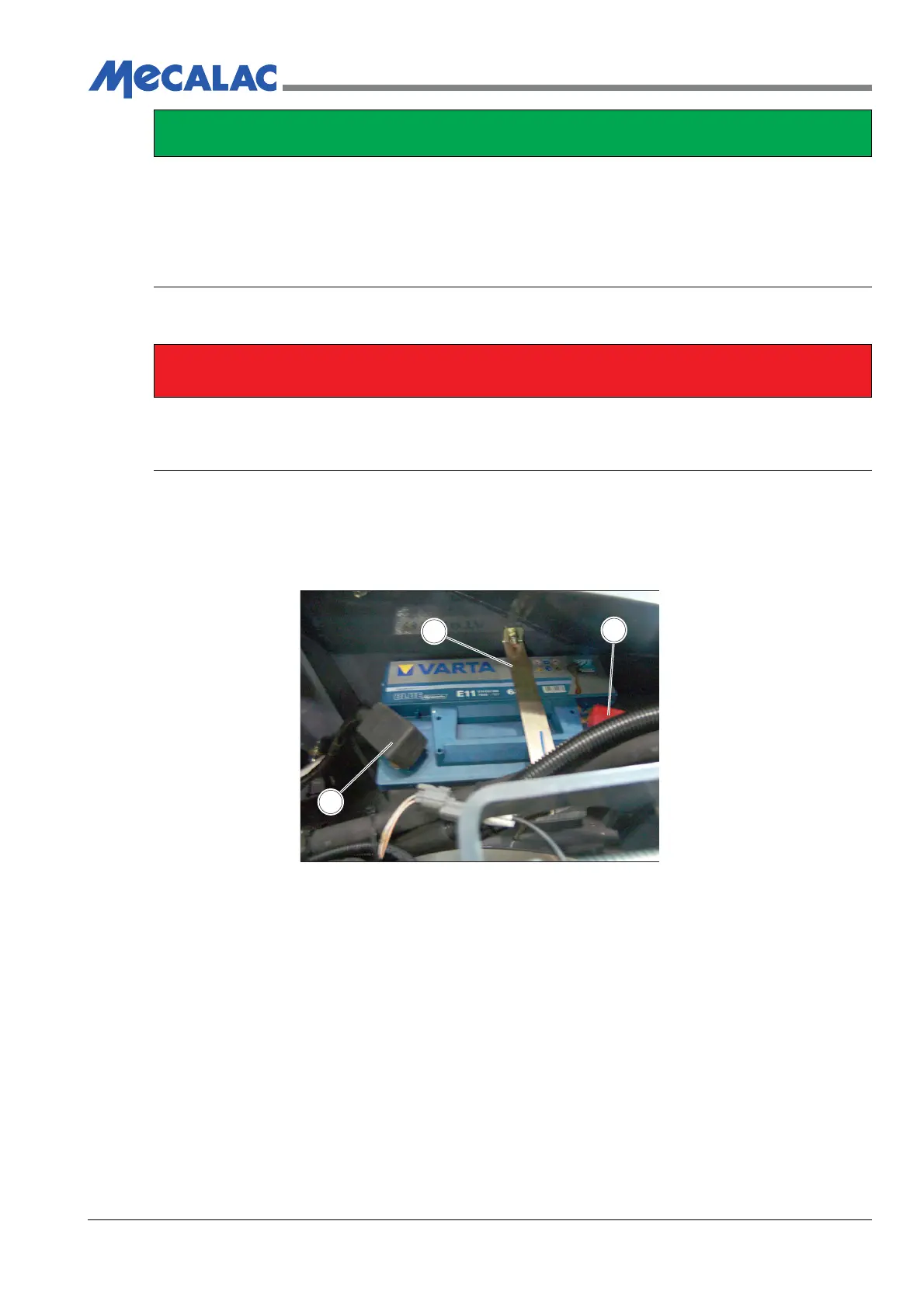

To remove the battery refer to Figure 9.4.
Figure 9.4 Battery Removal
1. Battery Clamp
2. Positive (+ve) Terminal
3. Negative (-ve) Terminal
PROCEDURE
1. Open the engine cover.
2. Set battery isolator to OFF position.
3. Undo the 7 bolts and washers securing the floor plate.
4. Lift the floor plate clear of the machine.
bDANGER
Battery Acid - Contact with battery acid can cause serious burns, blindness or even death.
Protective clothing, gloves and a face shield must be worn at all times when handling or working
on a battery.
