TA3H, TA3SH & TA3.5SH Page 9 - 27
9. Maintenance
(4) To Change the Oil in the Transfer Box
9.25 Axle Bolts
The tightness of the axle bolts; Figure 9.25. must be checked every 800 hours or Annually which
ever comes first.
Figure 9.5. - Axle Location Bolts
9.26 Centre Pivot
(1) Pivot Lock Screws

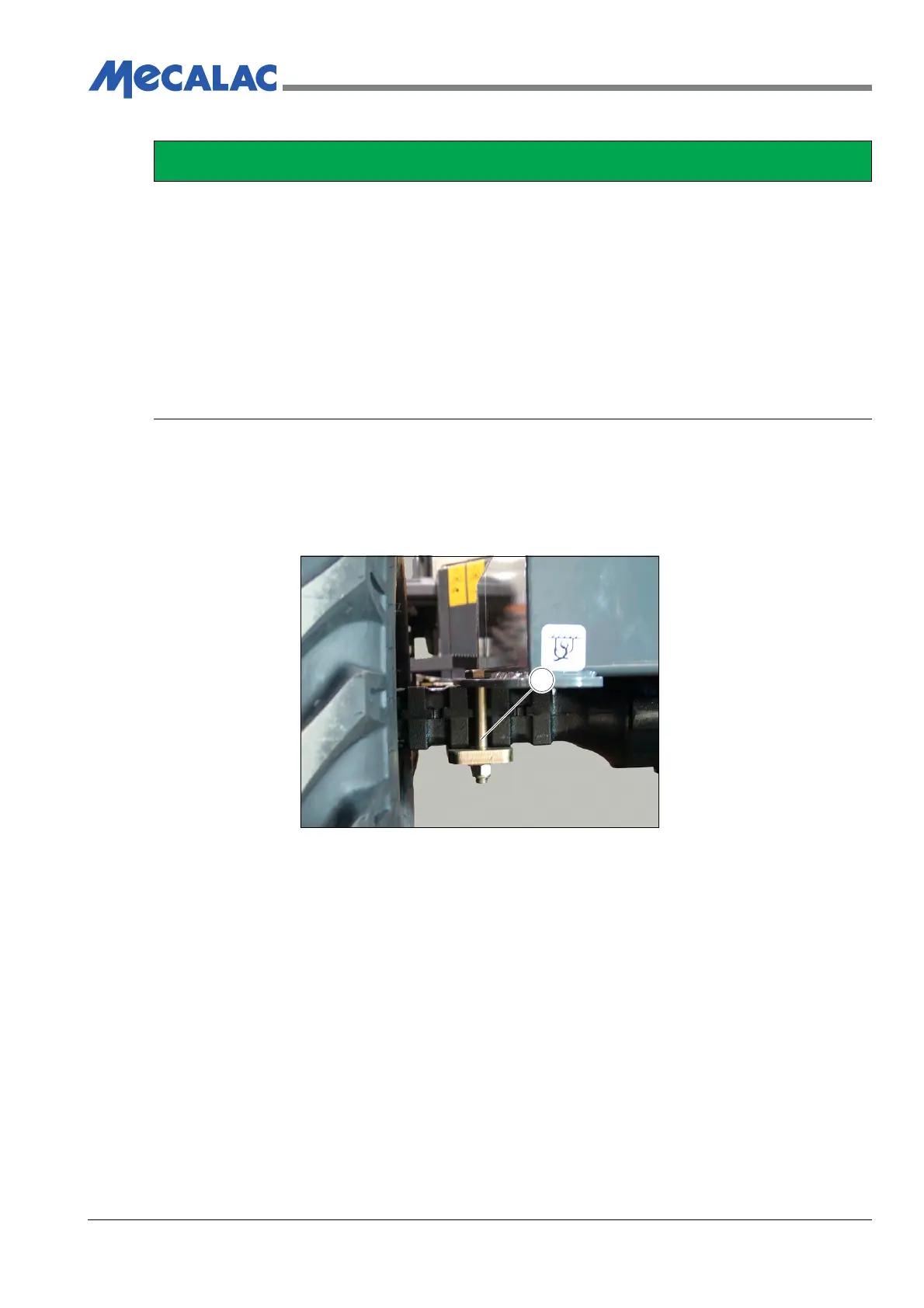

The pivot pin locking screws, Figure 9.26 (1); should be checked periodically and if necessary
re-tightened to a torque of 45Nm (33 lbf/ft).
PROCEDURE
1. Make sure the oil is warm not hot.
2. Park the machine on firm level ground, stop the engine and remove the start key.
3. Clean any dirt from around the drain plug -5.
4. Place a suitable container under the drain plug.
5. Remove drain plug and allow the oil to drain.
6. Remove the filler/level plug to aid draining.
7. Refit and tighten drain plug.
8. Add the correct grade of oil through the filler hole until it begins to discharge from the hole.
9. Refit filler level plug and tighten.
1
COV0005
