9. Maintenance
• Always remove flaking paint from around the area being maintained. Inspect the inside of new
tanks for debris etc.
• Never fit new hoses if both ends of the hose have not been protected with plastic caps.
• Never fit new valves, pumps, motors, filters etc. if all the ports have not been protected with
plastic plugs.
• Never use dirty containers for oil storage.
• Never use dirty containers or funnels for filling hydraulic system.
• Never store hydraulic components on the floor, in areas where welding or grinding is done, in
a dirty environment etc.
A description of the hydraulics, and circuit diagrams are contained in Section 4 of this manual.
The hydraulic system components are maintenance free other than the suction strainer and
return line filter.
9.15 Hydraulic Tank

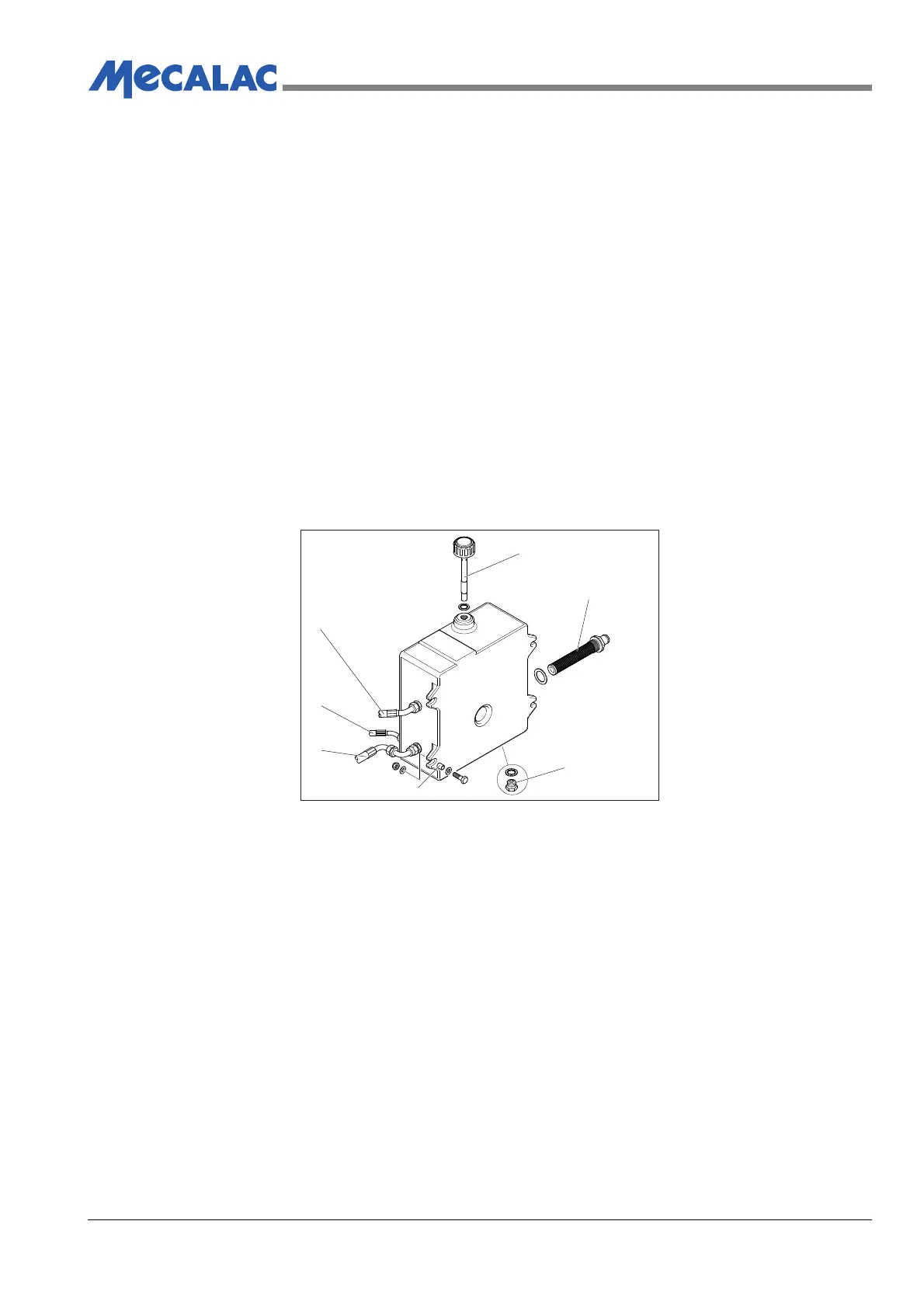

Figure 9.13 Hydraulic Tank
1. Breather/Dipstick
2. Suction Filter
3. Drain Plug
4. Mounting Spacer (4 off)
5. Line from Return Filter
6. Line from Control Valve
7. Line from Transmission Pump
1
2
3
4
5
6
7
COV0008
