mecalac TA3SH - Start;Stop Switch; Direction Indicator Switch - When Fitted

Page 4 - 16 TA3H, TA3SH & TA3.5SH
4. Description
4.13 Start/Stop Switch
The Start/Stop Switch - Figure 4.11, is operated by a removable key. The switch has a protective
cover that must be fitted when the key is removed to prevent the ingress of damp and moisture.
.

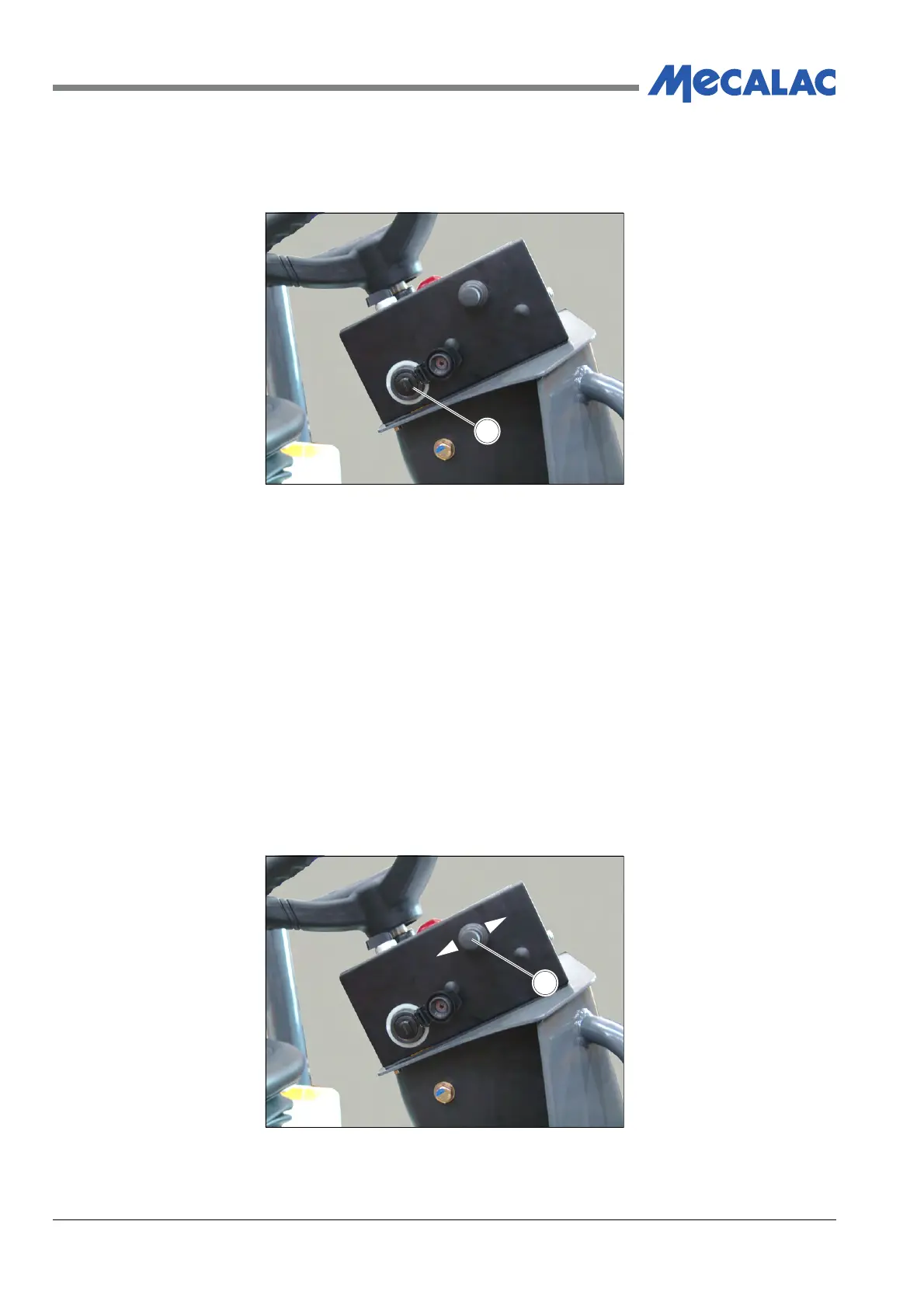

Figure 4.11 - Start/Stop Switch
1. Star/Stop Switch
The switch has 3 positions-
- 0 - Off
- 1 - Run
- 2 - Start
Once the engine has started the switch should return to the run position.
4.14 Direction Indicator Switch - When Fitted
This switch; Figure 4.12, is used to turn on the LEFT or RIGHT, front and rear indicator lights to
inform others of the operators intention to turn the machine to the Left or Right.
Moving indicator lever forwards, A will turn on the left hand indicator lights. Moving the lever
backwards, B will turn on the right hand indicator lights.
Figure 4.12 - Direction Indicator Switch
1. Direction Indicator Switch
1
COV0006
4
0
1
2
1
COV0006
5
A
B
