4. Description

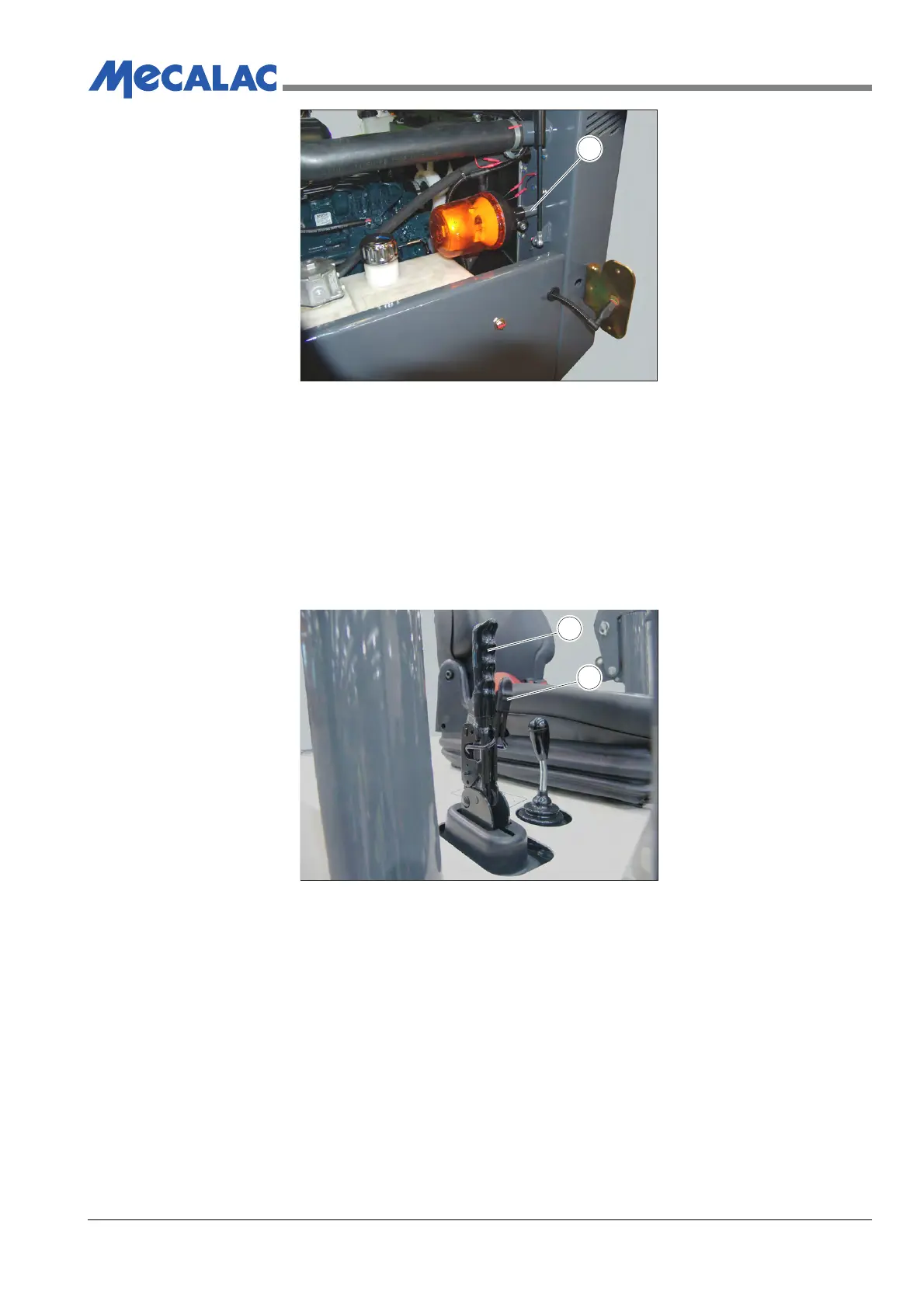

Figure 4.16 - Beacon Storage Position
1. Beacon Storage Mounting
4.17 Parking Brake
The parking brake lever - Figure 4.17, is located to the right of the drivers seat. With the lever (1)
vertical the brake is applied. A catch prevents the brake from being released accidentally. Before
the brake can be released it is necessary to lift the catch (2) to enable the lever to be moved to
the horizontal (released) position.
Figure 4.17. - Parking Brake
1. Parking Brake Lever
2. Release Catch
