Page 4 - 8 TA3H, TA3SH & TA3.5SH
4. Description
4.7 Transmission System

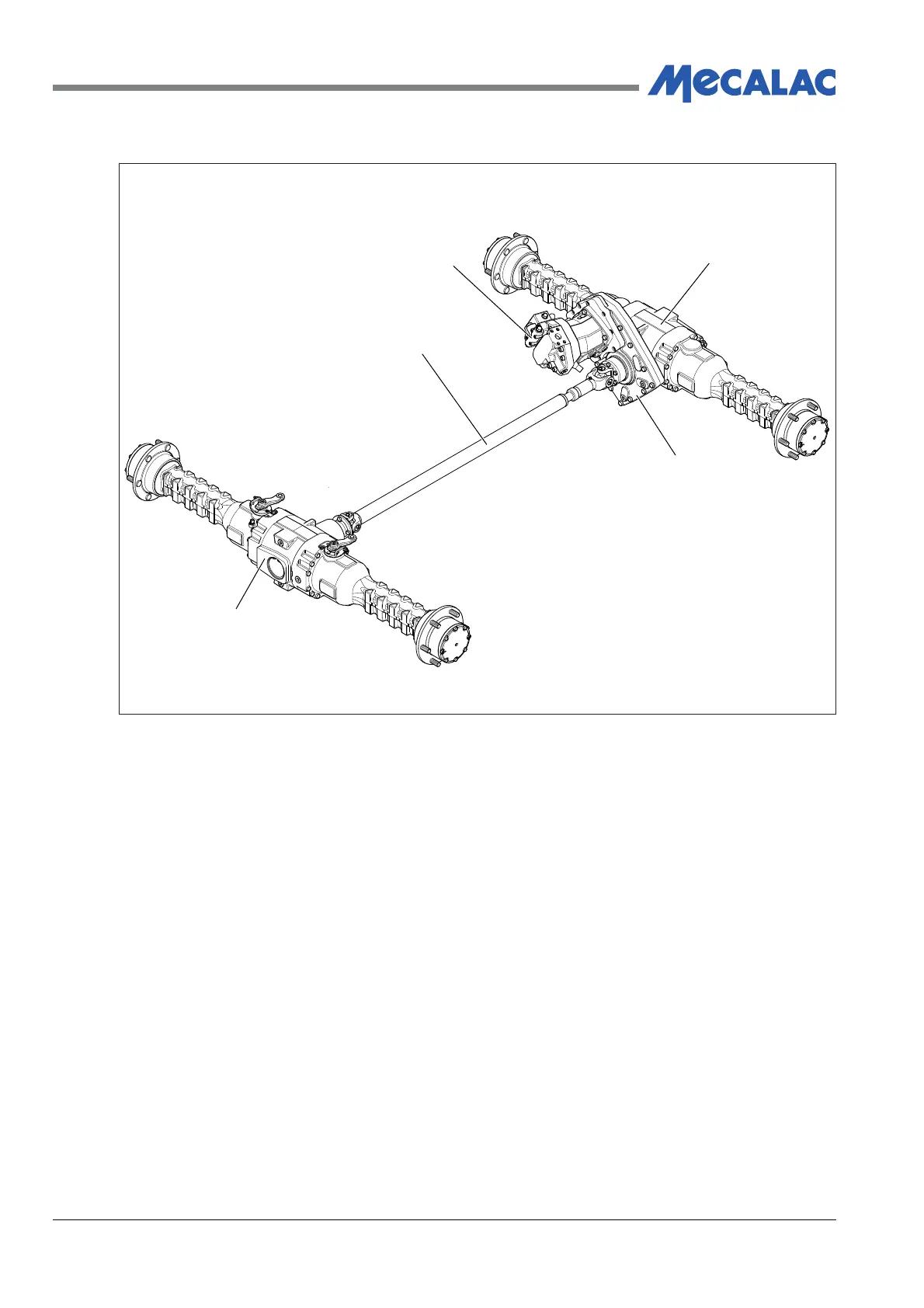

Figure 4.6 - Transmission System
1. Drive Shaft
2. Hydraulic Motor
3. Rear Axle
4. Transfer Box
5. Front Axle
A hydrostatic drive transmission system fitted. A piston type hydraulic pump attached to; and
driven by the engine drives an hydraulic motor mounted to the transfer box. The transfer box is
integral with the rear axle and transmits drive to both axles; the front axle is driven by a driveshaft
connecting the axle to the transfer box. The machine is in permanent 4 wheel drive.
To enable the dumper to be towed in an emergency there is provision to disconnect the relief
valves on the pump to permit oil to flow freely through the system.
1
2
3
4
5
COV00024
